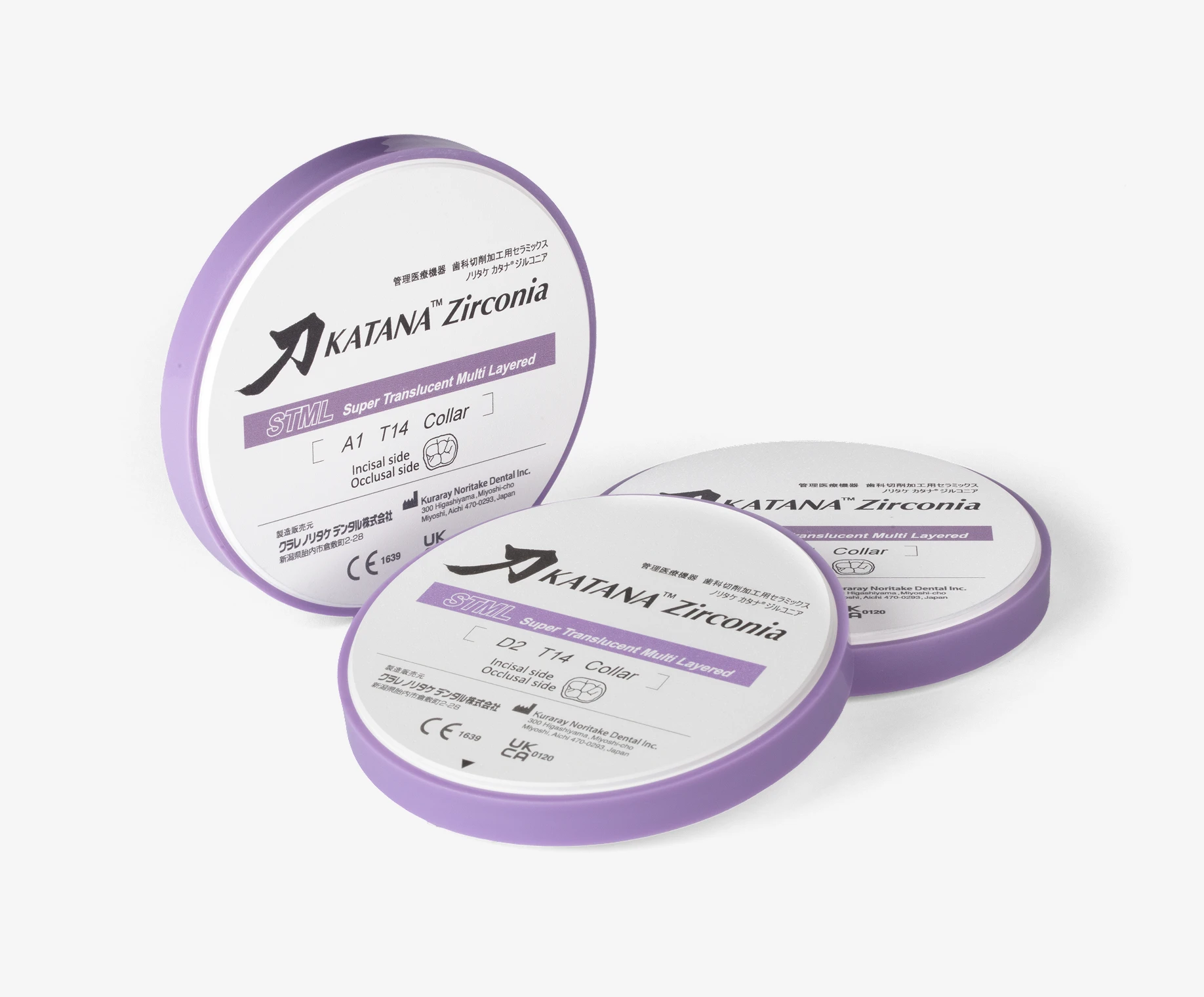

KATANA Zirconia STML discs

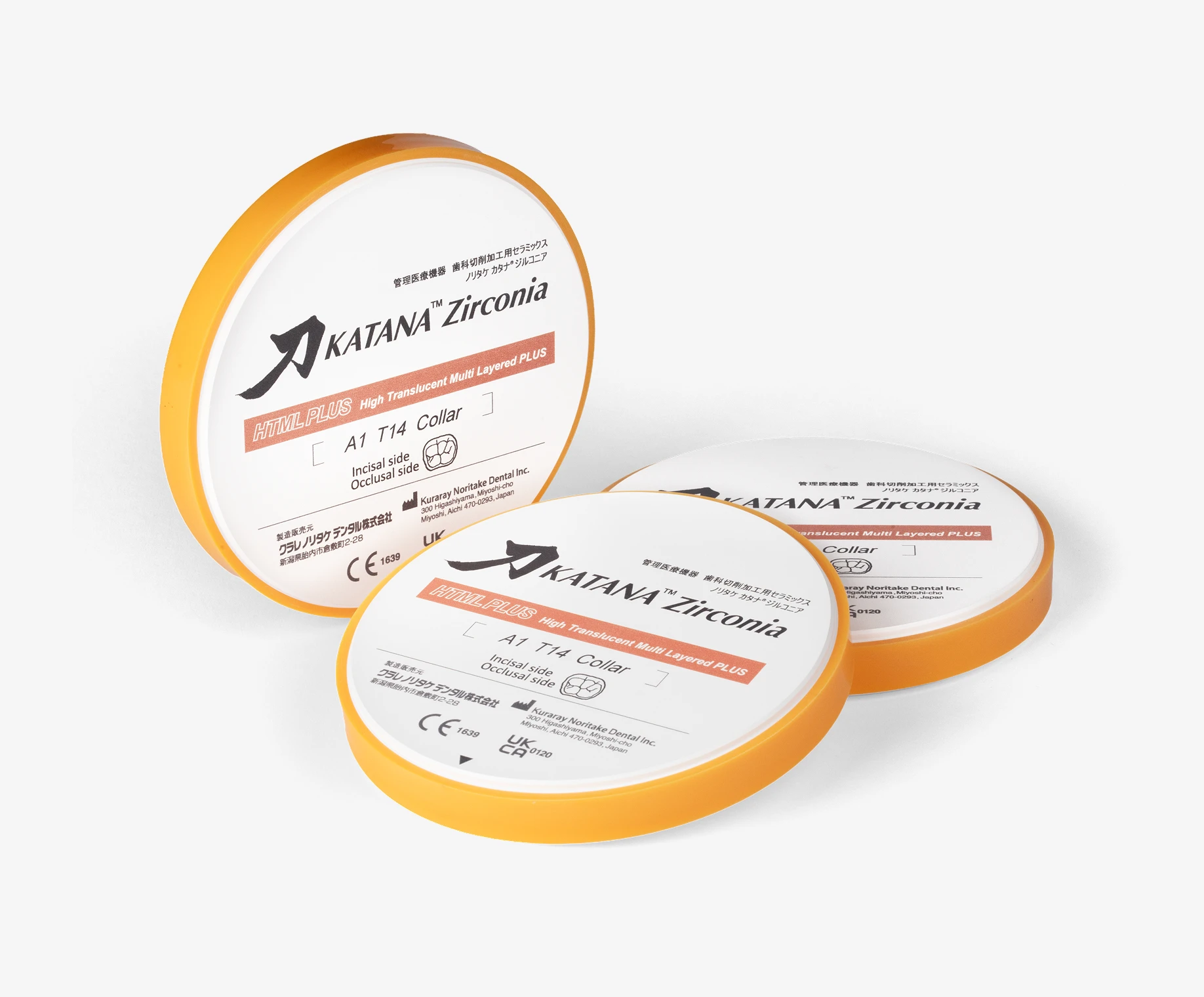

KATANA Zirconia HTML PLUS discs

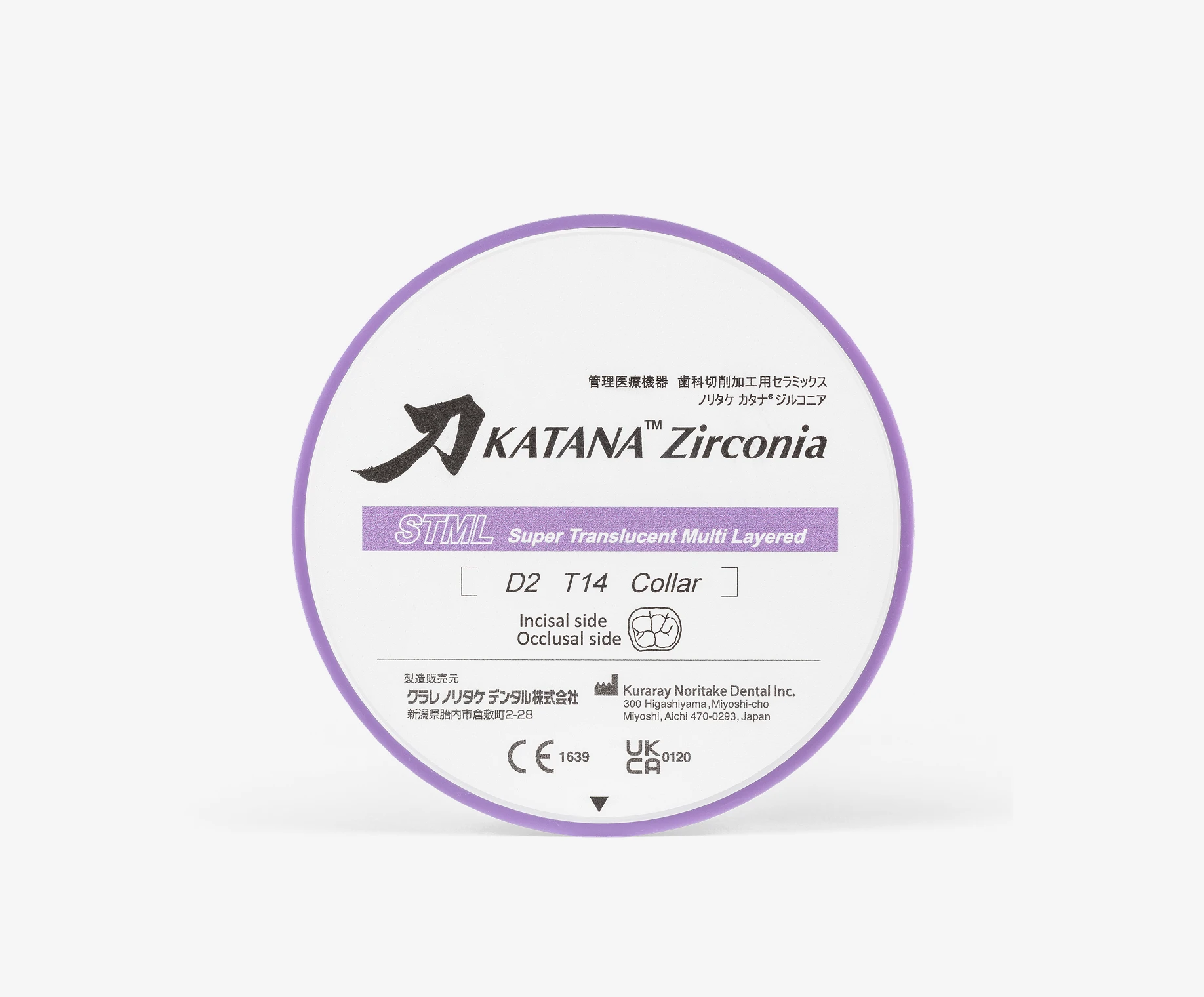

KATANA Zirconia STML disc label

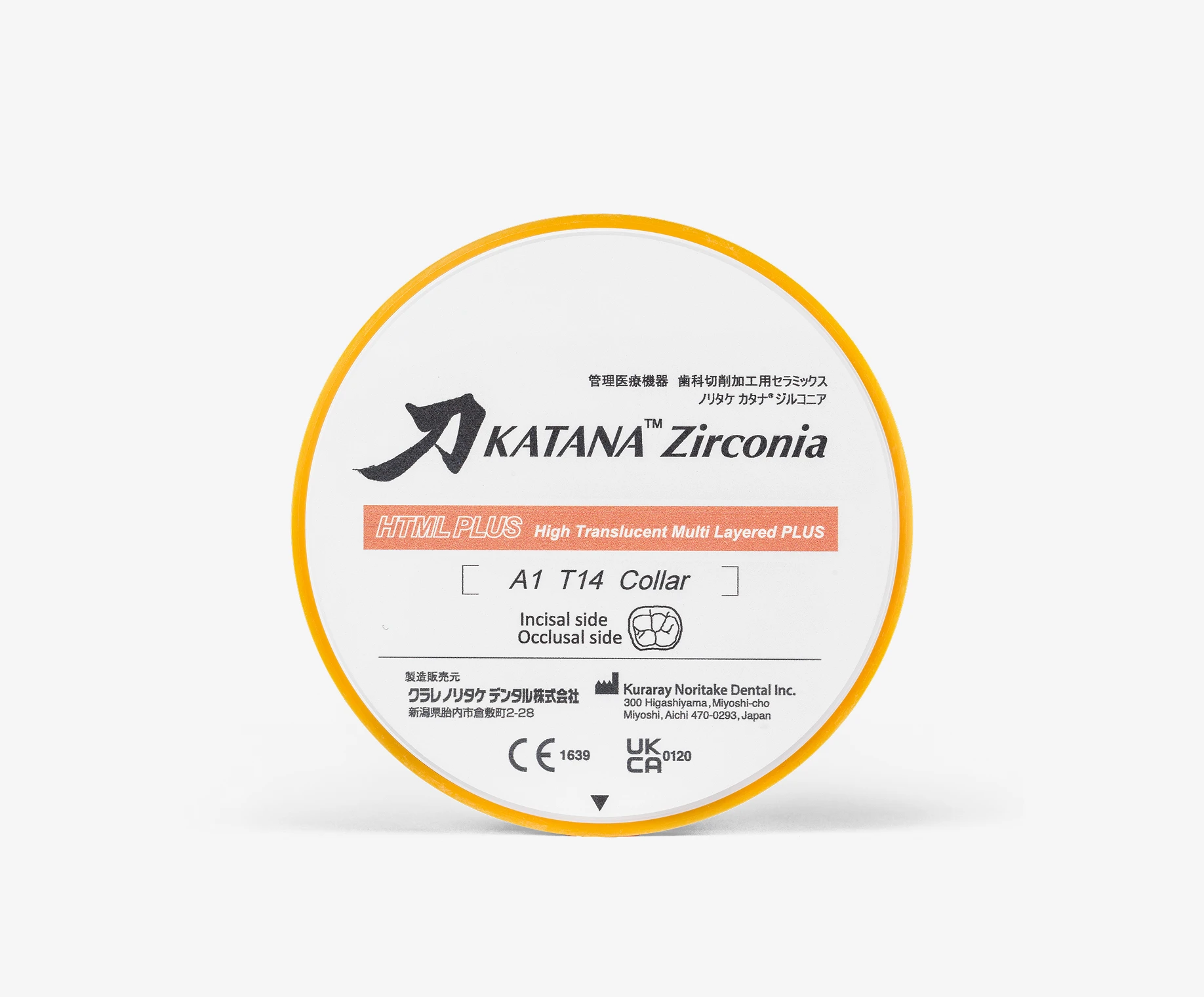

KATANA Zirconia HTML PLUS disc label

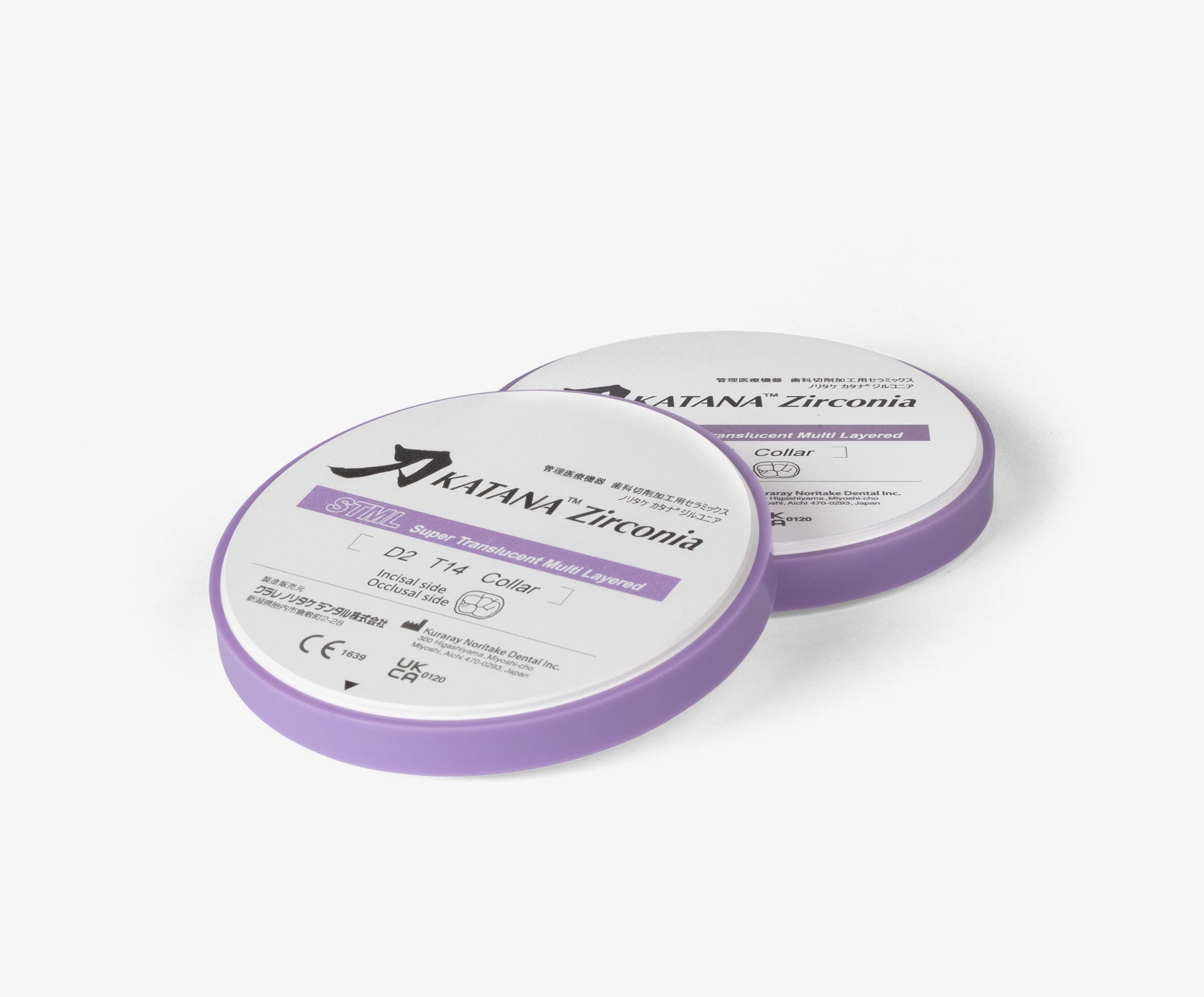

KATANA Zirconia STML discs stacked

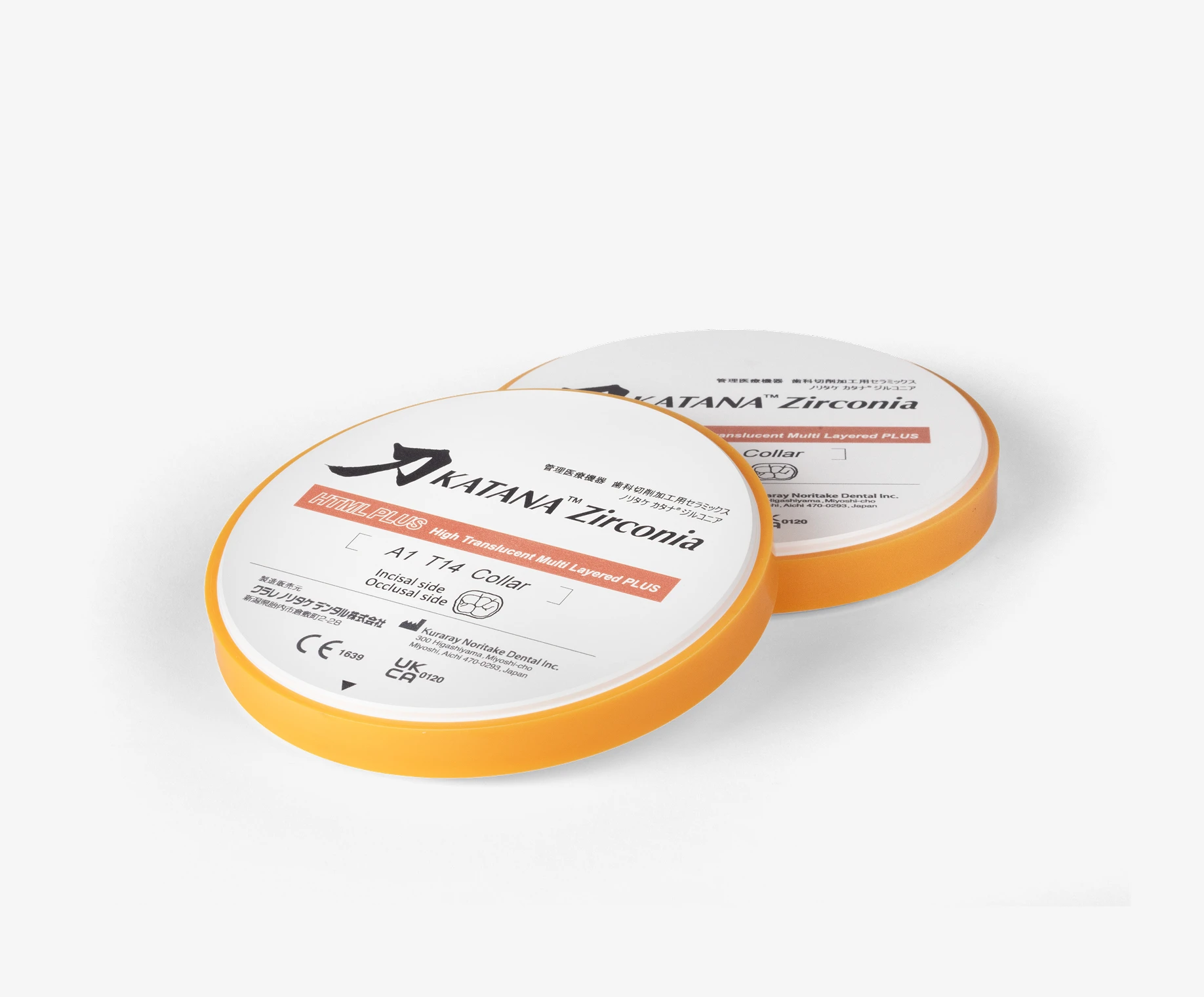

KATANA Zirconia HTML PLUS discs stacked

Katana HTML and STML Pucks

$139.00 – $219.00

KATANA™ Zirconia by Kuraray Noritake – choose STML (748 MPa, 49% translucency, sinters in as little as 20 min) for esthetic crowns, veneers and bridges up to 3 units, or HTML PLUS (1,150 MPa, 45% translucency) for long-span bridges and frameworks.

Select material and thickness, then shade.

Select options This product has multiple variants. The options may be chosen on the product page $139.00
Select options This product has multiple variants. The options may be chosen on the product page $179.00
Select options This product has multiple variants. The options may be chosen on the product page $219.00
Select options This product has multiple variants. The options may be chosen on the product page $139.00
Select options This product has multiple variants. The options may be chosen on the product page $179.00
Select options This product has multiple variants. The options may be chosen on the product page $219.00

Description

KATANA™ Zirconia STML & HTML PLUS by Kuraray Noritake

Two KATANA multi-layered zirconias, one disc format (98.5 mm in 14, 18 and 22 mm). Choose STML when esthetics lead – crowns, veneers, inlays/onlays and bridges up to 3 units. Choose HTML PLUS when strength leads – long-span bridges and frameworks, plus crowns and veneers.

Which KATANA is right for the case?

STML HTML PLUS
Best for Esthetic anterior & posterior crowns, veneers, inlays/onlays, bridges up to 3 units Long-span bridges, frameworks (classical and cut-back), crowns, veneers
Flexural strength 748 MPa 1,150 MPa (entire disc)
Translucency 49%, graded incisal to cervical 45%
Layers 4 – Enamel, Transition 1, Transition 2, Body Multi-layer gradient in translucency and chroma
Sintering As little as 20 min in compatible chairside furnaces; standard and fast lab cycles Standard 7 hr · 90 min · 54 min (single units and up to 3-unit bridges)
Minimum thickness Veneer 0.4 mm · Anterior crown 0.4 mm · Inlay/onlay 0.5 mm · Posterior crown 0.5 mm Veneer 0.4 mm · Anterior crown 0.4 mm · Posterior crown 0.5 mm · 2–3 unit bridge 0.4–0.5 mm
Connector size Anterior bridge 7 mm² · Anterior 4+ unit 9 mm² · Posterior bridge 9 mm²
Disc size 98.5 mm – 14, 18 and 22 mm

KATANA Zirconia STML

  • Natural multi-layered color gradient – four layers mimic natural tooth anatomy from incisal to cervical, with no visible transition lines.
  • Rapid sintering – speed-sinters in as little as 20 minutes in compatible chairside furnaces (cycle time depends on your furnace).
  • Finishing flexibility – ideal for monolithic ultra-micro-layering with CERABIEN™ ZR FC Paste Stain or vestibular cutback micro-layering.

KATANA Zirconia HTML PLUS

  • Strength for long spans – 1,150 MPa across all layers for long-span bridges and frameworks.
  • Enhanced translucency & vivid color – a new in-house raw material gives a brighter, deeper, more lifelike shade than the original HTML.
  • Fast sintering – 54-minute, 90-minute or standard cycles, on the same schedules as STML.
  • Finishing flexibility – monolithic ultra-micro-layering, vestibular cut-back, or full porcelain layering.

Ordering

Thickness STML HTML PLUS
14 mm $139 $139
18 mm $179 $179
22 mm $219 $219

Shades stocked (both): A1, A2, A3, A3.5, A4, B1, B2, B3, C1, C2, C3, D2, D3, NW (Natural White). Choose material and thickness above, then select your shade.
