CAD-Ray · Chairside speed-sintering furnace

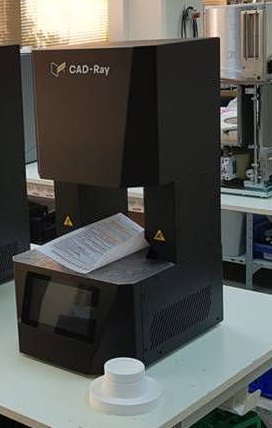

CAD-Ray CS Chairside Zirconia & e.max Furnace
The CAD-Ray CS is a compact, fast chairside furnace that sinters a zirconia crown in under 20 minutes (18.5 minutes with Katana STML) and crystallizes e.max in 14–22 minutes. Built on the Shenpaz SINTRA CS platform and finished in black with CAD-Ray CS branding, it brings same-day zirconia into the practice.
Key features
Same-day zirconia
Fast cycles sinter a single crown in under 20 minutes, so you can mill, sinter and seat in one visit.
Zirconia and e.max
One furnace for speed-sintering zirconia and crystallizing lithium disilicate.
Extra-wide 70 mm table
Fits 5 individual crowns or a bridge of up to 7 units per cycle, with up to 3 stackable trays.
Open, programmable system
Unlimited programmable heating, cooling and holding stages, ready for today’s zirconias and future materials.
7″ touch screen
A full-touch LCD with an interactive graph of every multi-stage program and the elapsed cycle time.
Compact footprint
About 313 × 375 mm, so it fits next to the mill in a small lab or operatory.
Indications
- Fast-sintering zirconia crowns and short bridges (e.g. Katana STML)
- e.max / lithium disilicate crystallization
- Same-day single-visit restorations
- Small-batch chairside production
CAD-Ray CS Specifications
| Category | CAD-Ray CS |
|---|---|
| Platform | Shenpaz SINTRA CS (CAD-Ray CS edition, black) |
| Max temperature | 1,750°C |
| Max sintering temperature | 1,600°C |
| Heating rate | Up to 10°C per second |
| Sintering table | 70 mm wide; up to 3 stackable trays |
| Capacity | 5 single crowns or a bridge of up to 7 units |
| Cycle time | Zirconia crown under 20 min; e.max 14–22 min |
| Programs | Unlimited programmable steps |
| Display | 7″ full-touch LCD |
| Connectivity | Wi-Fi, RJ45 |
| Power | 1,800 W; requires a 220V, 15A circuit |
| Dimensions (W × H × D) | 313 × 610 × 375 mm |
| Weight | ≈43 kg |
Specifications from Shenpaz for the SINTRA CS platform; cycle times per CAD-Ray.
Why buy your CAD-Ray CS from CAD-Ray
- Setup guidance and technical support from CAD-Ray’s in-house team: 833-223-7292.
- Help dialing in sintering programs for your zirconia and e.max materials.
- Pair it with CAD-Ray Zirconia by Beyond, our private-label zirconia made by B&D Dental.
CAD-Ray CS FAQ
How fast is it?
A zirconia crown sinters in under 20 minutes (18.5 minutes with Katana STML), and e.max crystallizes in 14–22 minutes.
What power does it need?
A dedicated 220V, 15A circuit.
How many units per cycle?
Up to 5 single crowns or a bridge of up to 7 units on the 70 mm table.
Is it an open system?
Yes. It’s fully programmable for a wide range of zirconia materials.
More about the CAD-Ray CS
SINTRA
CS.
TECHNOLOGY
The visuals
It’s all about accessibility and intuitiveness. The full touch 7” LCD screen is user friendly with a superbly comfortable interface for easy programming.
Interactive Graph Screen
Multi-stage program is interactively illustrated on the graph and the cycle’s elapsed time is visually indicated by color change.
Sky is the Limit – Unlimited choices of heating, cooling stages and holding durations provide a host of programming capabilities. The furnace is universally compatible to a wide variety zirconia.
Connectivity
The furnace can be remotely monitored and operated from PC, smartphone and tablets. Connectivity via Wifi (logo) links to our platform for connecting with devices for online operation and monitoring of the furnace. This connectivity also provides service applications such as online upgrades of software versions, program downloads and
