Description
Shining 3D · Wired intraoral scanner
Shining 3D Aoralscan 3
An affordable, true-color intraoral scanner for everyday dentistry.
The Aoralscan 3 is Shining 3D’s wired, true-color intraoral scanner. It connects by USB 3.0, scans powder-free with standard and mini tips, and exports open STL, OBJ and PLY files.
Key features
True color, powder-free
Captures true-color 3D impressions without powder.
Standard and mini tips
Pluggable standard (16 × 12 mm) and mini (12 × 9 mm) tips, with 22 mm scan depth.
Open files
Exports STL, OBJ and PLY for any lab or CAD software.
Aoralscan 3 Specifications
| Category | Aoralscan 3 |
|---|---|
| Weight | 240 g (without cable) |
| Dimensions | 285 × 46 × 33 mm |
| Scanning principle | Non-contact structured light |
| Scan fields | Standard 16 × 12 mm, mini 12 × 9 mm |
| Scan depth | 22 mm |
| Connection | USB 3.0 |
| Power | 12 V DC, 3 A |
| Output formats | STL, OBJ, PLY |
| Cradle | 165 × 73 × 61 mm, 375 g |
Specifications from Shining 3D.
Why buy your Aoralscan 3 from CAD-Ray?
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- CAD-Ray sells the full Shining 3D line, including tips, scan bodies and accessories, so your whole Shining workflow is supported in one place.
Aoralscan 3 FAQ
Is the Aoralscan 3 wired or wireless?
This model is wired (USB 3.0). For wireless, see the Aoralscan 3 Wireless.
What file formats does it export?
STL, OBJ and PLY.
More about the Aoralscan 3
SHINING 3D NEW Intraoral Scanner
Say hello to SHINING 3D’s brand new intraoral scanner, Aoralscan 3! Exceptional, smart and elegant, Aoralscan 3 improves the overall clinical experience. It allows users to easily acquire vivid digital impressions in a faster and more accurate way.
Moreover, Aoralscan 3 comes with a wide range of different intelligent functions, guaranteeing more comfortable chairside experience and efficient clinic-lab collaboration.

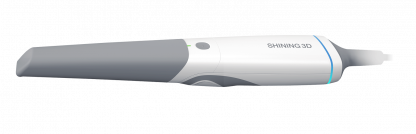

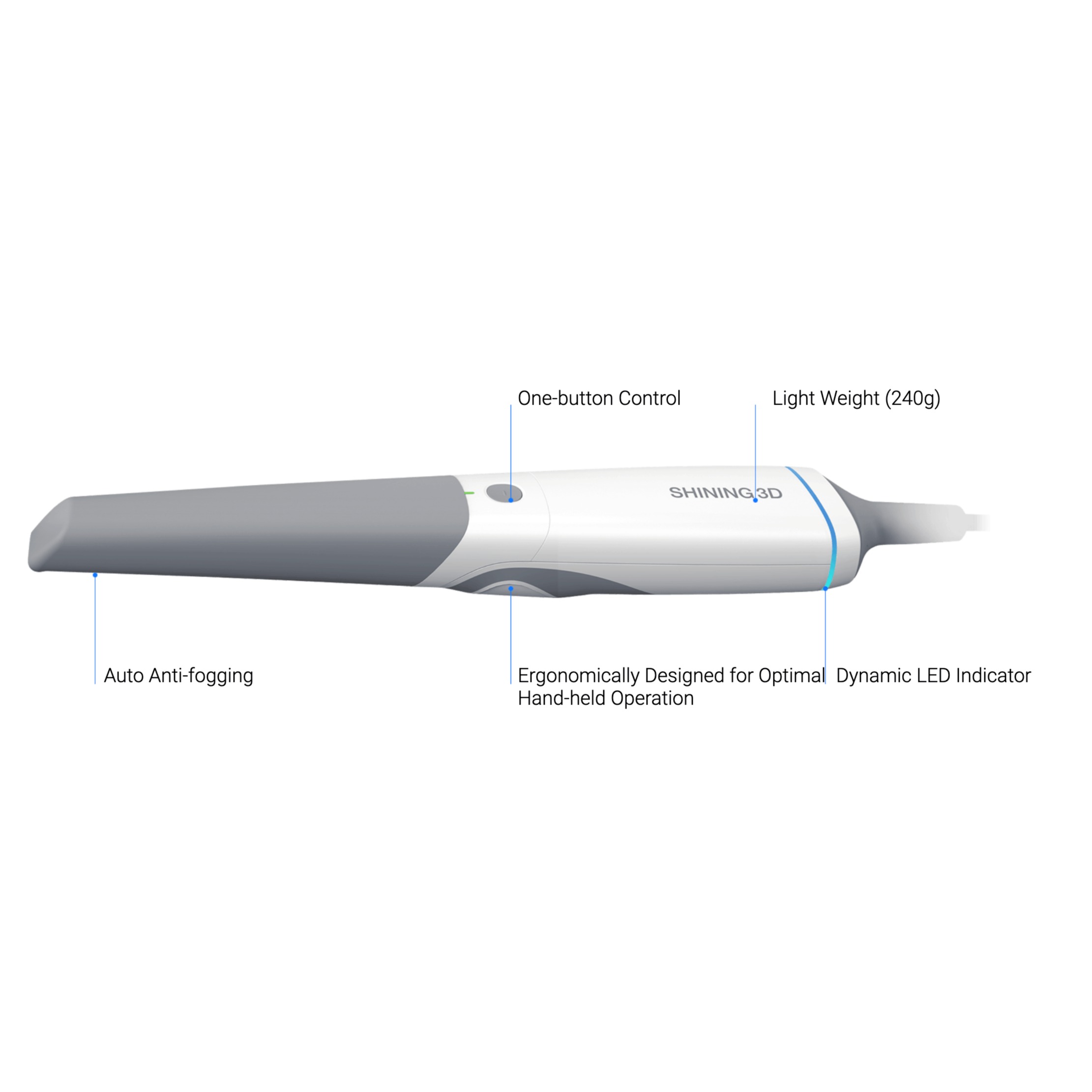

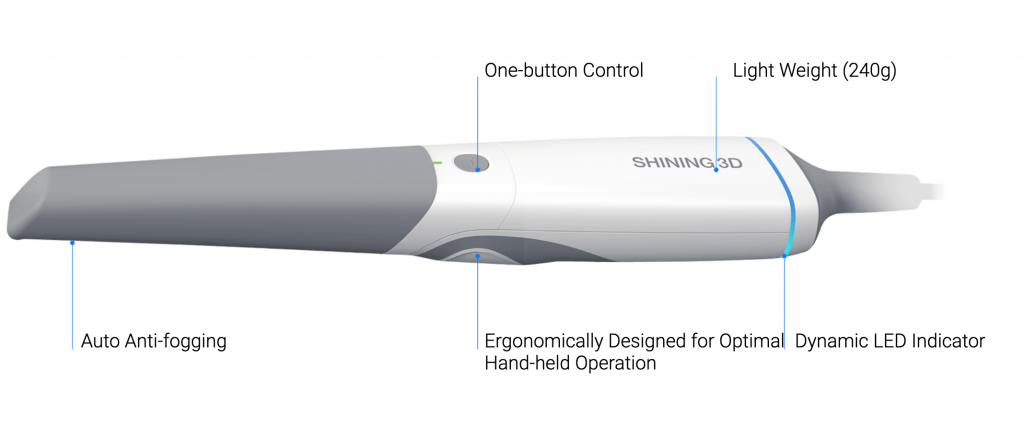

Brand New Design
- One-button Control
- Light Weight
- Auto Anti-fogging
- Ergonomically Designed for Optimal Handheld Operation
- Dynamic LED Indicator
Capture Digital Impressions in Real Time
Fast, Accurate and Exceptional Scan Performance for Chairside Experience.
The constant optimization and innovation of Shining 3D’s hardware and software system, led to the release of its latest and finest intraoral scanner, Aoralscan 3.
Faster Scan – 25s Single Arch
The scan speed is 30% faster than the last generation due to Aoralscan 3’s drastically upgraded scanning technology.
More Accurate Scan – 30% Increased
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.
Longer Scan Tip – 15% Increased
Slimmer and 15% longer autoclavable scanner tips offer patients with more comfortable clinical experience.
Greater Scan Depth – Up to 22mm
Aoralscan 3 is suitable for various clinical scenarios including acquiring scan bodies and periodontal scans.
Motion Sensing – Less Contact, Much Safer
Dentists can scan with minimal contact with the computer, ensuring a safe and efficient scan experience.
AI Scan – Speed Up The Scan
Automatically identifies and filters out unnecessary soft tissue data during scanning resulting in a quicker and cleaner scan process.
30% – More Accurate
Thanks to optimized algorithms and imaging mechanism, Aoralscan 3 carries out more accurate and precise results by 30%, meeting the clinical needs of different applications.
25s – 30% Faster
Single arch in 25s; Full arch in 1 min;
Clinical Toolkit
The clinical toolkit assists dentists to evaluate and pre-design the scanned data in their own clinic. It facilitates effective communication with dental labs to deliver quality dental work with high efficiency.
Undercut Check
Bite Check
Margin Line Auto Extraction
Tooth Marking
Coordinate Adjustment
Direct Export into exocad
Ortho Simulation – Preview To Be Decisive
Patients can preview images of their straightened-up results in real time.
Application
The Aoralscan 3 intraoral scanner can be applied for clinical indications range spans general restorations, 3d teeth scan, implants and orthodontics. Whether through same-day chairside restorations or clinic-dental lab integrated treatments, it always provides a state-of-the-art user experience.
Inlay Onlay
All-on-6 Implant
6-Unit Bridge
Veneer
Pediatric Dental Care
Orthodontics
Customer Testimonials
Dr. Luigi Rubino from Genoa, Italy
Dr. George Ho from Vancouver, Canada
Dr. Ester Chiappetta from Treviglio, Italy
Technical Specifications
| Scan Field | Standard scanner tip: 16 mm × 12 mm × 22 mm; Mini scanner tip: 12 mm × 9 mm × 22 mm; |
| Scan Principle | Non-contact scanner with structured light |
| Dimension (L × W × H) | 281 mm × 33 mm × 46 mm |
| Weight | 240 ± 10 g (without cables) |
| Output | STL, OBJ, PLY |
| Connector | USB 3.0 |
| Power Input | 12V DC/3 A |
Recommended System Configuration
| CPU | Intel Core i7-8700 or higher |
| RAM | 16GB or more |
| Hard Drive | 256 GB SSD or above |
| Graphic Card (GPU) | NVIDIA® RTX 2060 6GB DDR3 or higher * |
| Operating System | Windows 10 Professional (64-bit) or later versions of Windows operating systems |
| Screen Resolution | 1920×1080, 60 Hz or higher |
| I/O Ports | More than 3 Type-A USB 3.0 (or higher) ports |
Package Included:
- 1 x Shining3D Aoralscan 3 Intraoral Scanner
- 1 x Calibrator
- 5 x Scanner Heads (4 x Standard Scanner Heads & 1 x Small Scanner Head)
- 1 x Scanning Software (Perpetual License, No Ongoing Subscription Fees)
