Trios 5 Wireless Intra-Oral Scanner and Dell Laptop Promo 40119 – Only $24,050 after $1000 rebate

Name: Trios 5 Wireless Intra-Oral Scanner and Dell Laptop Promo 40119 - Only $24,050 after $1000 rebate
Brand: Trios 5
SKU: 22003185
Availability: InStock

From: $20,200.00

3Shape · Wireless intraoral scanner

Q4 2026 promo 40119 · $1,000 rebate from 3Shape · $24,050 after rebate (Dell laptop required)

TRIOS 5 Wireless is 3Shape’s compact, 299 g wireless scanner with ScanAssist and a closed-tip hygiene design. This package includes a Dell laptop.

299 g

Including battery

ScanAssist

Easier scanning, any strategy

66 min

Continuous scanning per battery

5 GHz

Wireless, up to 15 m

✓ Dell laptop included ✓ 1 year TRIOS Care ✓ 3 batteries

See package & offer details ↓

Description

3Shape · Wireless intraoral scanner

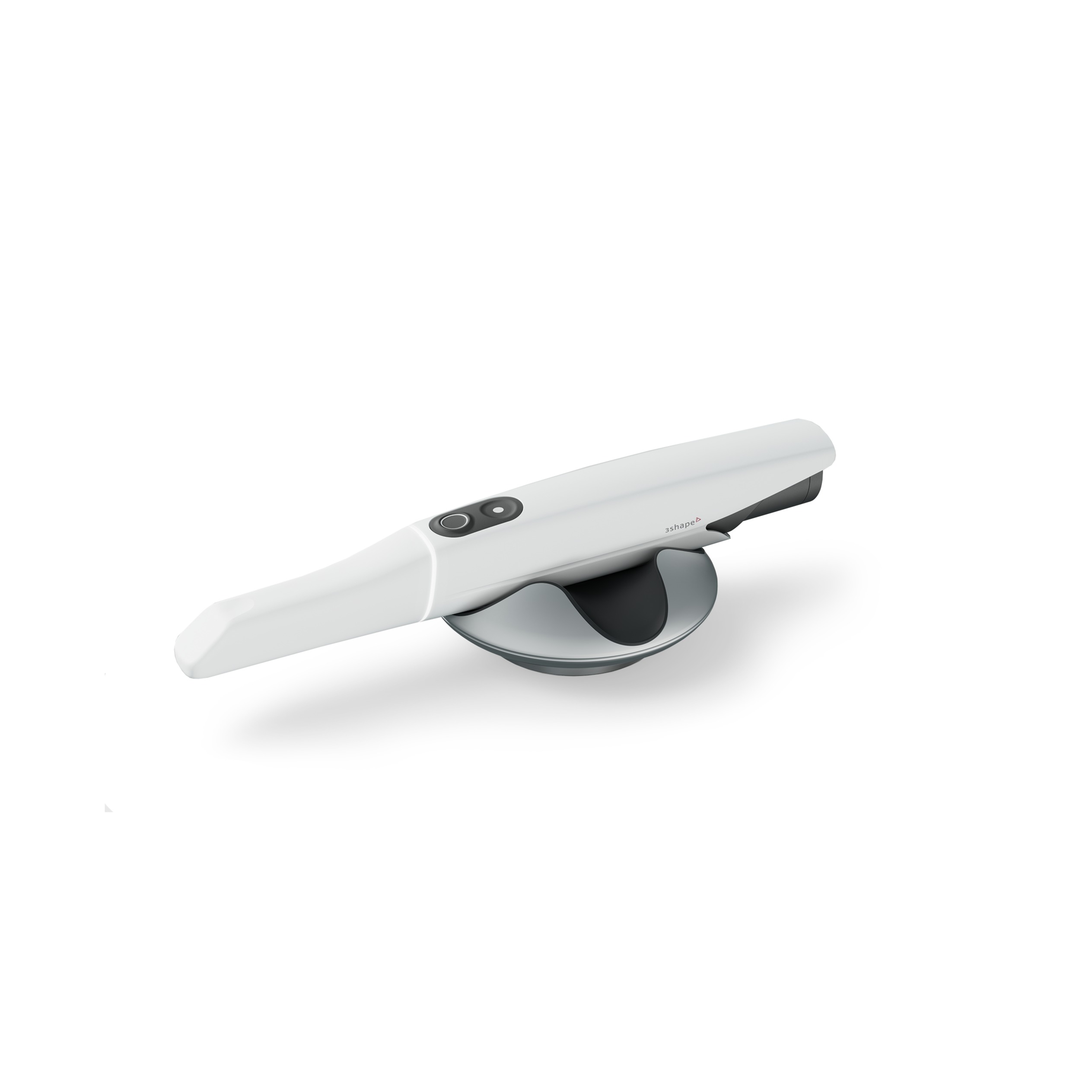

3Shape TRIOS 5 Wireless

Smaller, lighter and easier to scan with, thanks to ScanAssist.

TRIOS 5 Wireless is 30% more compact and 20% lighter than TRIOS 4. ScanAssist makes scanning easier regardless of your scan strategy, and a closed-tip hygiene design keeps the optics protected between patients.

299 g

Including battery

ScanAssist

Easier scanning, any strategy

66 min

Continuous scanning per battery

5 GHz

Wireless, up to 15 m

Key features

ScanAssist

3Shape’s intelligent scanning engine makes it easier to get a complete scan regardless of scan strategy.

Compact and light

30% more compact and 20% lighter than TRIOS 4, at 299 g with battery.

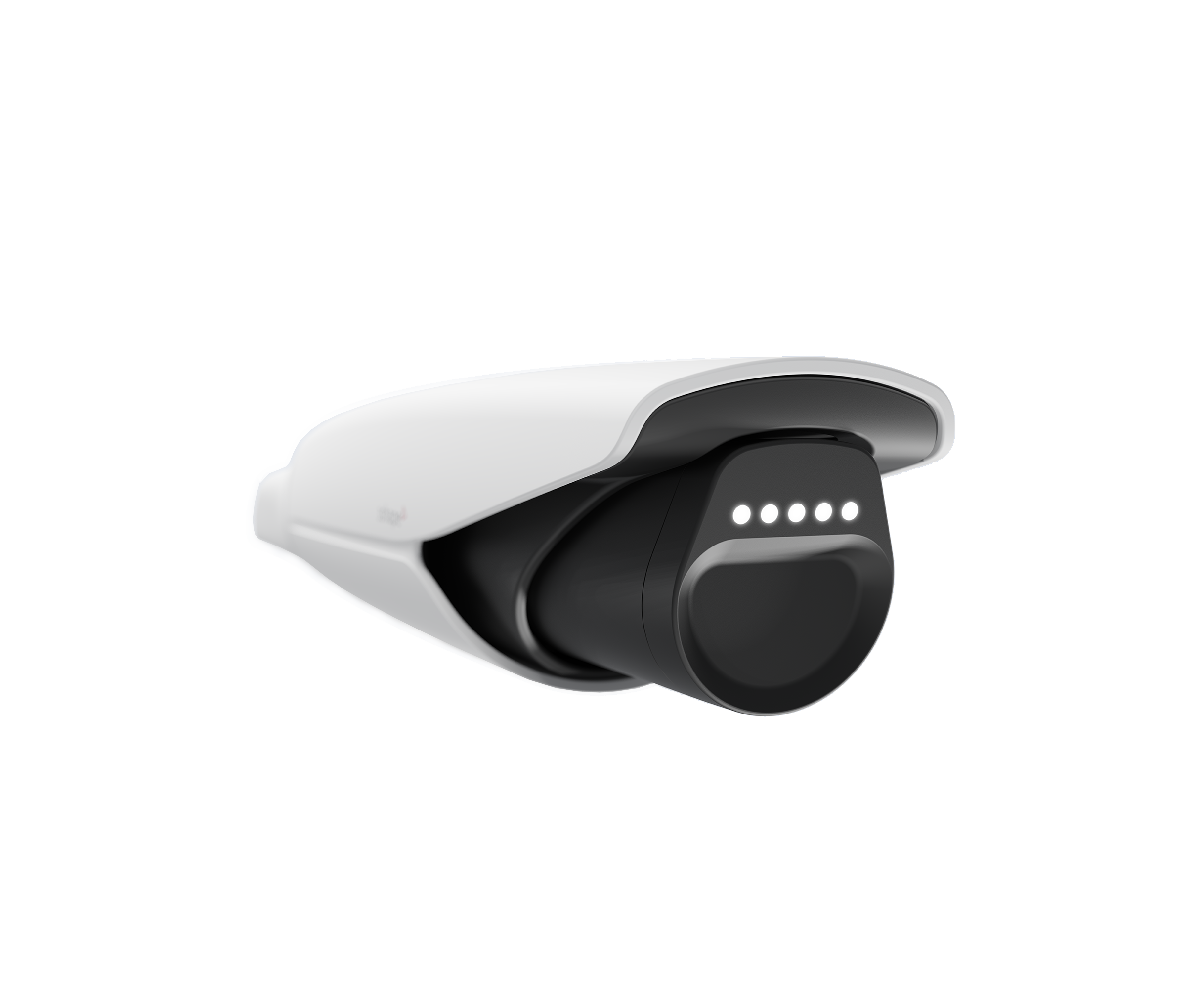

Hygienic closed-tip design

The enclosed tip and internal mirror keep dust out, and single-use sleeves add a barrier between patients.

All-day battery

Three batteries included, each good for up to 66 minutes of continuous scanning, with a full charge in under 2 hours.

TRIOS 5 Wireless Specifications

Category	TRIOS 5 Wireless
Weight	299 g including battery
Dimensions	3.8 × 3.7 × 26.6 cm
Image capture	2,400 images per second
Battery	Up to 66 minutes of continuous scanning; full charge in under 2 hours
Wireless	5 GHz, up to 15 m range
Output formats	PLY, DCM, STL
Software	3Shape Unite

Package & offer details

This Q4 2026 promo requires a Dell Precision Laptop and qualifies for a direct rebate check of $1,000 From 3shape – bringing the total cost to $24,050

This promo cannot be combined with the trade in rebate – However – Trade in customers can get a $3,500 CASH REBATE

CAD-Ray Package includes
CAD-Ray technical and clinical support for life
$2000 Lab credit to one of 4 CAD-Ray Partner Labs
CAD-Ray Trios Training and ALL Level 1, 2, and 3 Tuition for In person CE courses
CAD-Ray membership and video library

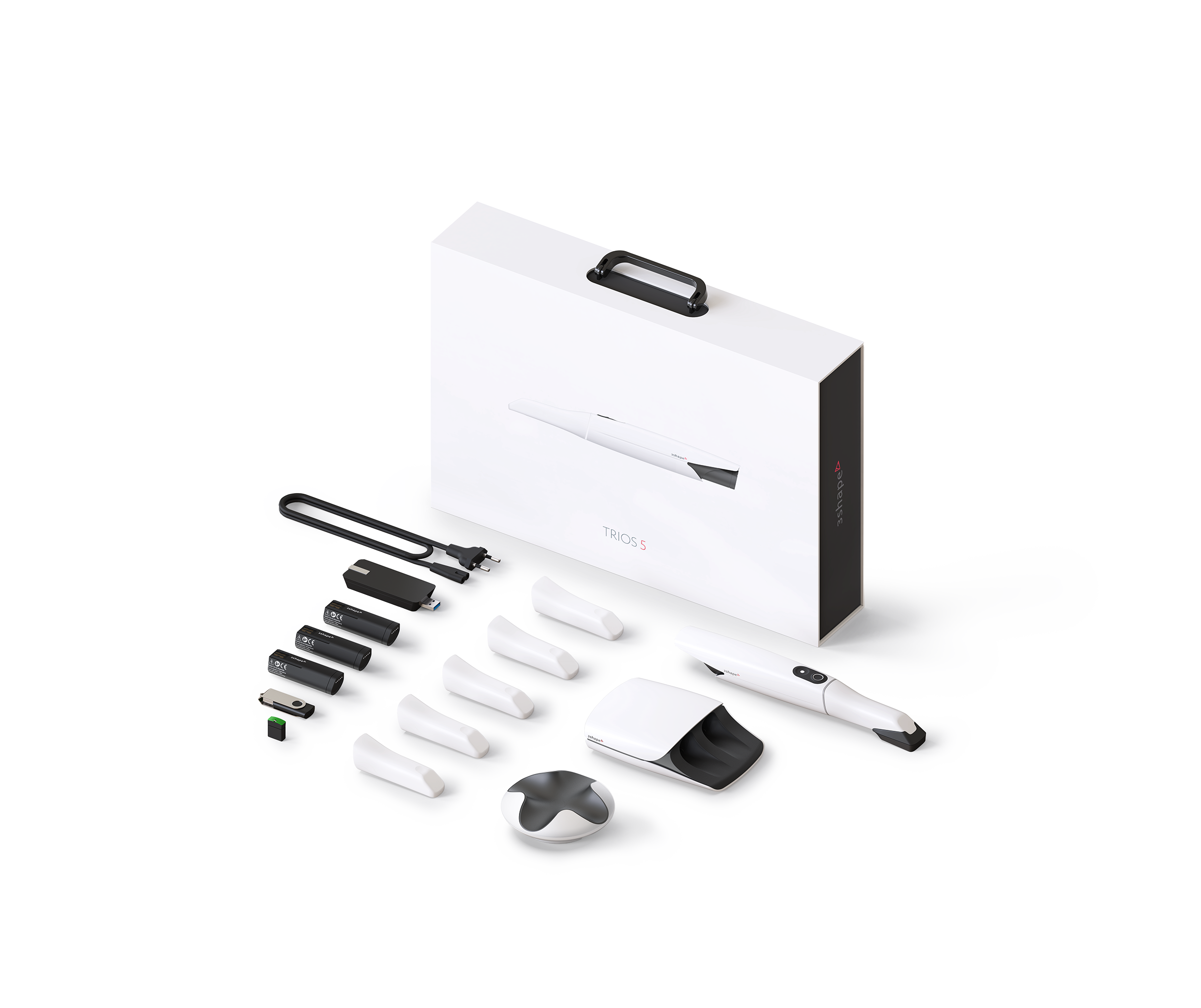

TRIOS 5 Wireless includes (From Trios):

TRIOS 5 Wireless intraoral scanner
Free 1 year of TRIOS Care (full-service pack) ($2,299 Yearly OPTION for trios care after year one)
3Shape Unite – open dental platform
1 Autoclavable scanner tip + 1 protection tip + 25 ready tips
3 batteries and charger
License dongle
Wi-Fi dongle for PC
100 single-use body sleeves
Carry box

Why buy your TRIOS 5 Wireless from CAD-Ray?

Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
Every TRIOS accessory, from Ready Tips to batteries and MOVE carts, is on our 3Shape TRIOS Tips & Accessories page.

TRIOS 5 Wireless FAQ

How long does a TRIOS 5 battery last?

Up to 66 minutes of continuous scanning, which is usually about one battery per day. Three batteries are included.

What tips does TRIOS 5 use?

TRIOS 5/6 autoclavable tips and single-use TRIOS Ready Tips.

Is TRIOS Care included?

Yes, the first year of TRIOS Care is included in this package. See the package details below.

Videos & more

Scan Assistant

Why is this a significant step?

Additional information

Simply Ergonomic	The smallest and lightest intraoral scanner to date TRIOS 5 Wireless is 3Shape’s most streamlined scanner ever. The sleek, pen-grip scanner is optimally balanced to fit comfortably in any hand. TRIOS 5 is 30% more compact and weighs just 10.6 ounces (with battery) and is only 10.5 inches long. In comparison, some competitor scanners weigh up to 16.5 ounces and are more than 13 inches in length. And you can take your TRIOS 5 anywhere using TRIOS Share to scan from every PC in your practice. Weight – 10.6 oz incl. battery and scanner tip (300 gm with battery) Length – 10.5 inches (26.6 cm) Scanner height x width – 1.52 x 1.47 inches (3.85 x 3.74 cm) Includes TRIOS Share enabling you to scan and plan with your TRIOS 5 Wireless from any PC anywhere in your practice using Wi-Fi
Simply Effortless	introduces intelligent-alignment technology At the heart of TRIOS 5 is the ScanAssist engine, which features intelligent-alignment technology to make scanning even easier. Dental professionals will enjoy the built-in LED ring and haptic sensory feedback that guide you while you scan to make digital impression-taking smoother and faster. In fact, intraoral scanning with TRIOS 5 is so easy to do that you create the scan path you prefer. Optimize your scans while you scan, guided by LED ring and haptic feedback, and driven by the all-new, robust ScanAssist engine that minimizes misalignment and distortion in 3D models to make impression-taking so simple that you can create your own scan strategy or scanning routine. All-day battery life with Smart Power Management that automatically switches TRIOS 5 to sleep-mode to save energy when not in use. Up to 66 minutes of scan time per battery Precision 3D models with no need for a calibration tool – that means you no longer need to calibrate your scanner every 14 days like with other intraoral scanner models. LED ring and haptic feedback guide you while you scan to make scanning easier. Two-button design for improved software navigation and scan analysis.
Simply Hygienic	a new standard in patient protection and infection control TRIOS 5 Wireless reimagines intraoral scanner design. It is so easy to clean because it is hygienically sealed up to its battery inlet with no cracks or crevices that can accumulate soil or contaminants. A sapphire glass window encloses the FDA cleared autoclavable tip to create a sturdy microbial barrier between patient and scanner. TRIOS 5 Wireless also includes single-use body sleeves that cover the entire area touched by the operator to further protect against contamination. FDA 510 K cleared enclosed scan tips provide a microbial barrier for the scan tip. Tips are autoclavable up to 100 cycles. Ultra-thin, snug, and near-invisible single-use body sleeve shields the scanner body and reduces risk of cross contamination. Scanner body has been designed for easy cleaning and disinfection.
Digital dentistry at your fingertips	powered by 3Shape Unite Like all 3Shape TRIOS scanners, TRIOS 5 Wireless includes the 3Shape Unite platform with it for free. Together, TRIOS and 3Shape Unite seamlessly connect you to over two thousand dental companies, treatment solutions, practice management systems, and labs, represented as apps on the dental world’s most open and collaborative platform. Doctors can also take advantage of 3Shape engagement apps, included free with TRIOS 5 Wireless, to help boost treatment acceptance. And TRIOS 5 Wireless is so easy to use, even first-time users will have no problems scanning their patients.
Peace of mind service	TRIOS 5 Wireless owners can take advantage of two TRIOS service agreement options: TRIOS Care, which delivers focused onboarding, extensive training, and unlimited support for practitioners, including express replacement, if your scanner is damaged and TRIOS Only – a scan-ready free service agreement with no monthly costs. TRIOS 5 is 3Shape’s fifth-generation model of the world’s most recognized intraoral scanner bringing industry-leading scanning experiences, award-winning design, and unparalleled clinic-to-lab workflows – powered by 3Shape Unite.

Simply Ergonomic	The smallest and lightest intraoral scanner to date TRIOS 5 Wireless is 3Shape’s most streamlined scanner ever. The sleek, pen-grip scanner is optimally balanced to fit comfortably in any hand. TRIOS 5 is 30% more compact and weighs just 10.6 ounces (with battery) and is only 10.5 inches long. In comparison, some competitor scanners weigh up to 16.5 ounces and are more than 13 inches in length. And you can take your TRIOS 5 anywhere using TRIOS Share to scan from every PC in your practice. Weight – 10.6 oz incl. battery and scanner tip (300 gm with battery) Length – 10.5 inches (26.6 cm) Scanner height x width – 1.52 x 1.47 inches (3.85 x 3.74 cm) Includes TRIOS Share enabling you to scan and plan with your TRIOS 5 Wireless from any PC anywhere in your practice using Wi-Fi
Simply Effortless	introduces intelligent-alignment technology At the heart of TRIOS 5 is the ScanAssist engine, which features intelligent-alignment technology to make scanning even easier. Dental professionals will enjoy the built-in LED ring and haptic sensory feedback that guide you while you scan to make digital impression-taking smoother and faster. In fact, intraoral scanning with TRIOS 5 is so easy to do that you create the scan path you prefer. Optimize your scans while you scan, guided by LED ring and haptic feedback, and driven by the all-new, robust ScanAssist engine that minimizes misalignment and distortion in 3D models to make impression-taking so simple that you can create your own scan strategy or scanning routine. All-day battery life with Smart Power Management that automatically switches TRIOS 5 to sleep-mode to save energy when not in use. Up to 66 minutes of scan time per battery Precision 3D models with no need for a calibration tool – that means you no longer need to calibrate your scanner every 14 days like with other intraoral scanner models. LED ring and haptic feedback guide you while you scan to make scanning easier. Two-button design for improved software navigation and scan analysis.
Simply Hygienic	a new standard in patient protection and infection control TRIOS 5 Wireless reimagines intraoral scanner design. It is so easy to clean because it is hygienically sealed up to its battery inlet with no cracks or crevices that can accumulate soil or contaminants. A sapphire glass window encloses the FDA cleared autoclavable tip to create a sturdy microbial barrier between patient and scanner. TRIOS 5 Wireless also includes single-use body sleeves that cover the entire area touched by the operator to further protect against contamination. FDA 510 K cleared enclosed scan tips provide a microbial barrier for the scan tip. Tips are autoclavable up to 100 cycles. Ultra-thin, snug, and near-invisible single-use body sleeve shields the scanner body and reduces risk of cross contamination. Scanner body has been designed for easy cleaning and disinfection.
Digital dentistry at your fingertips	powered by 3Shape Unite Like all 3Shape TRIOS scanners, TRIOS 5 Wireless includes the 3Shape Unite platform with it for free. Together, TRIOS and 3Shape Unite seamlessly connect you to over two thousand dental companies, treatment solutions, practice management systems, and labs, represented as apps on the dental world’s most open and collaborative platform. Doctors can also take advantage of 3Shape engagement apps, included free with TRIOS 5 Wireless, to help boost treatment acceptance. And TRIOS 5 Wireless is so easy to use, even first-time users will have no problems scanning their patients.
Peace of mind service	TRIOS 5 Wireless owners can take advantage of two TRIOS service agreement options: TRIOS Care, which delivers focused onboarding, extensive training, and unlimited support for practitioners, including express replacement, if your scanner is damaged and TRIOS Only – a scan-ready free service agreement with no monthly costs. TRIOS 5 is 3Shape’s fifth-generation model of the world’s most recognized intraoral scanner bringing industry-leading scanning experiences, award-winning design, and unparalleled clinic-to-lab workflows – powered by 3Shape Unite.
