Description
VITA · Compact porcelain & glaze furnace

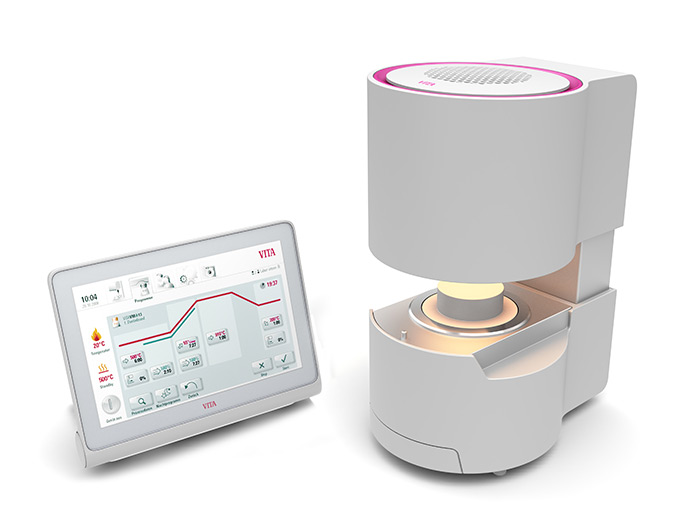

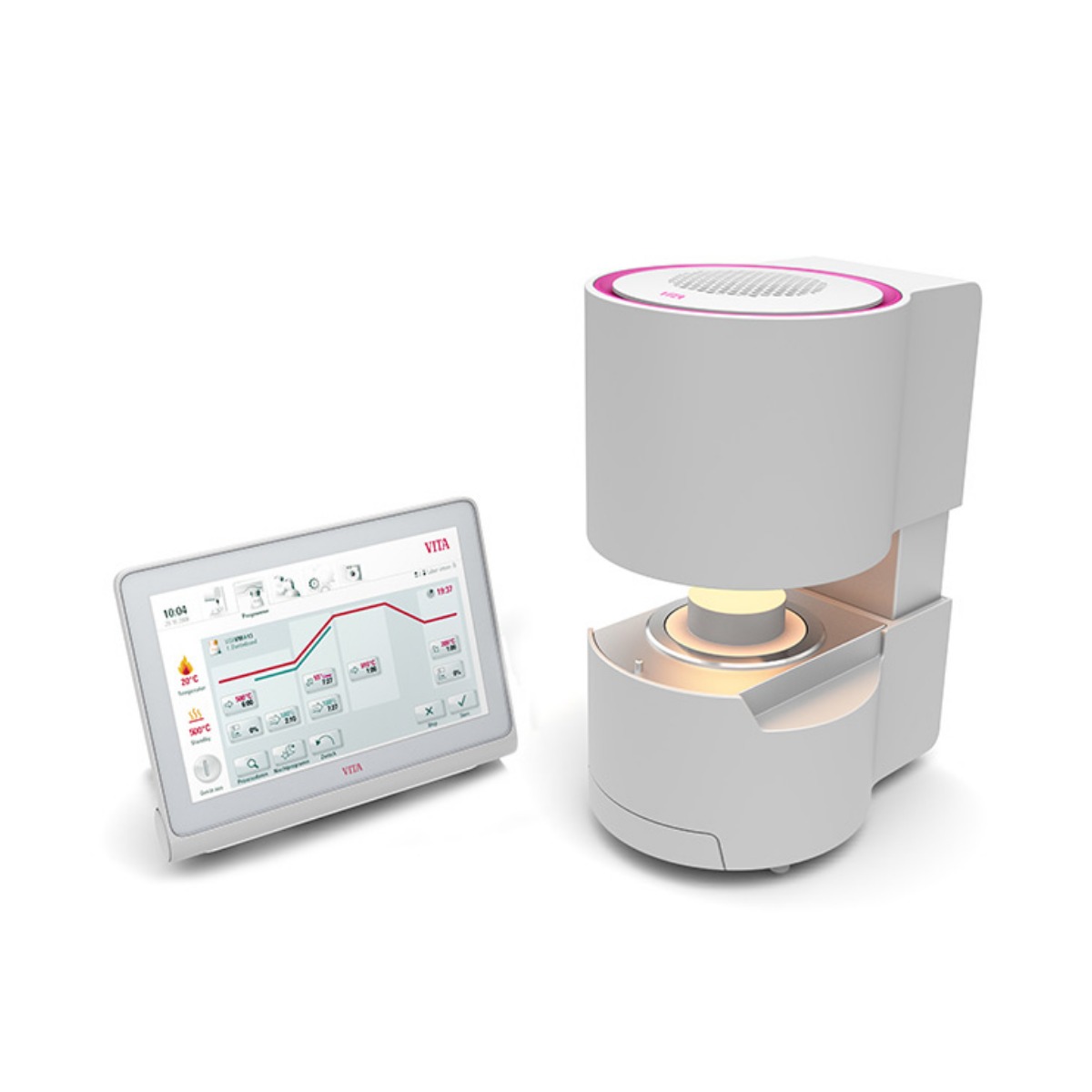

VITA SMART.FIRE Furnace with VITA vPad
The VITA SMART.FIRE is a compact firing furnace for crystallization, stain and glaze, and ceramic firings, controlled by the VITA vPad touch unit. Despite its small footprint, it fits bridges of up to 14 units. This package includes the furnace and vPad, with the vacuum pump available as an add-on.
Key features
Compact, chairside-friendly
A small, light furnace that fits in the operatory or lab.
Up to 14-unit bridges
An 80 mm firing chamber with room for long-span bridges.
VITA vPad control
Easy touch operation with pre-programmed firing programs for common ceramics.
Controlled linear cooling
Adjustable cooling gradients protect sensitive glass ceramics.
Adjustable vacuum
Set pre-vacuum and main vacuum values (requires the vacuum pump).
Power-failure protection
Automatic temperature adjustment before each program and protection against power interruptions.
Indications
- Crystallization of milled glass ceramics
- Stain and glaze firings
- Ceramic veneering and corrections
VITA SMART.FIRE Specifications
| Category | VITA SMART.FIRE |
|---|---|
| Max firing temperature | 1,200°C |
| Firing chamber | Ø80 × 43 mm |
| Capacity | Bridges up to 14 units |
| Control | VITA vPad |
| Vacuum | Adjustable; requires vacuum pump (add-on) |
| Power | 100/110V or 230V, 50/60 Hz; 950 W (230V), max 1,100 W (100/110V) |
| Dimensions (W × D × H) | 230 × 310 × 330 mm |
| Weight | 12.4 kg |
Specifications from VITA Zahnfabrik (current SMART.FIRE data sheet).
Package details
- VITA SMART.FIRE furnace
- VITA vPad control unit
- Optional: VITA SMART.FIRE vacuum pump (add-on)
Why buy your VITA SMART.FIRE from CAD-Ray
- Setup guidance and technical support from CAD-Ray’s in-house team: 833-223-7292.
- Help with firing programs for your glass ceramics and glazes.
VITA SMART.FIRE FAQ
Do I need the vacuum pump?
For vacuum firings, yes. Add it with the add-on box on this page.
Can it sinter zirconia?
No. The SMART.FIRE is a porcelain, glaze and crystallization furnace (max 1,200°C). For zirconia, see the sintering furnaces on our Ovens & Furnaces page.
How is it controlled?
With the included VITA vPad touch control unit.
