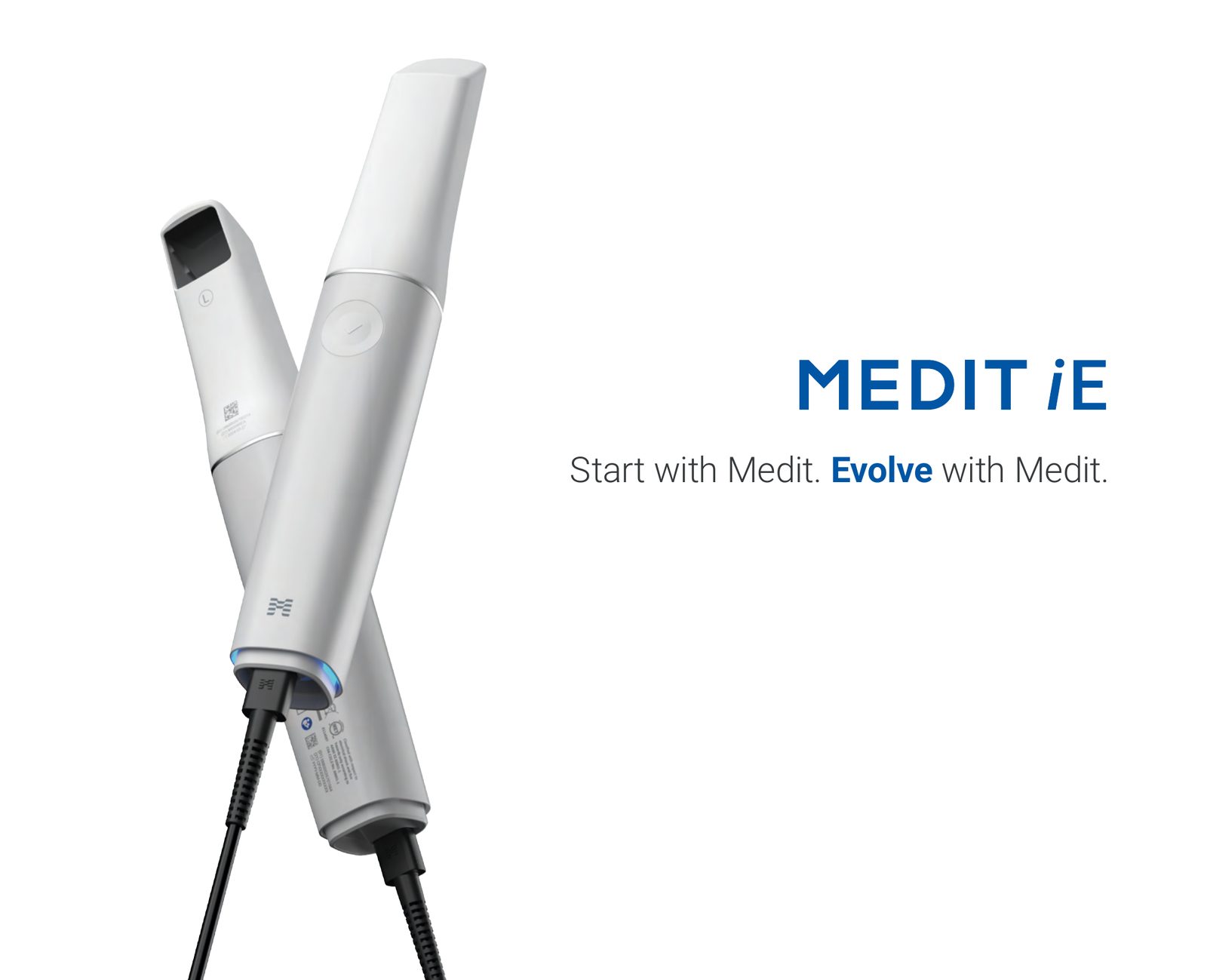

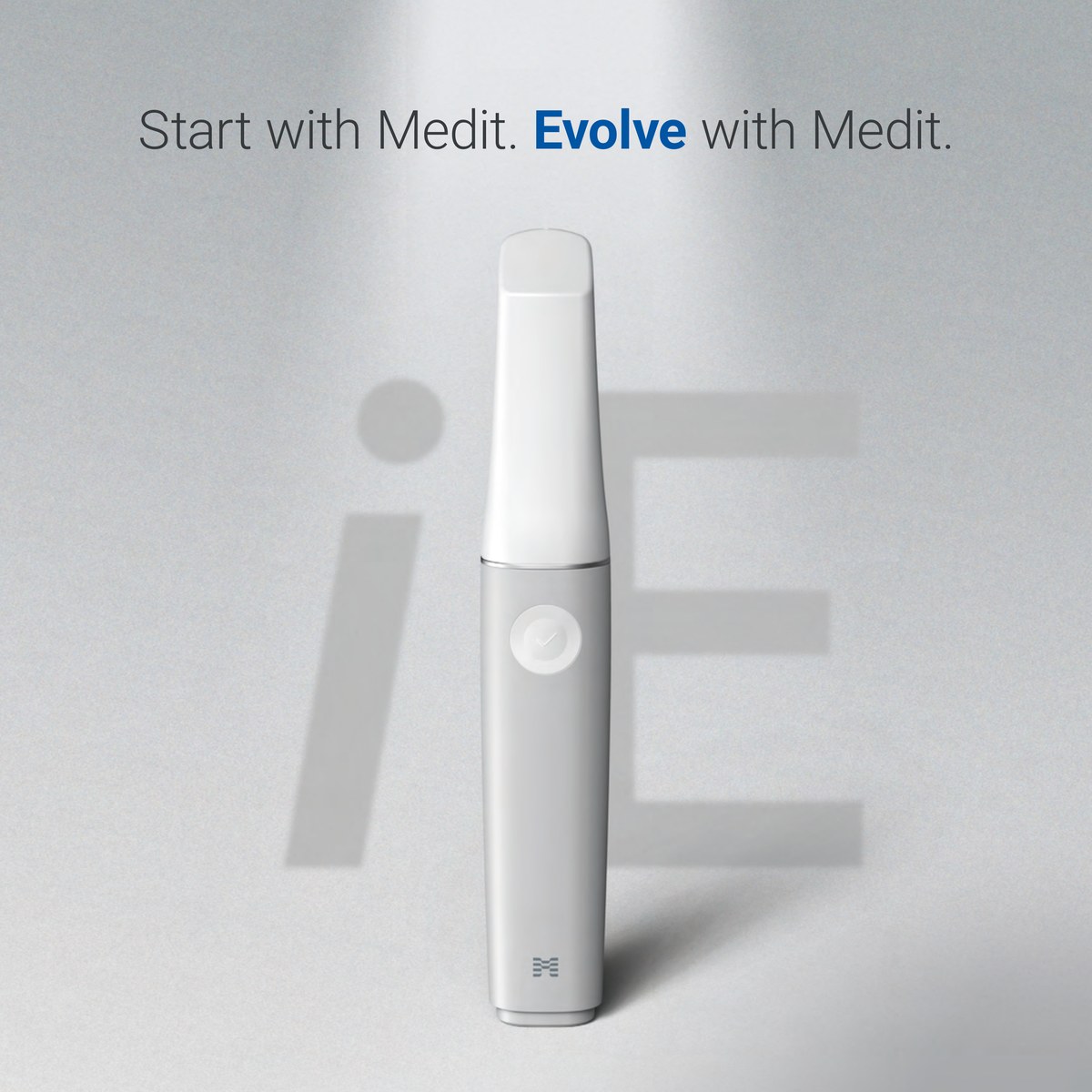

Medit iE Intraoral Scanner
Start with Medit. Evolve with Medit.
The Medit iE puts Medit’s proven scan performance into a simple, wired intraoral scanner built for everyday dentistry. Whether you’re buying your first digital impression system, adding a scanner to another operatory, or switching from another brand, the Medit iE is the easiest way into the Medit ecosystem, and it grows with your practice.
Add a second Medit iE, or add a Medit iE to a Medit i900, on the same invoice and get the iE for $5,999. Just tick the add-on box above before adding to cart (limit 1 per order).
iE, E for
Evolve
Easy Start
Scan your first case on installation day.
- Simple plug & scan
- Easy, intuitive UI/UX anyone can scan with
- No onboarding for existing Medit users
Excellence in Every Scan
Proven over 100M+ cases, consistent in every case.
- The same scan performance as Medit’s flagship
- Consistent results in every case
- Performance that keeps improving with free updates
Expandable Workflow
Start with Scan & Send, expand within Medit when ready.
- Realtime Intelligence for scan and prep checks, when you need it
- Medit Apps for consultation and design as you grow
- Move up to the i900 Series: same account, same data
Ecosystem You Can Trust
With Medit Link, the cloud platform trusted by 200K+ users.
- HIPAA and GDPR regional data security and compliance
- True open platform with 150+ partner integrations
- A global service network you can rely on

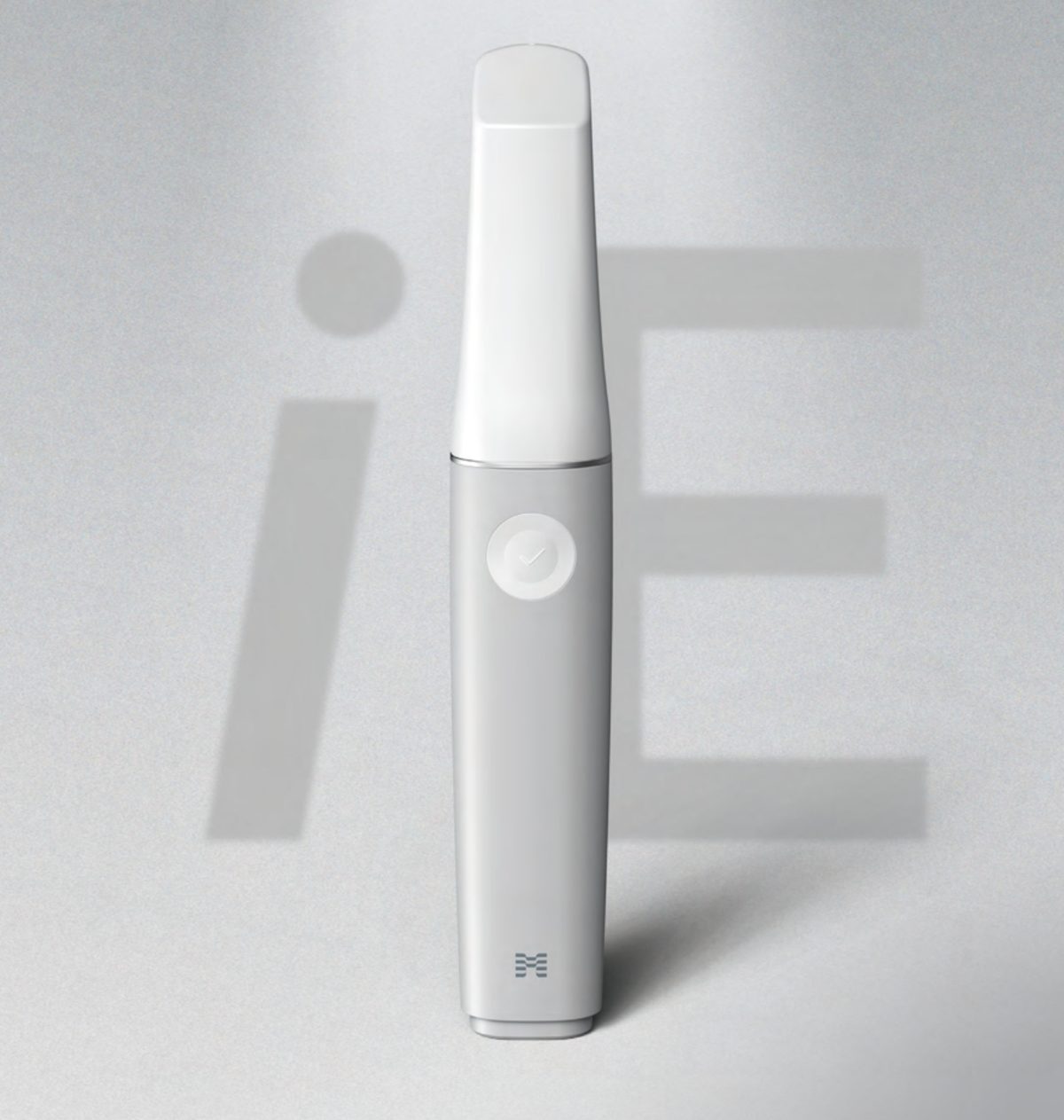

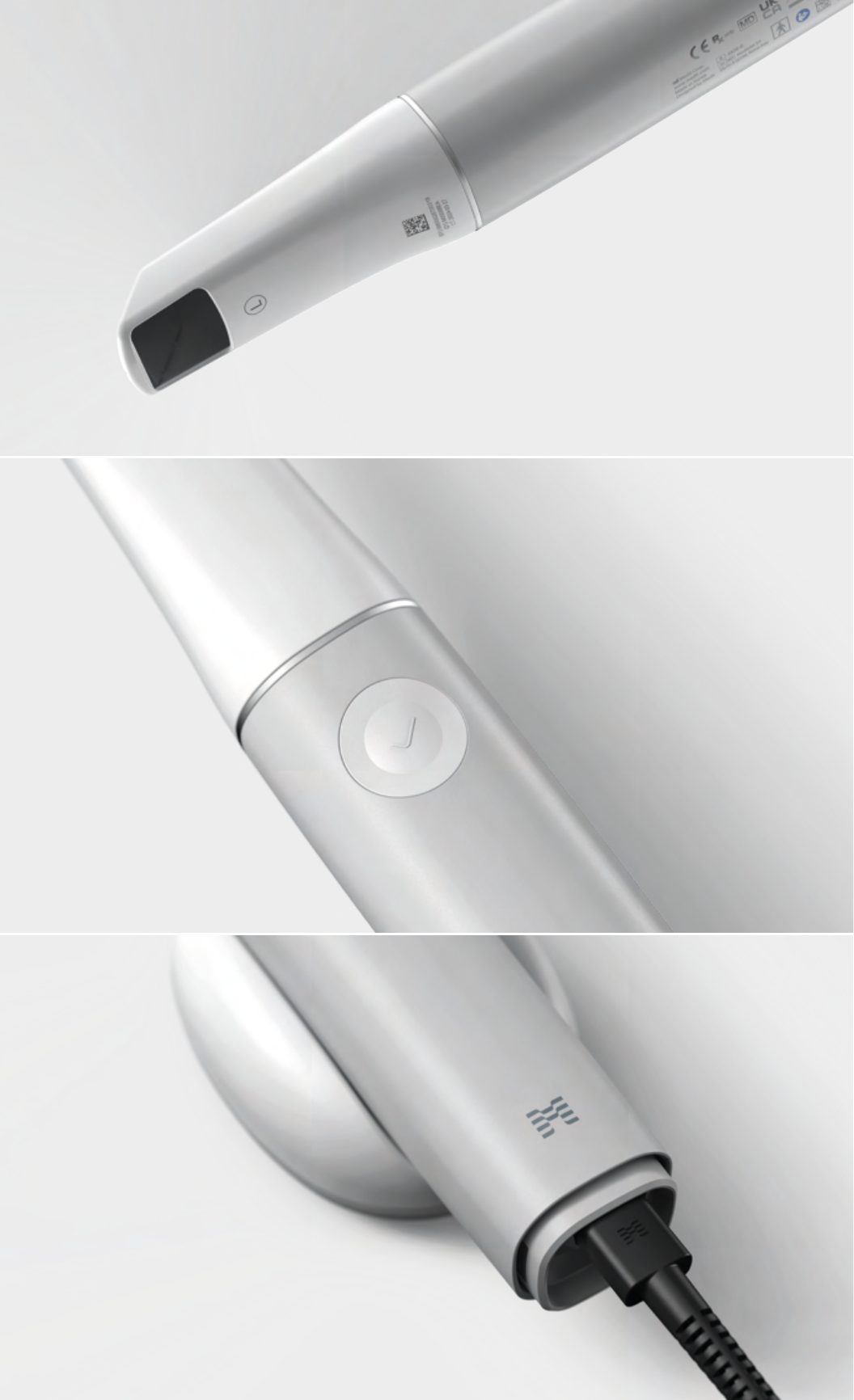

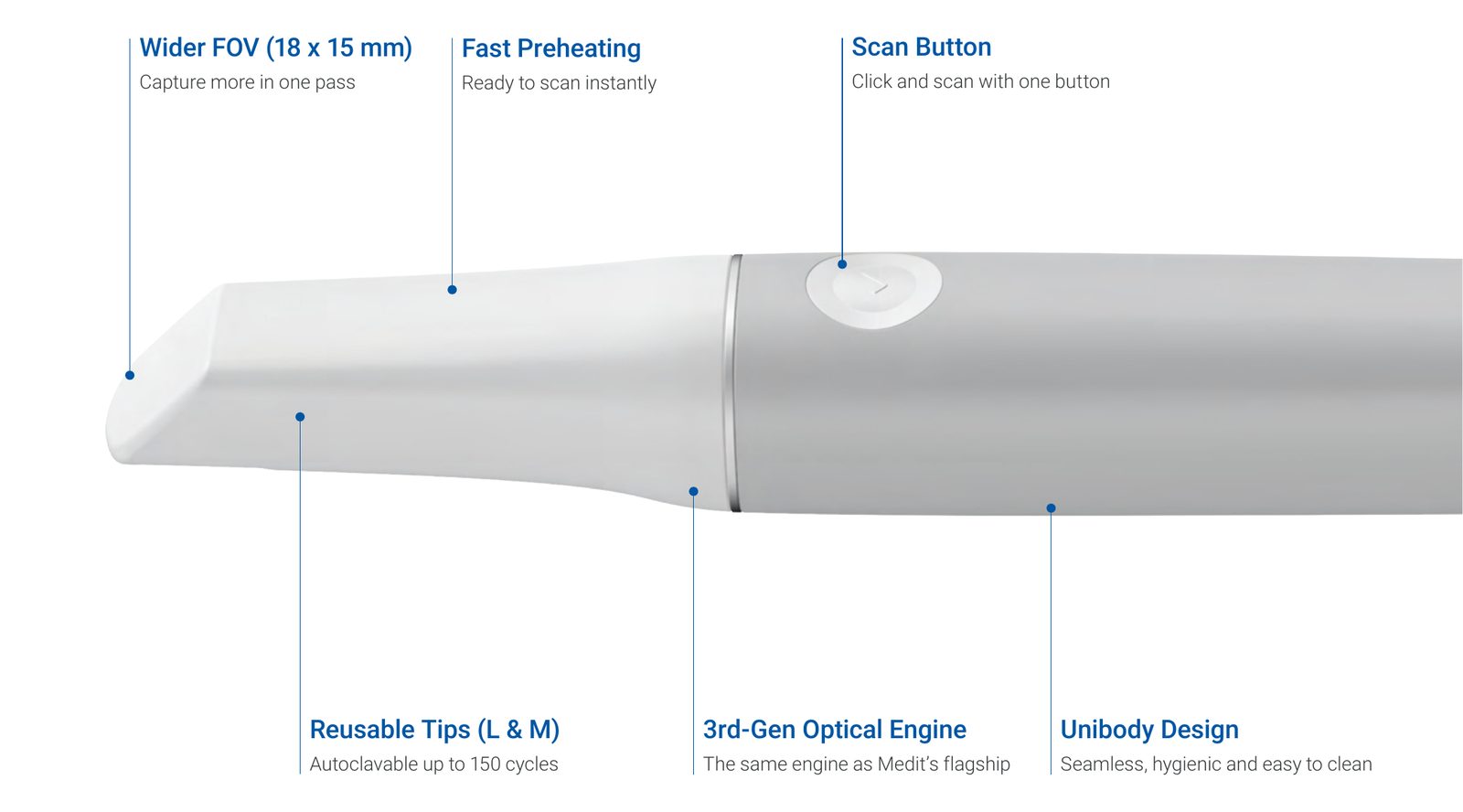

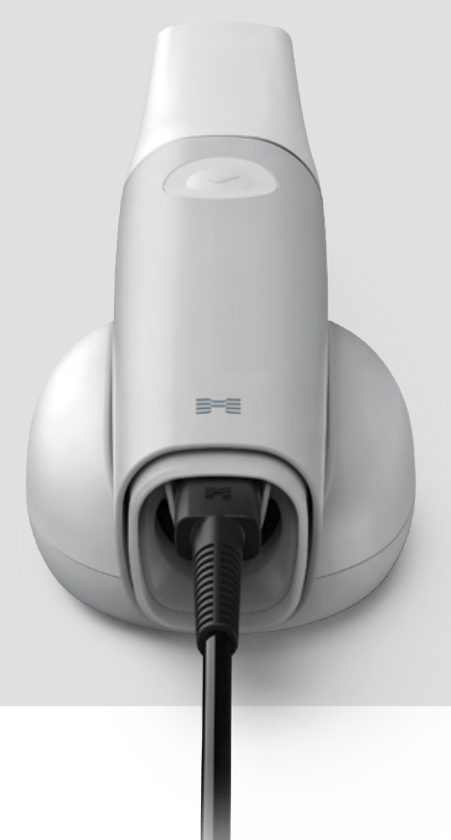

Medit iE Handpiece Features
A light, compact, unibody handpiece driven by the same 3rd-generation optical engine as Medit’s flagship scanner.
Capture more in one pass.
Ready to scan instantly.
Click and scan with one button.
Autoclavable up to 150 cycles.
The same engine as Medit’s flagship.
Seamless, hygienic and easy to clean.

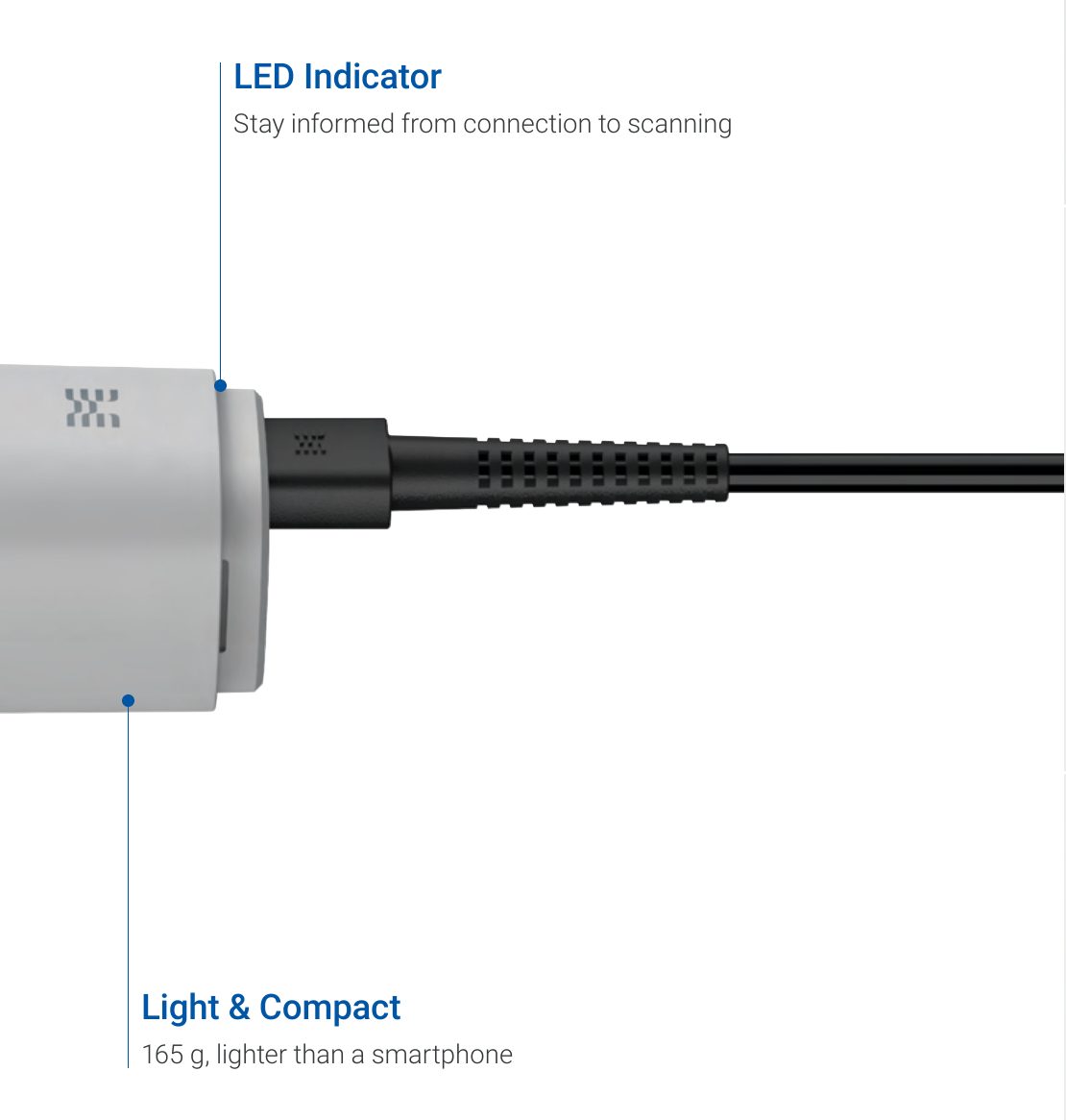

Stay informed from connection to scanning.
165 g, lighter than a smartphone.
Optics & Scan
Sharper, wider, smarter. The optics behind every Medit scan.

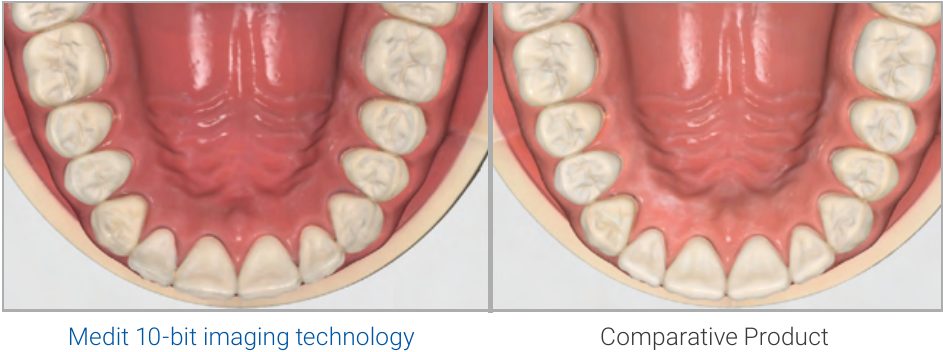

3rd-Gen Optics, Sharper Than Ever
Advanced 10-bit imaging for ultra-realistic scan results.
- Enhanced clarity with higher bit depth
- True-to-life color reproduction
- High-resolution texture recognition

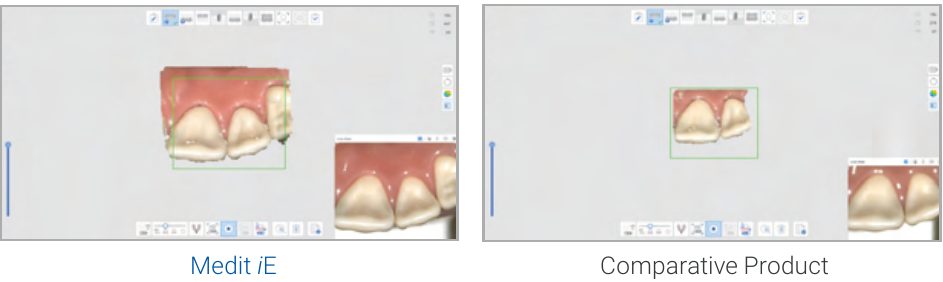

Wider View, Faster Workflows
18 × 15 mm field of view and 30 mm depth for broader, deeper capture.
- Capture more per pass
- Ideal for complex or posterior regions
- Reduces scan time

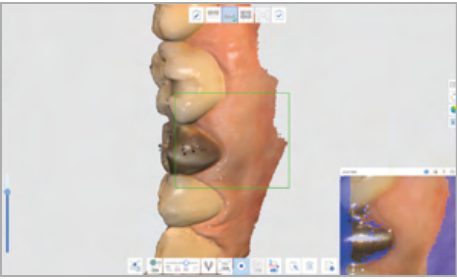

Sharper, Smarter Metal Scanning
Built-in smart filters for accurate scans on reflective surfaces.
- Metal-optimized filtering
- Reduced noise, clearer surfaces
- Reliable even in complex prosthetic cases

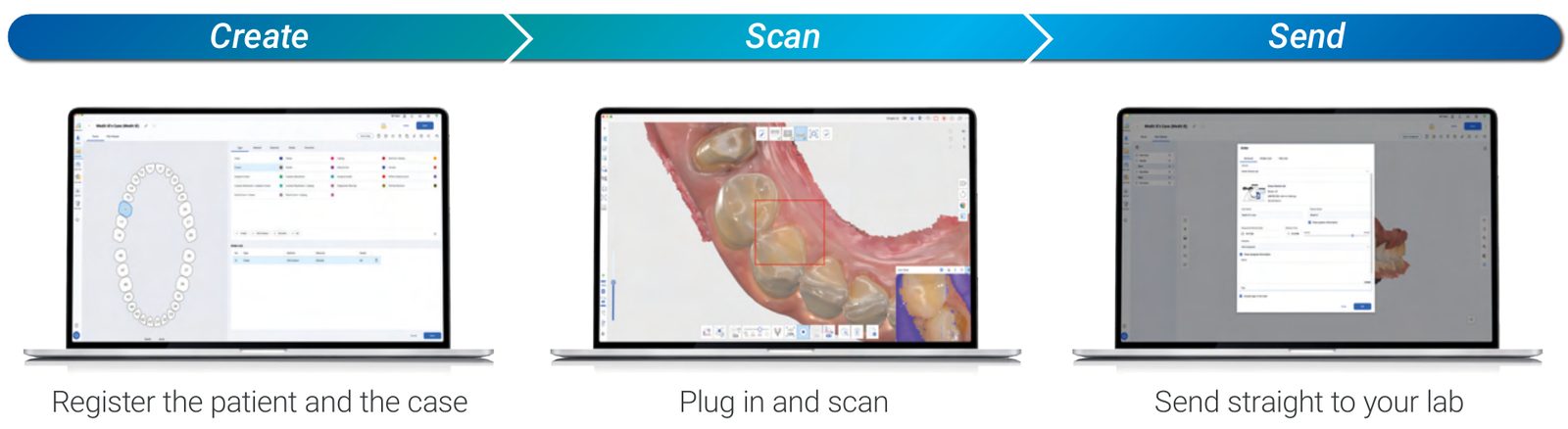

Scan & Send
From case creation to scanning to lab transfer. Everything everyday dentistry needs, included from day one.

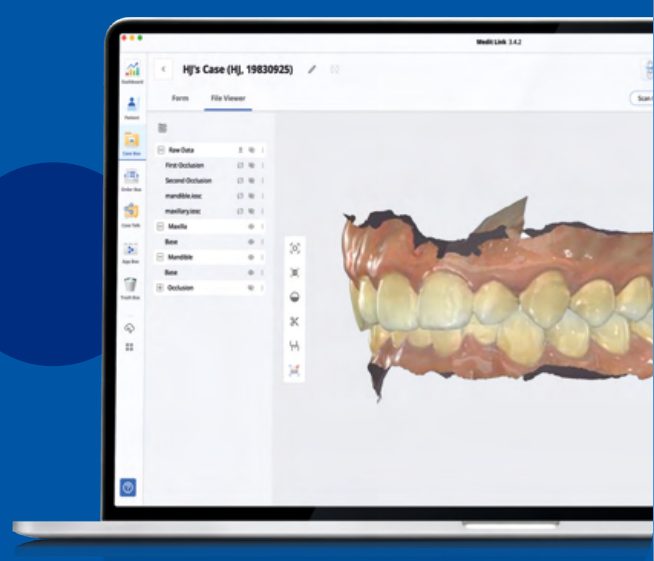

Medit Link
The cloud platform trusted by dental professionals worldwide.
- Case management to lab communication, all in one place
- Data protected in line with HIPAA, GDPR and regional security standards
- Free software updates bring new features and better performance
- Works with 150+ partner software through open formats
Expand Within Medit
Everything you add, and everything you move up to, stays in one Medit ecosystem.
Medit’s latest scan technology, with the right configuration for everyday dentistry.
Realtime Intelligence: real-time scan and prep quality checks while the patient is still in the chair.
Medit Apps: patient consultation and in-house design. Add only what your practice needs.
Added in minutes, no new hardware. Optional add-ons, sold separately.
When you’re ready for a broader range of care: the Medit i900 Series
Full-arch implant workflows with Medit SmartX.
Scan wirelessly while patients follow along on iPad.
One Medit account. Your cases, data and lab connections move with you. See the Medit i900 Classic and Medit i900 Mobility.
Why Medit
Brand in user ratings*
Intuitive software, frequent free updates and an open ecosystem.
Cases scanned with Medit
Scan performance proven across 100 million+ cases.
Dental professionals
Clinics and labs on Medit Link.
Partner integrations
A true open platform. Your data is never locked in.
Countries
Software updates, always free
Regional data security and compliance
*InsightsZ, Global IOS Category Series, Sentiment Analysis of Leading IOS Brands Vol. I (2025)
Medit iE Specifications
| Category | Medit iE |
|---|---|
| Type | Wired |
| Imaging technology | 3D-in-motion video technology / 3D full-color streaming capture |
| HD scan | Yes |
| Light source | LED |
| Scanning frame rate | 70 FPS (maximum) |
| Field of view / depth | 18 × 15 mm / 30 mm |
| Anti-fogging | Adaptive anti-fogging |
| Powder required | No |
| Handpiece dimensions | 223.4 × 36.7 × 35.3 mm (L × W × H) |
| Handpiece weight | 165 g |
| Full tip dimensions | Large: 36.1 × 34.1 × 90.8 mm · Medium: 36.1 × 34.1 × 90.4 mm (W × H × L) |
| Tip head dimensions | Large: 26.9 × 19.7 mm · Medium: 22.4 × 16.3 mm (W × H) |
| Reusable tip (autoclavable) | Up to 150 cycles. Gravity autoclave 135°C (275°F) for 10 min, dry 30 min · Pre-vacuum autoclave 134°C (273.2°F) for 4 min, dry 20 min · Gravity autoclave 121°C (249.8°F) for 30 min, dry 15 min |
| Interface | USB 3.1 Gen 1 (Power Delivery) |
| Cable | 2.0 m, detachable |
| Software | Medit Link (Windows / Mac) |
Why buy your Medit iE from CAD-Ray?
- 3-year warranty included with every Medit iE.
- Second scanner for $5,999: add a second iE, or add an iE to a Medit i900, on the same invoice (limit 1 per order).
- Shared accessories: the Medit iE uses the same tips and computers as the Medit i900, so multi-scanner practices stock one set of parts.
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
Medit iE FAQ
Is the Medit iE wired or wireless?
The Medit iE is a wired intraoral scanner. It connects over USB 3.1 Gen 1 with Power Delivery using a detachable 2.0 m cable. For wireless scanning, look at the Medit i900 Mobility.
Does the Medit iE require powder?
No. The Medit iE is powder-free and captures in 3D full color at up to 70 frames per second.
Are the Medit iE tips reusable?
Yes. The Large and Medium tips are autoclavable for up to 150 cycles.
What software does the Medit iE use?
The Medit iE runs on Medit Link for Windows and Mac, with free software updates and open-format export to 150+ partner software platforms.
What is the difference between the Medit iE and the Medit i900?
Both use Medit’s 3rd-generation optical engine and share the same tips and computers. The iE is configured for everyday Scan & Send dentistry, while the i900 Series adds workflows like All-on-X full-arch implant scanning with Medit SmartX and wireless scanning with Medit Link Express. You can move up to the i900 Series with the same Medit account and data.
Can I add a second Medit iE at a discount?
Yes. Buy a Medit iE or Medit i900 and add a Medit iE on the same invoice for $5,999 (limit 1 per order). Just select the add-on option on this page before adding to cart.
Product availability, regulatory approval status and release timelines may vary by country. Specifications from Medit iE brochure (iE-EN-202609-01).
