Description

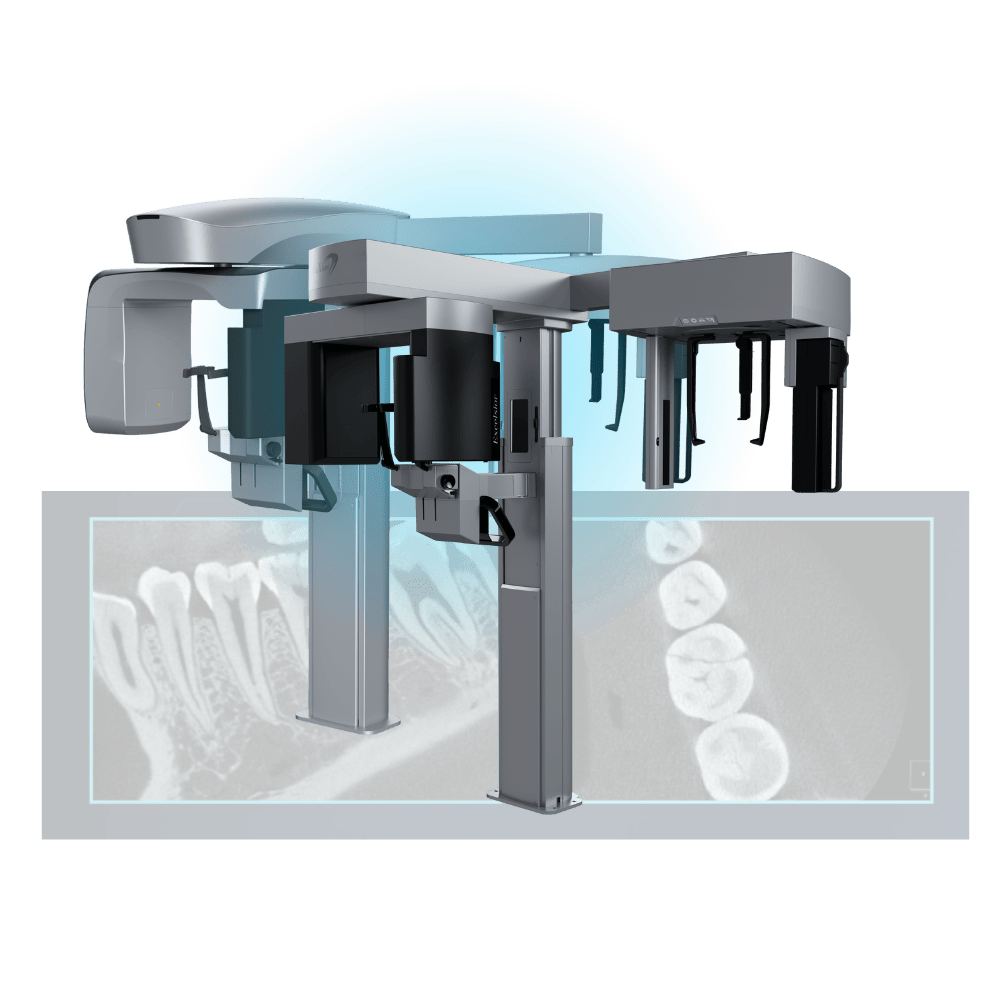

Why Choose the PreXion Excelsior MID?
The powerful system components of the PreXion Excelsior MID enable an extraordinary combination of the most precise 3D imaging, large image detail, low radiation exposure, reliable diagnostics and digital planning for all indications in modern dentistry, including periodontology, endodontics, implantology, orthodontics, maxillofacial surgery and more.
Its patient management system is designed for secure, networked communication of patient data across multiple rooms within a practice and integrates easily into existing infrastructure.

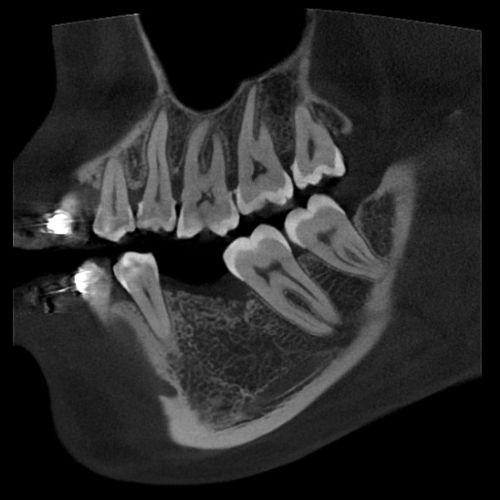

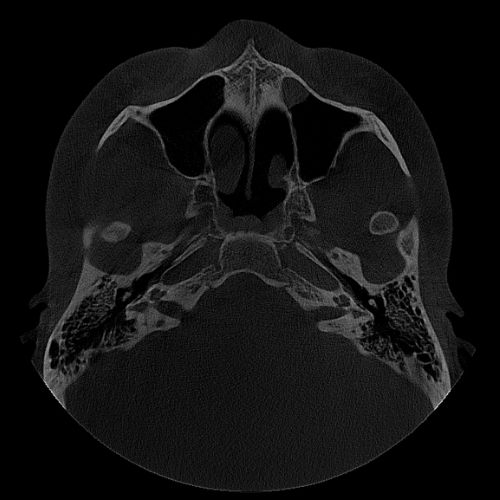

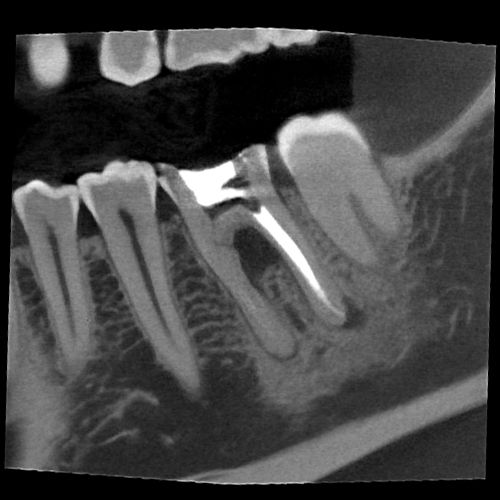

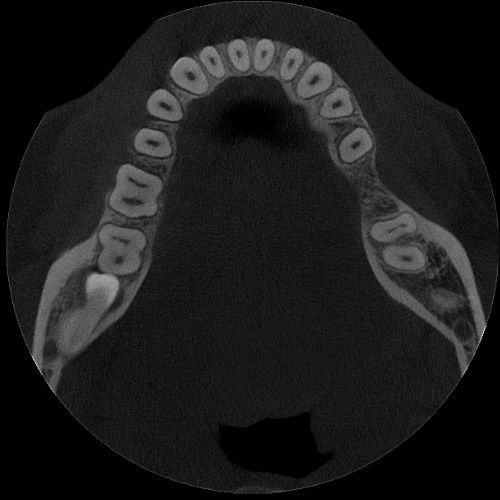

Field of View
3D Algorithms for Efficiency and Diagnostic Accuracy

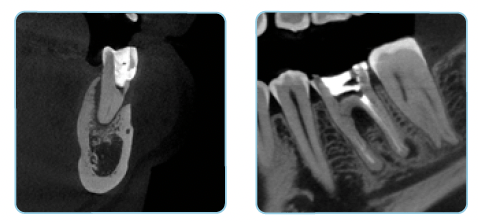

UHD Mode for Endodontics
Isotropic voxel resolution from 75 µm to 250 µm.

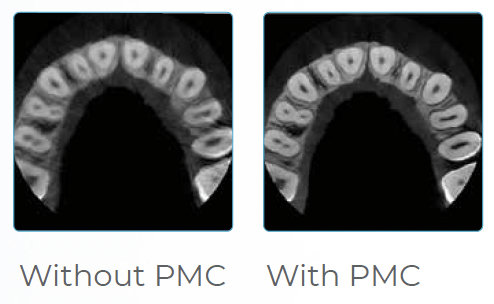

Patient Motion Correction (PMC)
Automatically corrects image imperfections caused by patient micro-movements, avoiding retakes and improving diagnostic accuracy.

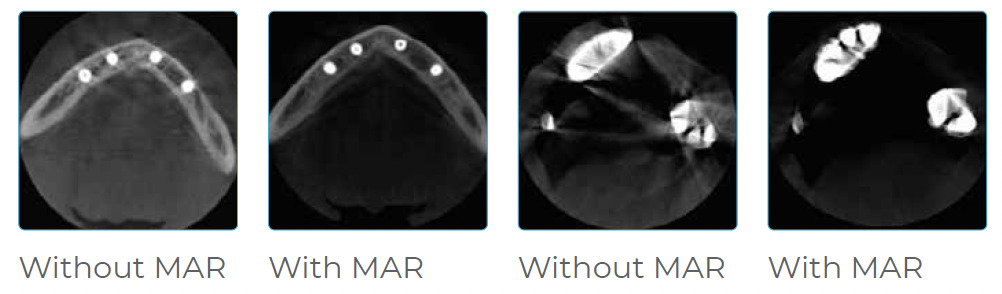

Metal Artifact Reduction (MAR)
Three selectable processing levels correct gutta-percha, implants, full-arch prostheses and metal restorations, in addition to automatic metal reduction. Images can be reprocessed for a better diagnosis without re-exposing the patient.
Software Features
With the precision and professional competence of PreXion, dental professionals have a powerful partner at their side.
2D Reports
Customizable annotations on panoramic and cephalometric images with arrows, circles and color highlights, plus implant planning directly on the panoramic view.
2D Manual & AI-Assisted Cephalometry
Cephalometric tracing either manually or with AI-powered automated landmark detection for faster, consistent orthodontic measurements.
3D Implant Planning
Mark the mandibular canal and position implant fixtures from an extensive library of real-size systems to determine ideal dimensions, depth and angulation. Compatible workflows support ordering surgical guides.
Airway Volume Measure
Segment airways, sinuses, the mandible and teeth by density values, with automatic volume measurements.
STL Conversion
Convert DICOM data into STL files for CAD/CAM workflows and 3D printing.
Virtual Endoscopy
CPR (Curved Planar Reformat) combined with virtual view technology generates an internal airway view along a defined path.
DICOM Fusion
Align and overlay multiple DICOMs for more accurate diagnostics and planning.
3D Reports
Flexible templates with drag-and-drop images; save locally or to the database as HTML, PPT or PDF.
At a Glance
| FOV options | 5 × 5, 9 × 6, 9 × 9, 16 × 9 cm |
|---|---|
| Voxel size | 75 µm – 250 µm (isotropic) |
| Image algorithms | UHD Mode, Patient Motion Correction, Metal Artifact Reduction (3 levels) |
| Software | 2D/3D Reports, AI-assisted cephalometry, implant planning, airway volume, STL conversion, virtual endoscopy, DICOM fusion |
| Networking | Multi-room patient management system |
Get pricing on the PreXion Excelsior MID
Pricing depends on configuration, options and installation. Contact CAD-Ray for a quote, a demo, and details on installation, training and support.
