Description
A Multi-Purpose Diagnostic Tool

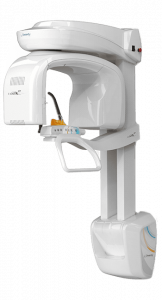

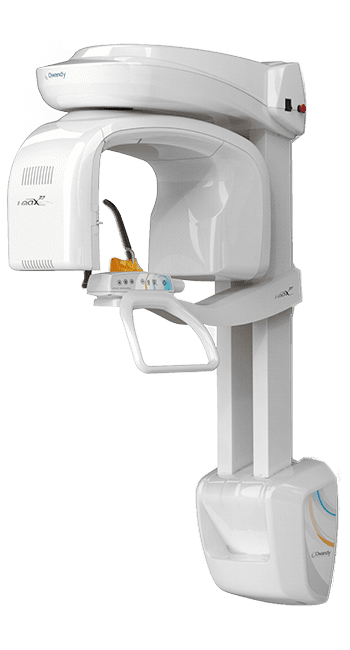

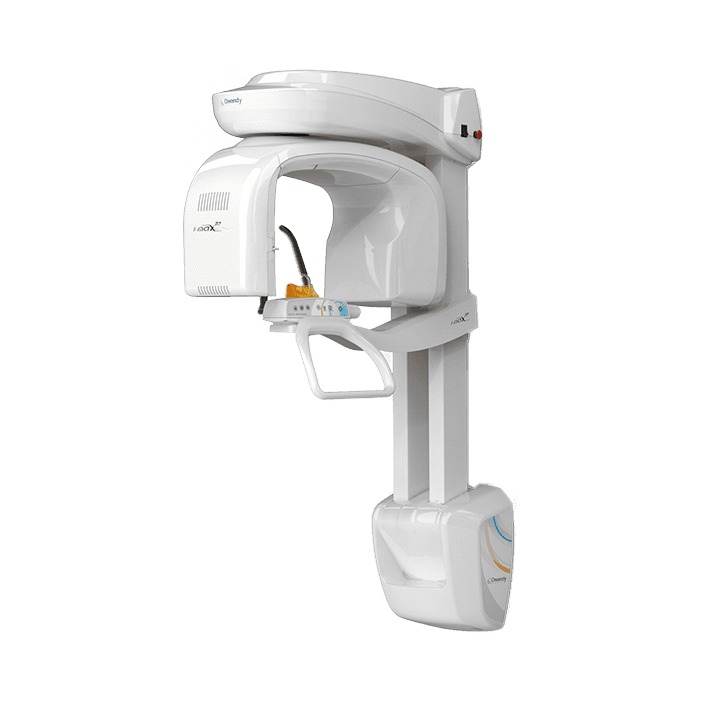

Ask more of your panoramic! Although there are 1001 ways to treat a particular case, there is only one correct diagnosis — and the I-Max 3D has been developed with this concept in mind. Functionalities include 2D, 3D, surgical guides and a scanner, designed to help you obtain a more accurate diagnosis.

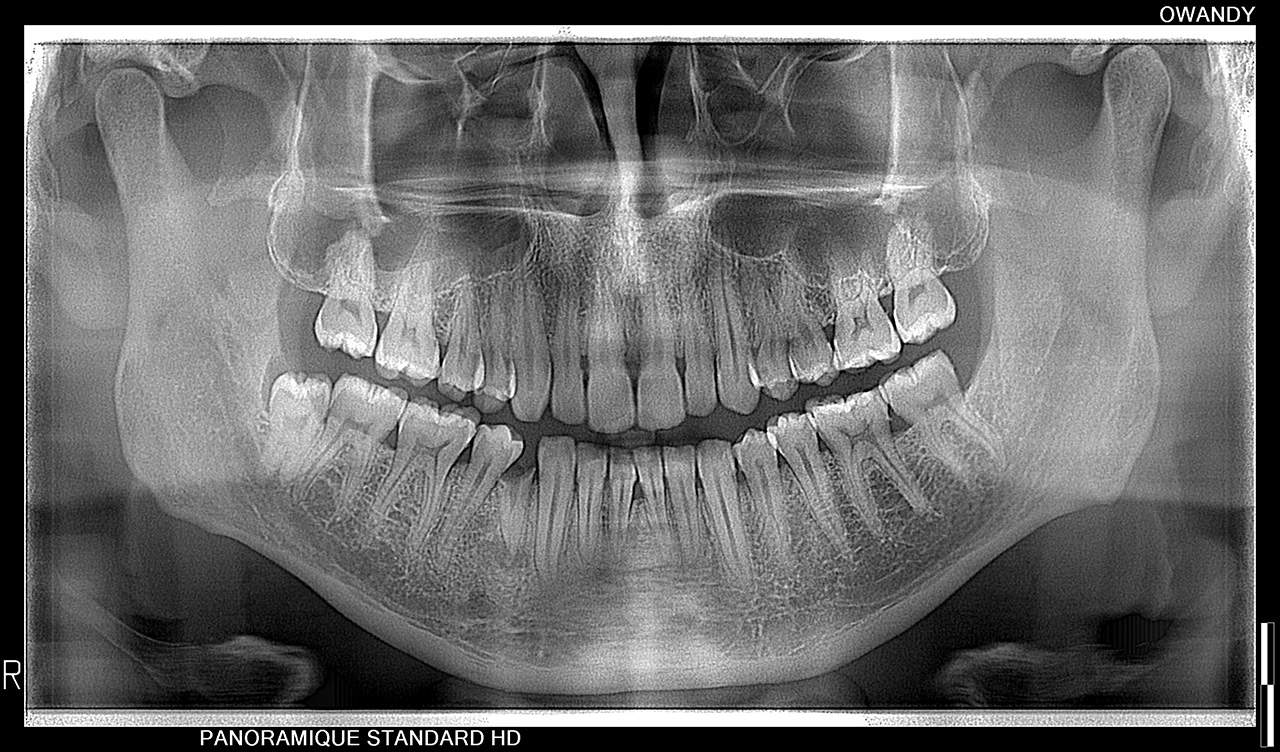

2D Panoramic
Carry out all the examinations you need, in ultra-high definition.
3D Panoramic
Probe deeper to achieve more accurate diagnostics.
CAD/CAM
Scan your impression trays, plaster models and radiological guides.
Surgical Guides
The I-Max 3D and QuickVision 3D let you create surgical guides that are ready to print.
Key Benefits
Takes Up Zero Floor Space
Wall mounting means you can walk around the unit more easily.
Sleek & Stylish
A sleek, stylish design delivering optimum performance.
3D Cone Beam Multi-FOV
18 3D programs with FOV ranging from 12 × 10 cm to 5 × 5 cm.
Exceptional Image Quality
View all clinical and anatomical details with maximum precision.
Creation of Surgical Guides
Safer surgery with greater control over movements.
A Controlled Budget
An excellent quality/performance ratio.
Specially Adapted Programs
The I-Max 3D features a wide range of programs for any type of examination your practice requires (child / adult). With ALI-S (Automatic Layers Integration System), the unit automatically selects the best sections to display a perfect image, without operator involvement.
- Complete dental volume + condyles (optional)
- Left / right TMJ
- Sinuses
- Maxillary volume / mandibular volume
- Frontal maxillary and frontal mandibular
- Left / right maxillary premolar and molar
- Left / right mandibular premolar and molar

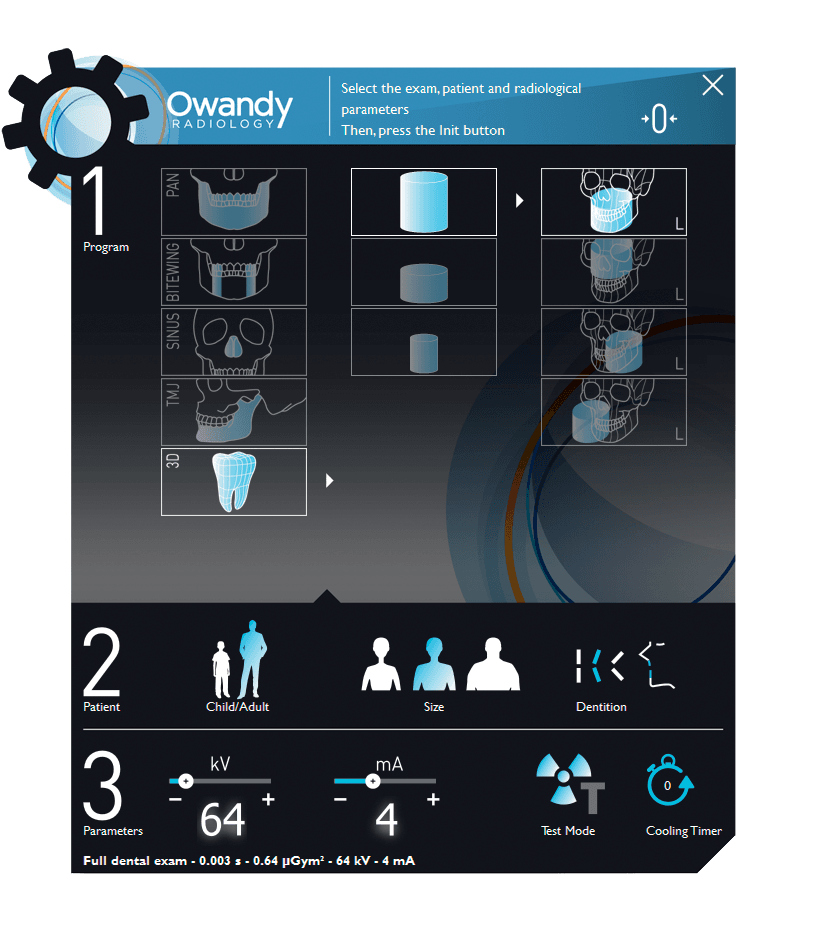

Easy to Use
The I-Max 3D adapts to you and your changing needs. Its user-friendly interface lets you switch easily between 2D and 3D exams.
Dental CAD/CAM Made Easy
No need for optical impression cameras! Consolidating all the stages that let bone and soft tissue be superimposed makes CAD/CAM easier than ever. Scan your plaster or alginate impressions and get a digital model in just a few minutes, then print your guide yourself or export the .stl file to outsource printing.
Cone Beam Exams
Use your predefined patient programs.
Digital Impressions
Scan plaster or silicone molds to create a digital impression.
Implant Positioning
Position the implant with the crown in QuickVision 3D while controlling angulation.
Print Your Guides
Export the .stl file to print your surgical guide.

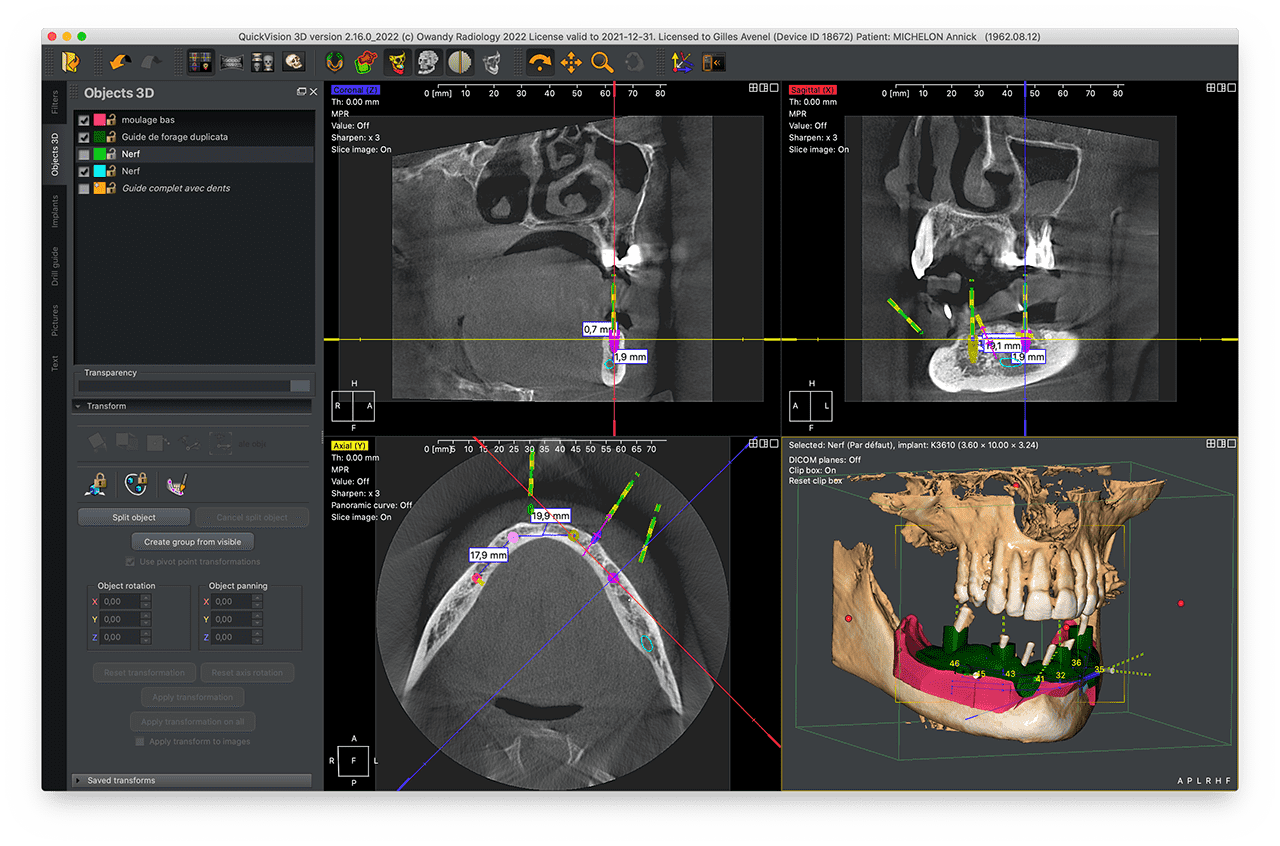

QuickVision 3D Software
QuickVision 3D is a complete application that generates panoramic images, cross-sections and bone models from axial images, helping you identify the mandibular canal and view a 3D bone model to calculate bone density. It simulates implant placement on 2D and 3D models and identifies key anatomical characteristics — exact implant location, possible collisions and more — for faster, safer and more efficient implant surgery. Airway examination is also supported.
QuickVision 3D – Recommended Minimum Computer Configuration
| Operating system | Windows 10 (64-bit) / macOS 10.6 or higher |
|---|---|
| Processor | Core i5 – 3.0 GHz or higher |
| Memory | 8 GB |
| Disk space – software | 10 GB |
| Disk space – data | 1 TB |
| Graphics | 2 GB video card or higher |
| Network | 1 Gbit |
| Backup | External hard disk, Internet, etc. |
If a 3D panoramic unit is connected to the computer, add the equipment specifications to the QuickVision 3D requirements.
At a Glance
| Max FOV | 12 × 10 cm |
|---|---|
| 3D programs | 18, from 5 × 5 to 12 × 10 cm |
| Modalities | 2D Panoramic, 3D CBCT, model scanning |
| Cephalometric | Optional |

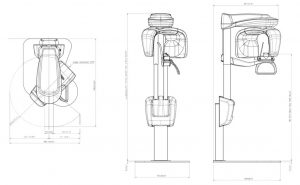

| Mounting | Wall-mounted, column-mounted or standalone |
| Software | QuickVision 3D (included) |
Get pricing on the Owandy I-Max 3D
Pricing depends on configuration, options and installation. Contact CAD-Ray for a quote, a demo, and details on installation, training and support.
