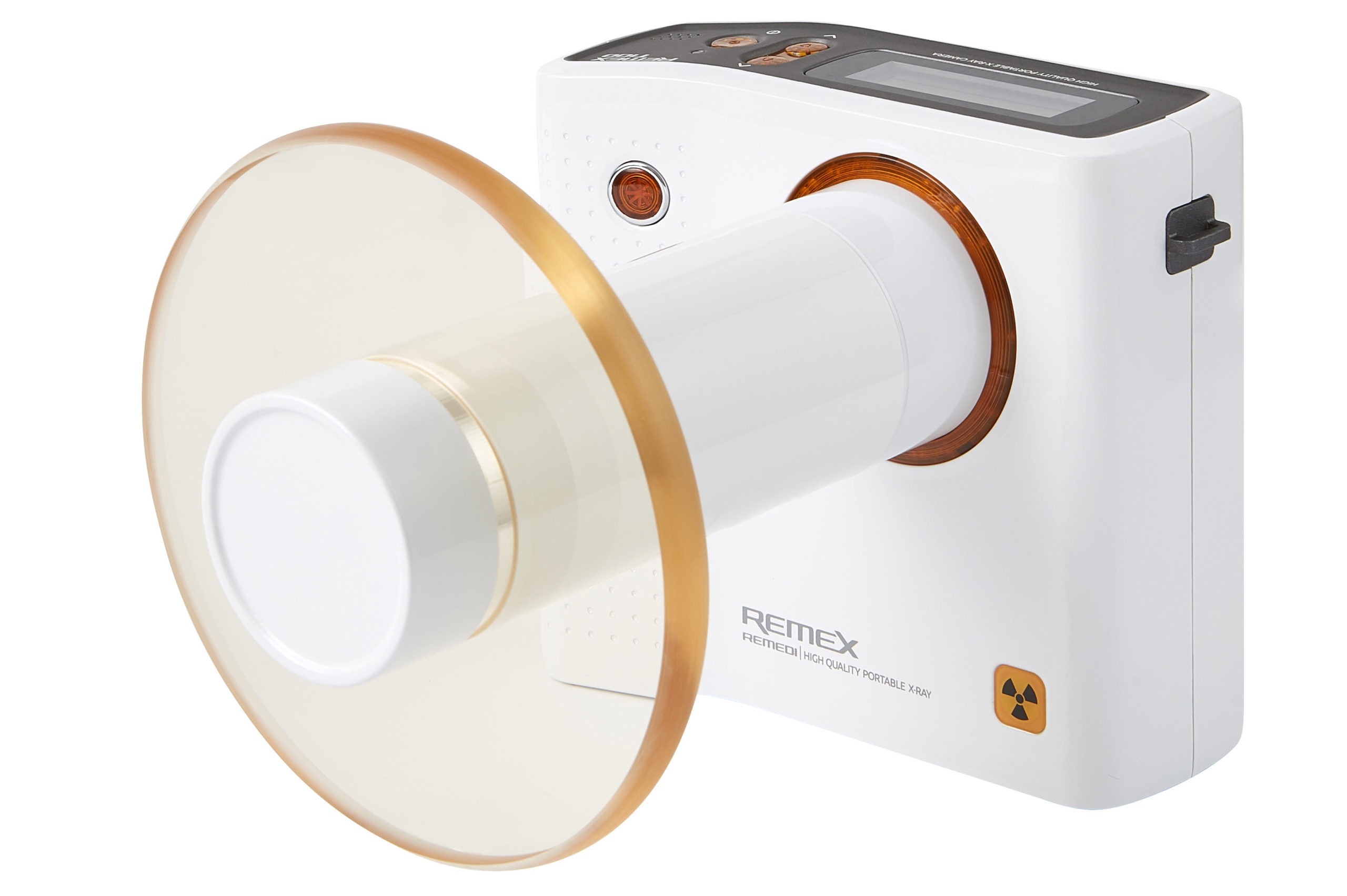

REMEX T-100 Portable Handheld X-Ray



  • Convenient
  • Lightweight, cordless, easily transportable
  • No awkward arms to manipulate; no drift
  • No need for special stands, cables, remotes
  • Hundreds of diagnostic quality images from a single battery charge
  • Sharp, clear images
  • Works with sensors, film, phosphor plates
  • 0.4mm focal spot produces sharp, high-resolution images
  • Safety
  • Low patient dosage
  • Internal shielding protect the operator
  • Studies show yearly operator exposure is equivalent to or less than exposure from a typical wall-mounted x-ray




  • Anode Angle: 12.5 degrees
  • Total Filtration: Min. 1.5mm
  • AlInherent Filtration: Min. 1.0mm
  • AlX-ray Coverage:Ø60mm at SDD 200mm

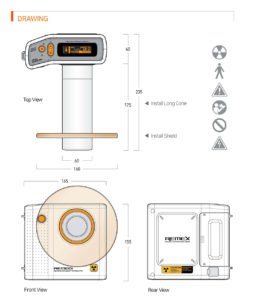

  • Main Body Size: 165 x 60 x 155mm [WxDxH]
  • Cone Size:  175 x 60mm [LxW]
  • Backscatter Shield Size:  160 x 12mm [ØxD]
  • Weight:  2.2kg [Including Cone 190g, Shield 300g]

Power Requirement

  • Rechargeable Battery: DC 11.1v, 1500mAh
  • Charger Input:  100~240VAC, 50~60Hz, 1.0A
  • Charger Output:  12.6Vdc, 1500mAh


Constant Potential High-Voltage Generator


  • X-ray Tube Voltage : 70kv
  • X-ray Tube Current: 2mA
  • Focal Spot Value:  0.4mm
  • Exposure Time:  0.01 ~ 1.3sec
