Shining 3D · chairside capsule printer

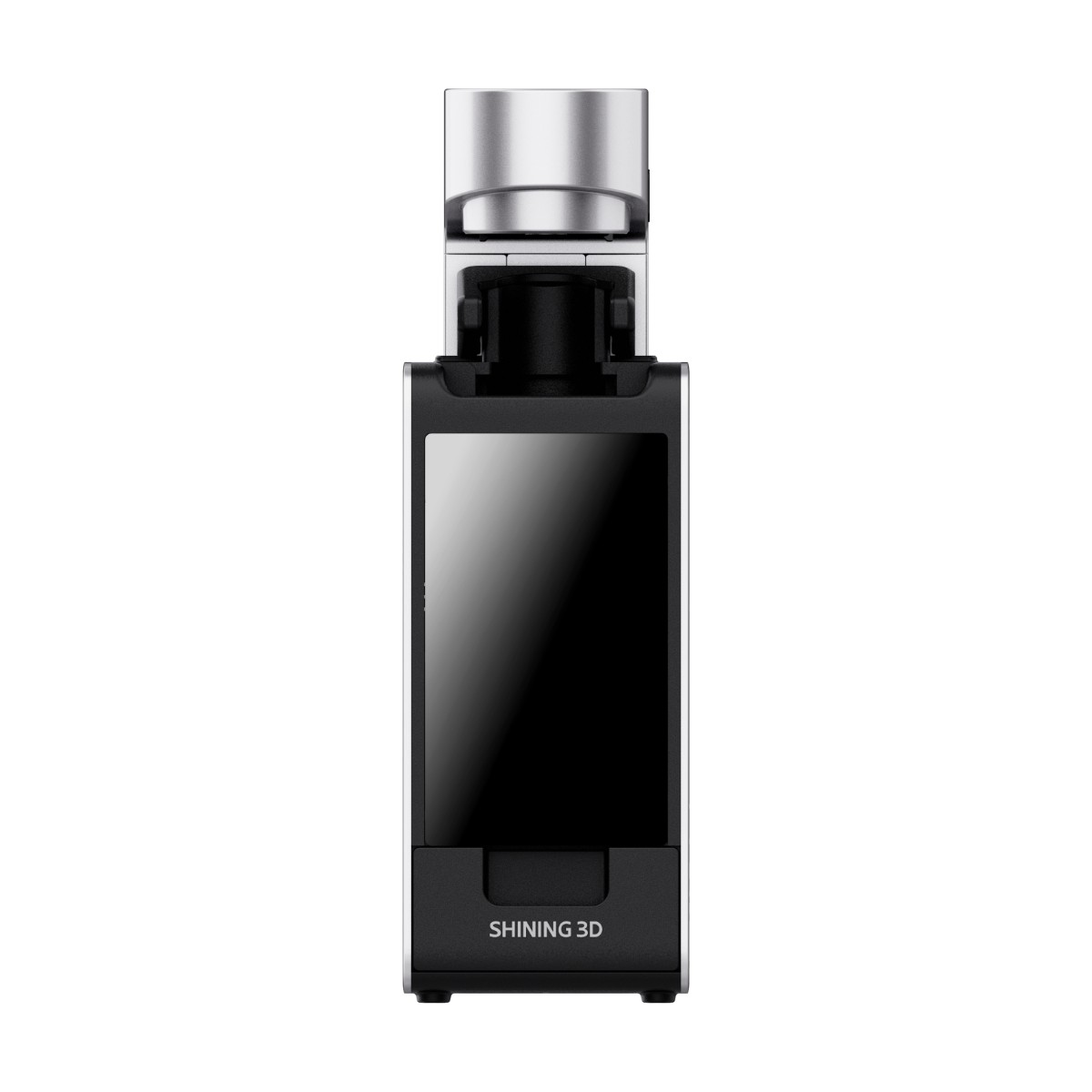

Shining 3D Ceramix-Nano
Print and cure a permanent crown in about 15 minutes.
Ceramix-Nano is an ultra-compact 4.5 lb capsule printer that prints and cures in one unit. APS technology and LumiCera high-ceramic capsules produce crowns, veneers, inlays/onlays and up to 3-unit bridges in a simple scan-design-print-deliver workflow.
What’s in the bundle
- ✓Shining 3D Ceramix-Nano printer (built-in curing)
- ★One box of LumiCera CB200 A2 capsules (3-pack) — choose your shade
- ★50 AI crown design credits — redeem with your printer serial on the Shining 3D dental cloud; use within 6 months of activation
Tick any of these below before adding to cart.
- +Aesthetic Curing Kit for Ceramix-Nano
- +Extra LumiCera capsule 3-packs (A1, A2, B1, BL, C2)
- +Additional design credits (50 / 500 / 1,000)
- +Two-year extended warranty
Key features
Print + cure in one
Built-in curing finishes the restoration without a separate cure unit.
LumiCera ceramic capsules
Biocompatible, 55% filled capsules — FDA Class II 510(k) cleared for permanent use.
AI design in minutes
Shining 3D AI Design generates crown designs in under 2 minutes from your scan.
Truly portable
About 2 kg and calibration-free; can run from a 100 W USB-C power bank.
Ceramix-Nano Specifications
| Category | Ceramix-Nano |
|---|---|
| Technology | APS (Adaptive Pneumatic Stereolithography), DLP optical engine |
| Wavelength | 405 nm |
| XY resolution | 50 µm |
| Single crown | About 8–11 min print + 3 min built-in cure |
| Indications | Crowns, veneers, inlays, onlays, up to 3-unit bridges |
| Material | LumiCera capsules, 55% filler — shades BL, A1, A2, B1, C2 |
| Leveling | Calibration-free auto-leveling |
| Size / weight | 87 × 131 × 276 mm · about 2 kg (4.5 lb) |
Specifications from Shining 3D.
Why buy your Ceramix-Nano from CAD-Ray?
- Professional installation and training by CAD-Ray technicians available — ask your rep or add it where offered below.
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Capsules, credits and accessories on our Shining Resins, Tanks and Accessories page.
Ceramix-Nano FAQ
Do I need a separate curing unit?
No. Ceramix-Nano prints and cures in the same unit; the Aesthetic Curing Kit is an optional add-on.
How do I use the free AI crown designs?
Enter your printer serial number on the Shining 3D dental cloud. The 50 credits expire six months after device activation.
How many crowns per capsule?
Up to 3 crowns per capsule.
