Description
3DNext launch offer · Promo code Q426NANO

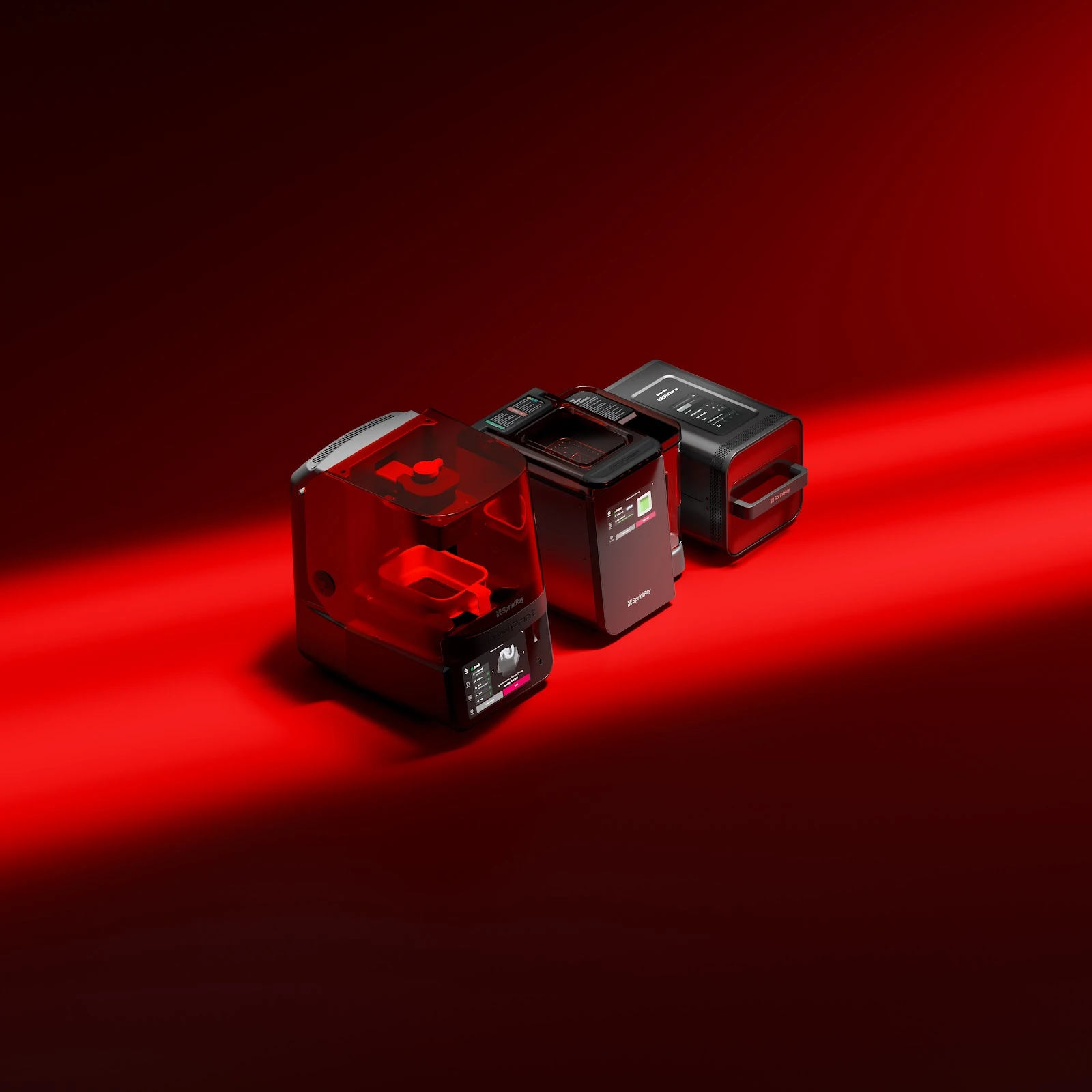

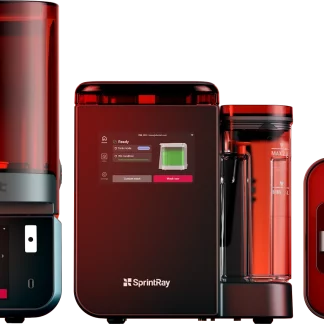

The Nano Ecosystem: the complete 3D printing workflow, nanofied.
The Nano Series is a complete chairside workflow — print, wash and cure — built for everyday dentistry. NanoPrint handles the most common cases, supports the full SprintRay material library and 16 indications, and can accommodate a full denture case, all within a compact 72 cm footprint.
Get NanoPrint, NanoWash and NanoCure together for $9,995 — a savings of $4,598 off the $14,593 retail price. Want restorations too? Add the SprintRay Midas 3D Printer for $8,995 when combined with this promo.
Three devices, one workflow
Print. Wash. Cure.
NanoPrint
Compact footprint, powerful precision.
- 35 µm XY, 385 nm light engine
- RFID tank & platform detection
NanoWash
Clean, quiet, ready in minutes.
- Whirlpool wash & dry
- Sealed, zero-mess design
NanoCure
Job handoff keeps it connected.
- Dual-wavelength 365 + 385 nm
- No nitrogen required
Ecosystem
Fits under 30 in of counter.
- Platform goes print → wash
- SprintRay Cloud connected
What’s included & your savings
| Product | SKU | Retail | Promo |
|---|---|---|---|
| SprintRay NanoPrint 3D Printer | SRI-0102083 | $8,995 | $6,300 |
| SprintRay NanoWash | SRI-0504045 | $1,999 | $1,320 |
| SprintRay NanoCure | SRI-0504025 | $3,599 | $2,375 |
| Nano Ecosystem total | $14,593 | $9,995 | |
| Optional: SprintRay Midas 3D Printer | SRI-0102047 | $10,995 | $8,995 |
Optional add-ons at retail: Ecosystem ProTection Plan (Printer, Wash, Cure) – 1 yr $2,022; Nano Ecosystem 1 Day In-Office Training Bundle (includes NanoPrint Standard Tank & Dental Model Slate resin) $2,499.
Promotion details
| Promo code | Q426NANO |
|---|---|
| Eligibility | US customers only; cannot be combined with other SprintRay promotions or trade-in/trade-up programs |
| Financing | 0% for 12 months on SprintRay through EverBank for orders over $5,000 (subject to credit approval) |
| Availability | Orders accepted now; ships beginning November 2, 2026 |
| Terms | SprintRay reserves the right to modify or terminate this promotion at any time. Prices in USD and exclude freight and taxes. |

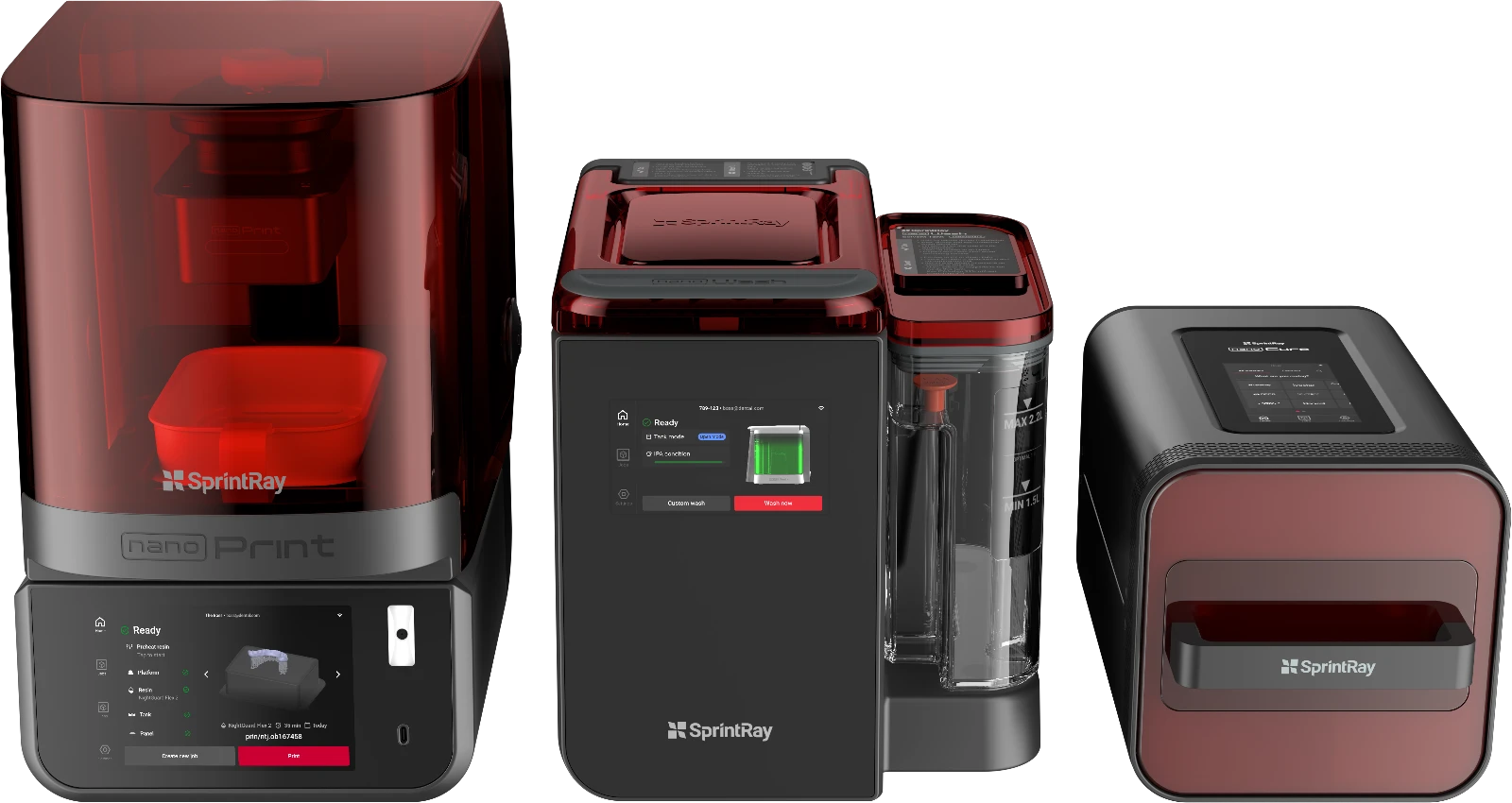

Nano Series side by side
| NanoPrint | NanoWash | NanoCure | |
|---|---|---|---|
| Role | 3D printing | Automated wash & dry | Post-curing |
| Core technology | 385 nm UV-A LED light engine, 35 µm Gorilla® Glass optical panel | Whirlpool washing, one-touch presets | Dual-wavelength 365 + 385 nm LED, nitrogen-free; 180 W heater to 100 °C |
| Capacity | 105 x 75 mm heated build platform; 150 mL RFID resin tank | 1.6–2.2 L RFID-tracked IPA tank | 4.5 x 4.5 x 1.5 in envelope — up to 4 full-arch models |
| Speed | Up to 2.9 in/hr (material dependent) | 6-minute cycle | Models 2 min · surgical guides & night guards 4 min · restorations & hybrid dentures 5 min · dentures 15 min |
| Controls | 7″ glass touchscreen, 8-core computer | One-touch presets | 5.5″ color touchscreen, auto safety shutoff |
| Connectivity | Dual-band Wi-Fi, Bluetooth, Ethernet, USB-C | — | Dual-band Wi-Fi, Ethernet, USB-C; SprintRay Cloud Job Handoff |
| Dimensions (W x D x H) | 9.8 x 14.8 x 16.1 in (lid closed) | — | 7.9 x 8.0 x 13.5 in |
| Weight | 40.8 lb shipping | — | 22 lb |
| Retail | $8,995 | $1,999 | $3,599 |
NanoCure technical specifications
| Cure technology | Dual-wavelength 365 + 385 nm LED, nitrogen-free; 34 individually self-calibrating LEDs; 95% light uniformity (AI-optimized LED layout) |
|---|---|
| Heating system | 180 W heater, 100 °C maximum; automatic warmup via Job Handoff |
| Curing envelope | 4.5 x 4.5 x 1.5 in (11.4 x 11.4 x 3.8 cm) — up to 4 full-arch models |
| Curing speed | Models: 2 min · Surgical guides: 4 min · Night guards: 4 min · Cemented restorations: 5 min · Hybrid dentures: 5 min · Conventional dentures: 15 min |
| Materials | Complete SprintRay materials library; over-the-air curing-profile updates; user-created profiles supported |
| Software | SprintRay Cloud-connected with Job Handoff across SprintRay devices; lifetime free software and curing updates |
| User controls | 5.5″ color touchscreen; automatic safety shutoff |
| Connectivity | Dual-band 2.4 / 5 GHz Wi-Fi; Ethernet; USB-C |
| Unit dimensions (W x D x H) | 7.9 x 8.0 x 13.5 in (20 x 20.5 x 34.5 cm) |
| Weight | 22 lb (10 kg) |
Nano Series parts & accessories
Why buy from CAD-Ray
The USA’s leading distributor of fully open digital dentistry solutions. Every CAD-Ray system includes on-site installation, hands-on in-office workflow training, and ongoing support from our full-time phone and remote support team.
