SprintRay Nano Series
NanoPrint: compact footprint, powerful precision.

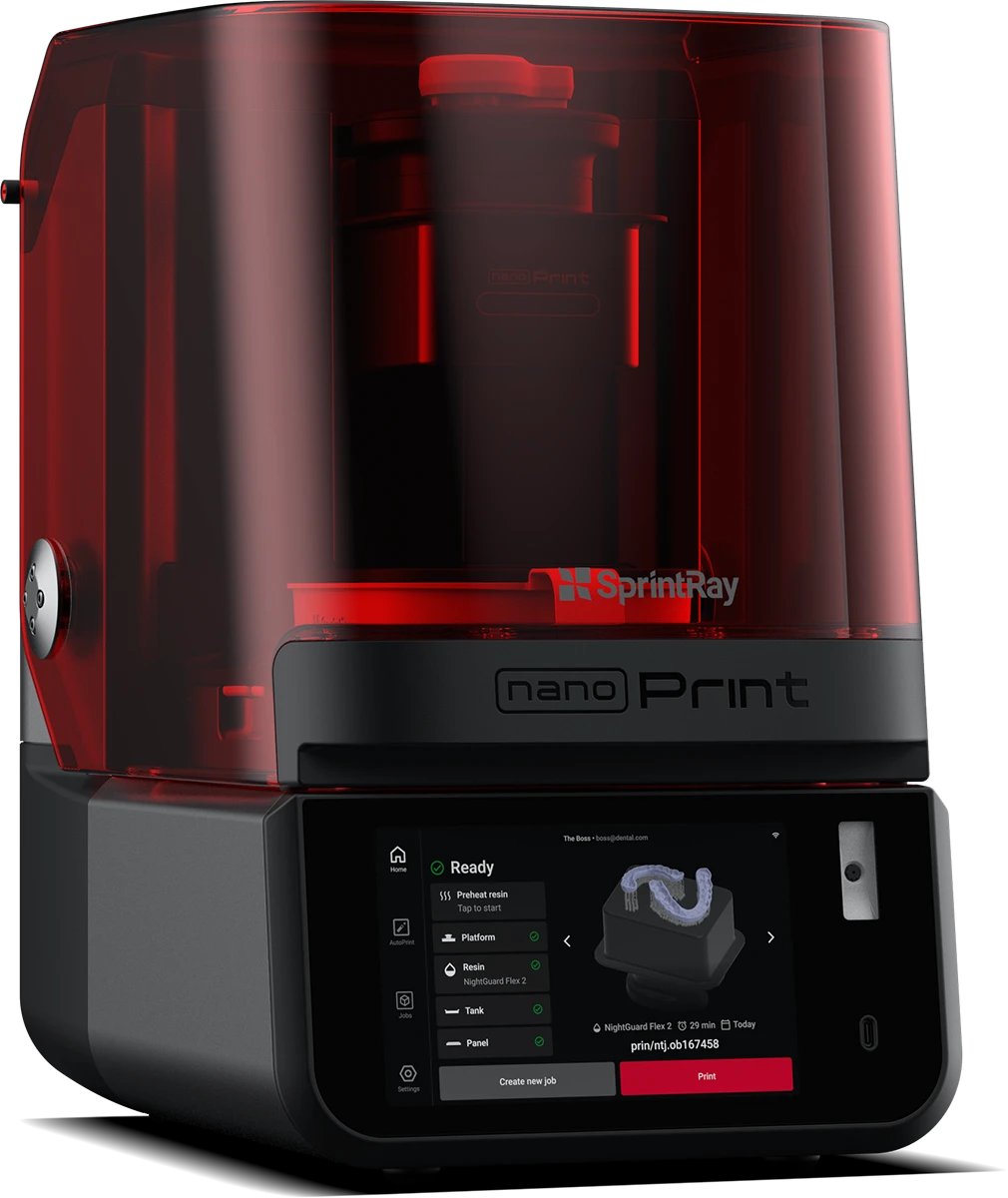

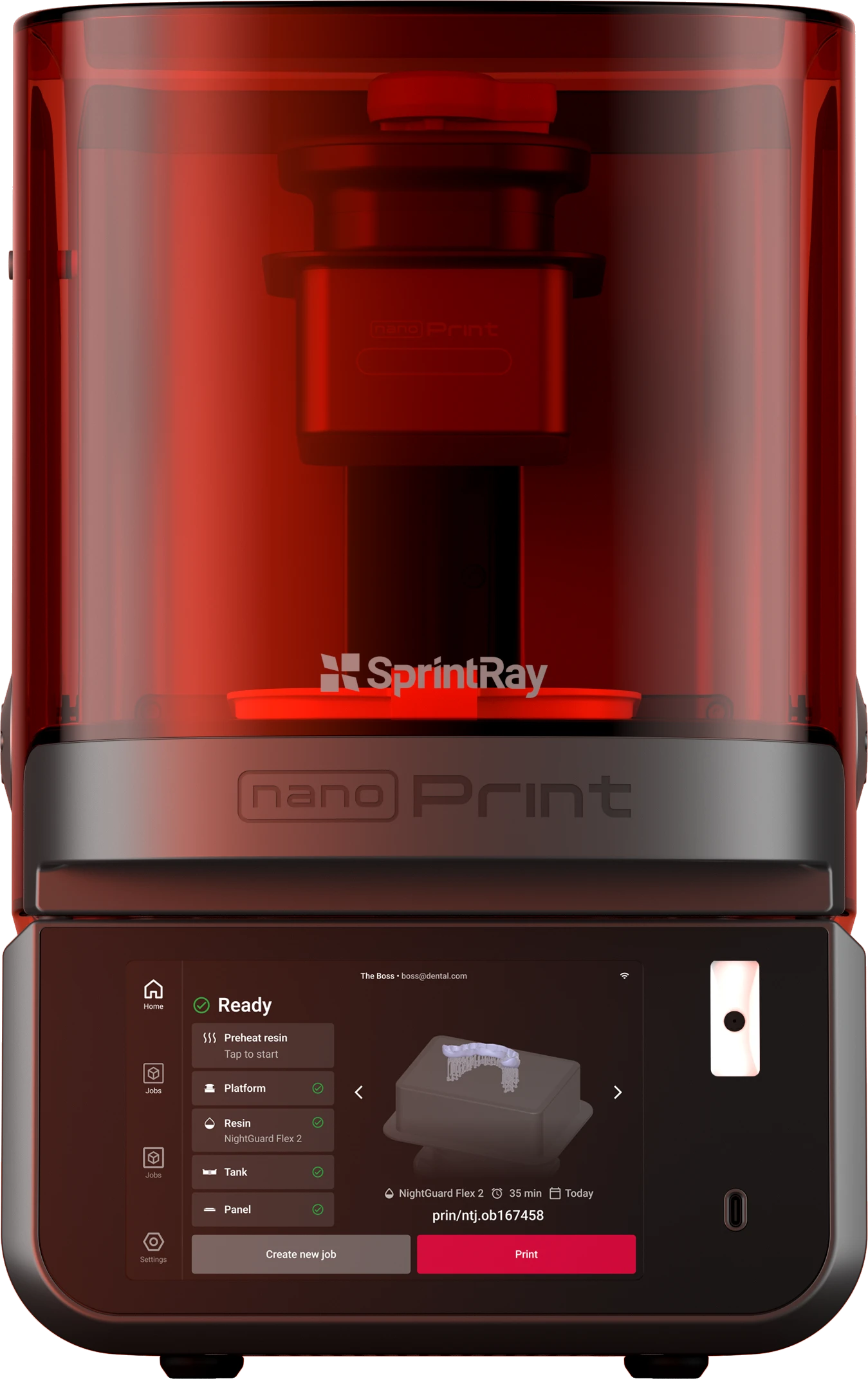

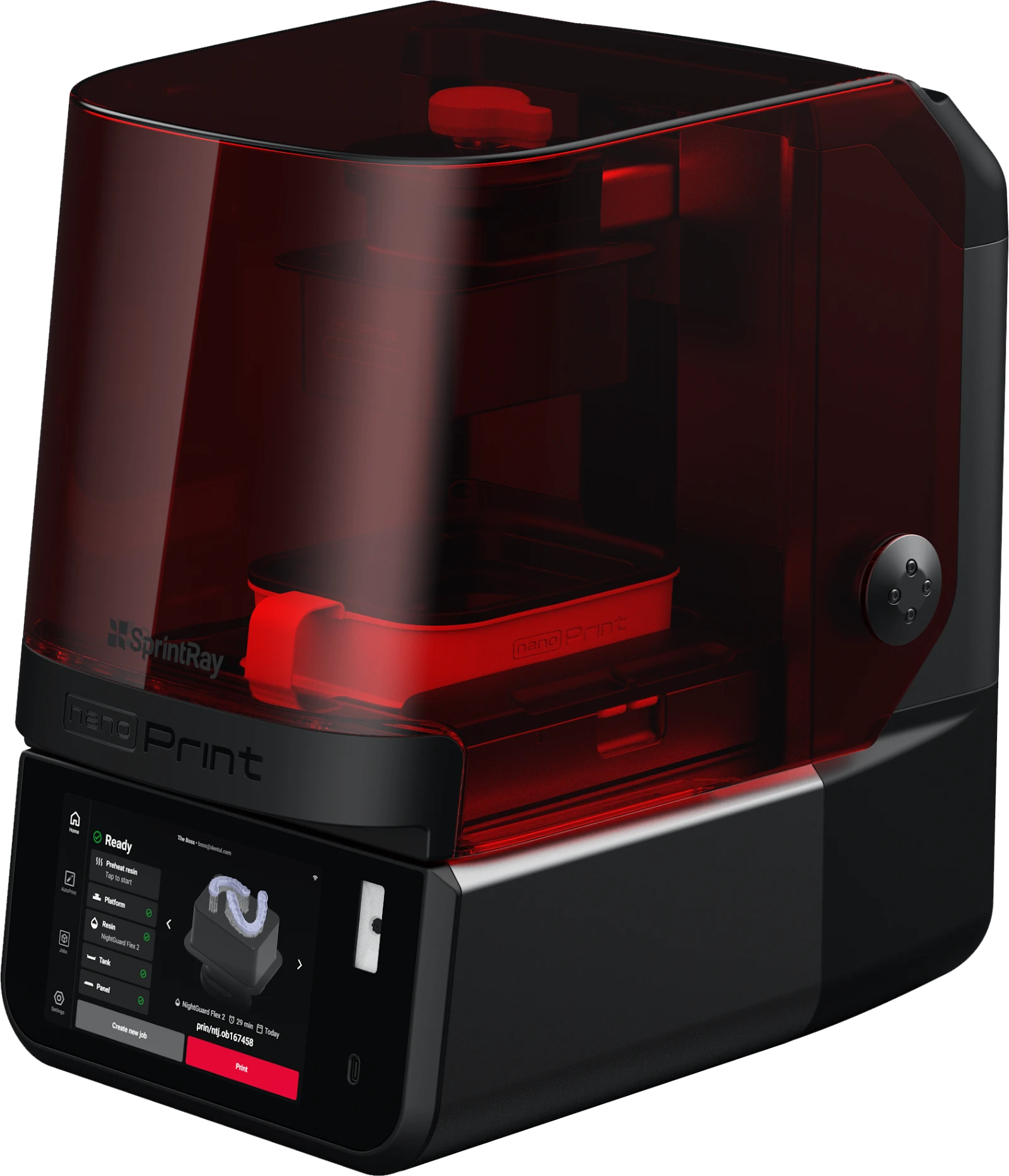

SprintRay NanoPrint is a precision dental 3D printer built to deliver professional-grade accuracy from a remarkably compact footprint. A 385 nm light engine paired with 35-micron XY resolution, automatic tank and platform detection, and SprintRay Cloud connectivity make in-office printing effortless for every practice.

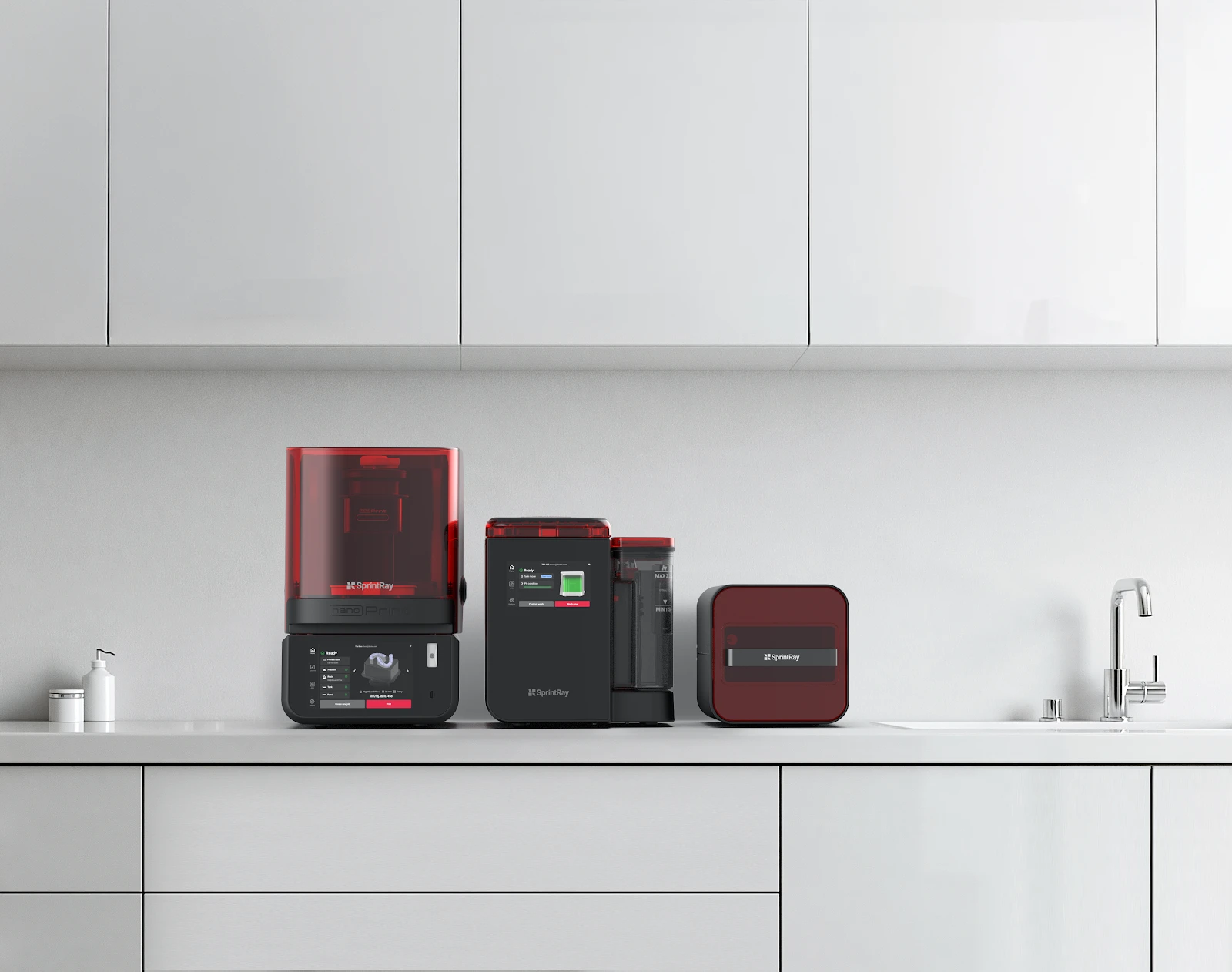

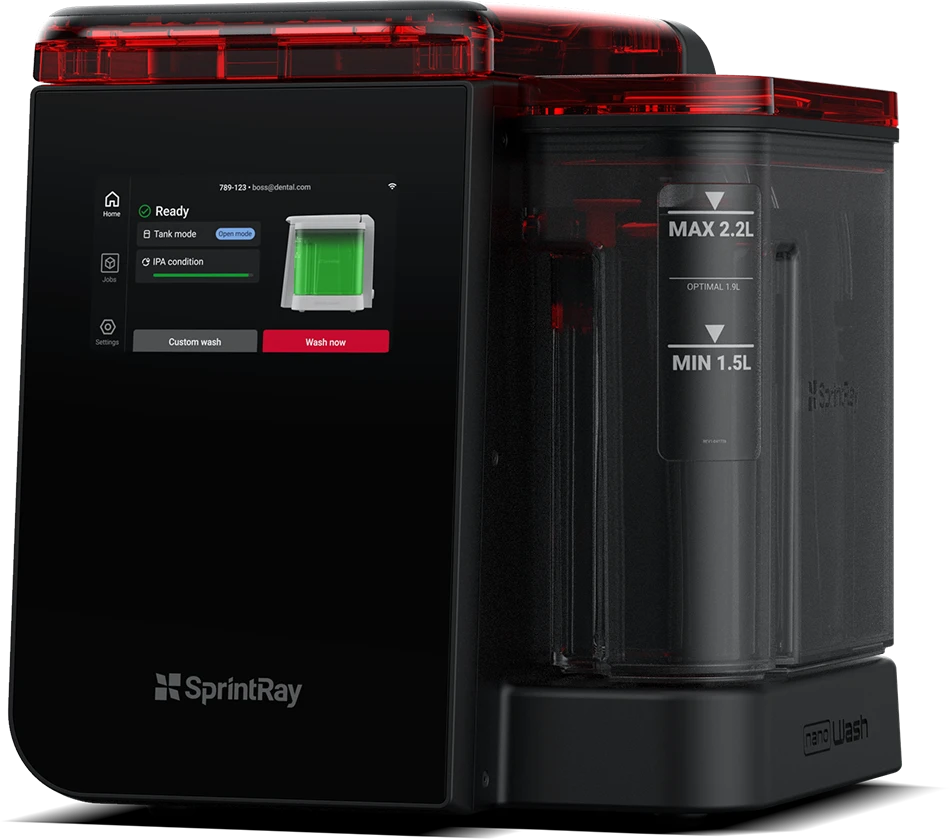

NanoPrint handles the most common chairside cases, supports the full SprintRay material library and 16 indications, and can accommodate a full denture case. Pair it with NanoWash and NanoCure for a complete print, wash and cure workflow in under 30 inches of counter space.
Built for everyday dentistry
Print chairside
Precision
Factory-calibrated accuracy.
- 35 µm Gorilla® Glass optical panel
- 385 nm UV-A LED with dedicated cooling
Effortless
Swap materials in seconds.
- RFID resin tanks detected automatically
- Magnetic quick-lock heated platform
Connected
Cloud-ready workflow.
- Dual-band Wi-Fi, Bluetooth, Ethernet
- Direct print via front USB-C
Compact
Small footprint, full capability.
- 9.8 x 14.8 x 16.1 in (lid closed)
- Full SprintRay material library
Technical specifications
| Resin curing unit | 385 nm UV-A LED with dedicated cooling; factory calibrated for light uniformity and intensity |
|---|---|
| Minimum feature size (XY) | 35 µm (0.035 mm) |
| Layer thickness options | 50, 100, 170 µm (material dependent) |

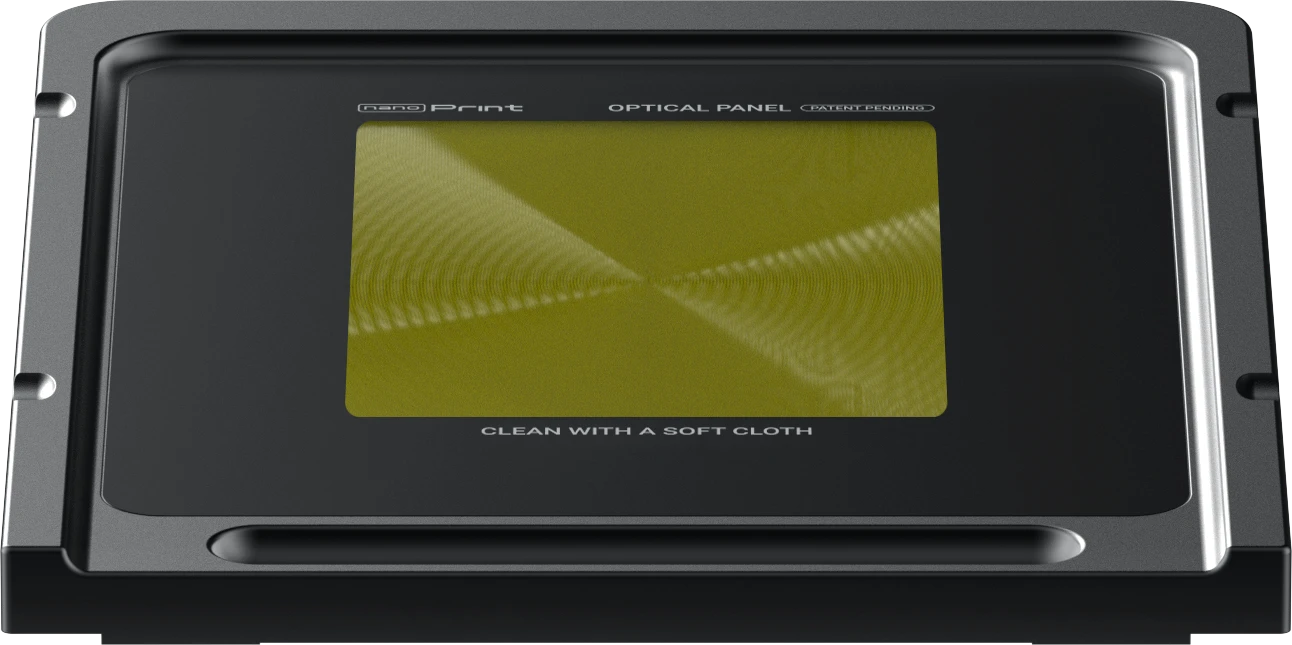

| Optical panel | 35 µm Optical Panel, slide-in quick-release |

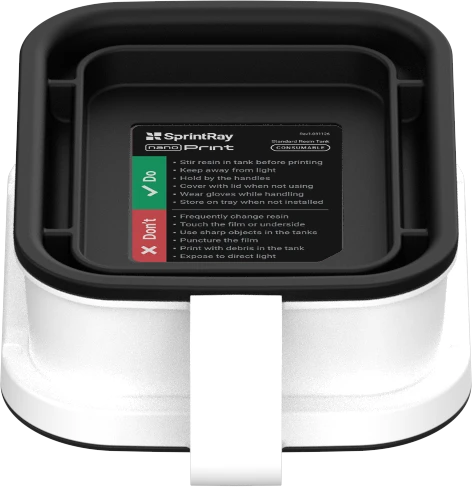

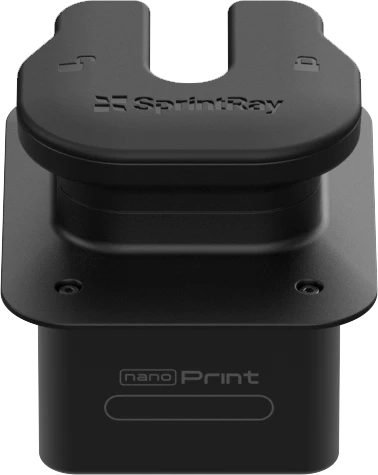

| Standard kit | Resin Tank: 150 mL capacity, protective cover, RFID tracking Build Platform: 105 x 75 mm build area, onboard automatic heater, anodized aluminum build surface |
| Print speed | Up to 2.9 in. per hour, material dependent |
| User controls | All-glass digital dashboard with 7″ touchscreen; Android-based Print OS; 8-core onboard computer |
| Connectivity | Dual-band 2.4 / 5 GHz Wi-Fi and Bluetooth; local network via Wi-Fi b/g/n/ac/ax or Ethernet; direct print via front-facing USB-C |
| Power requirements | 100–240 V, 50–60 Hz, 300 W |
| Operating temperature | 70–85 °F (21–29 °C) |
| Unit dimensions (W x D x H) | Lid closed: 9.8 x 14.8 x 16.1 in (25 x 37 x 41 cm) Lid open: 9.8 x 18.9 x 20 in (25 x 48 x 51 cm) |
| Shipping dimensions & weight | 19.7 x 15.7 x 22.8 in (50 x 40 x 58 cm); 40.8 lb (18.5 kg) |
| Availability | Orders accepted now; ships beginning November 2, 2026 |

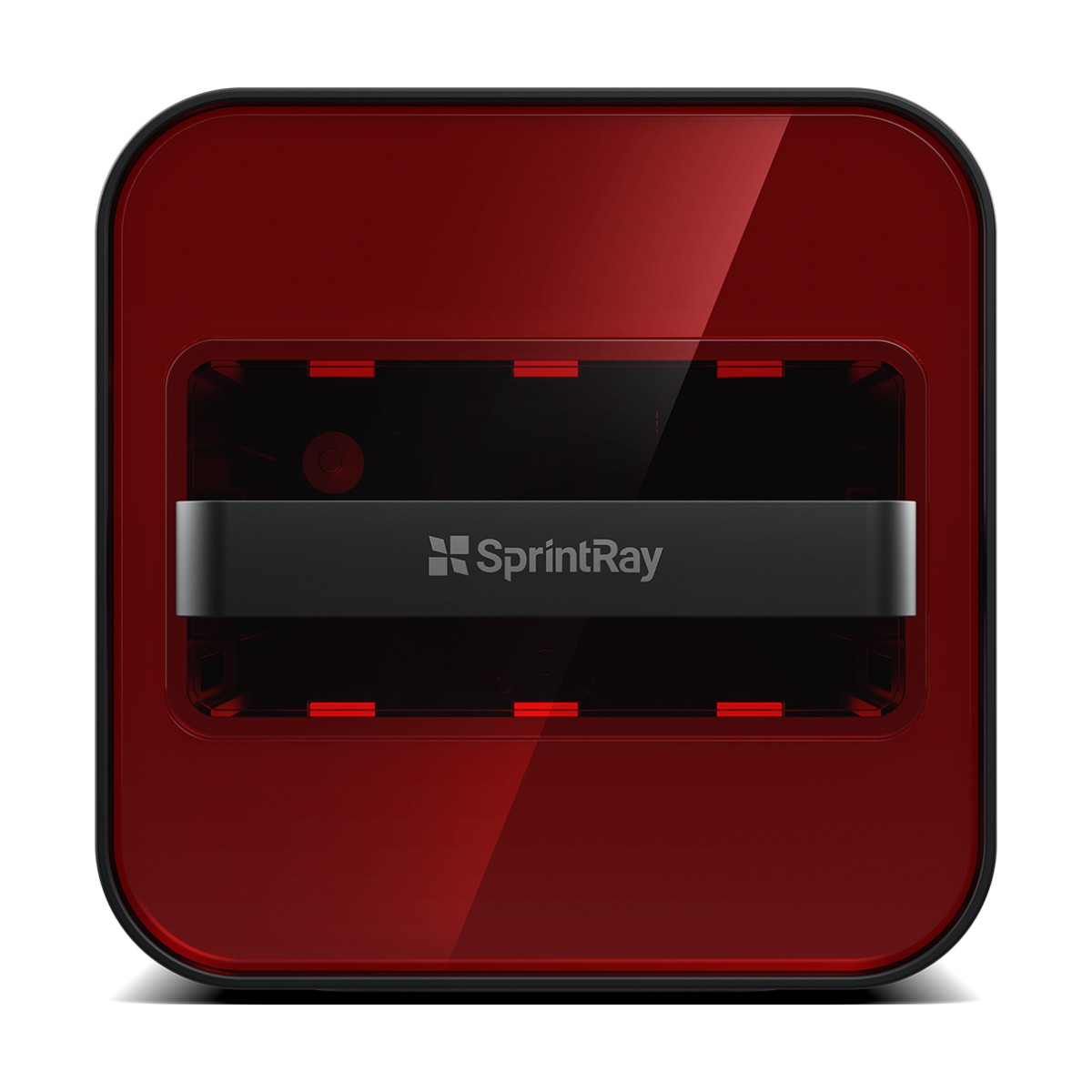

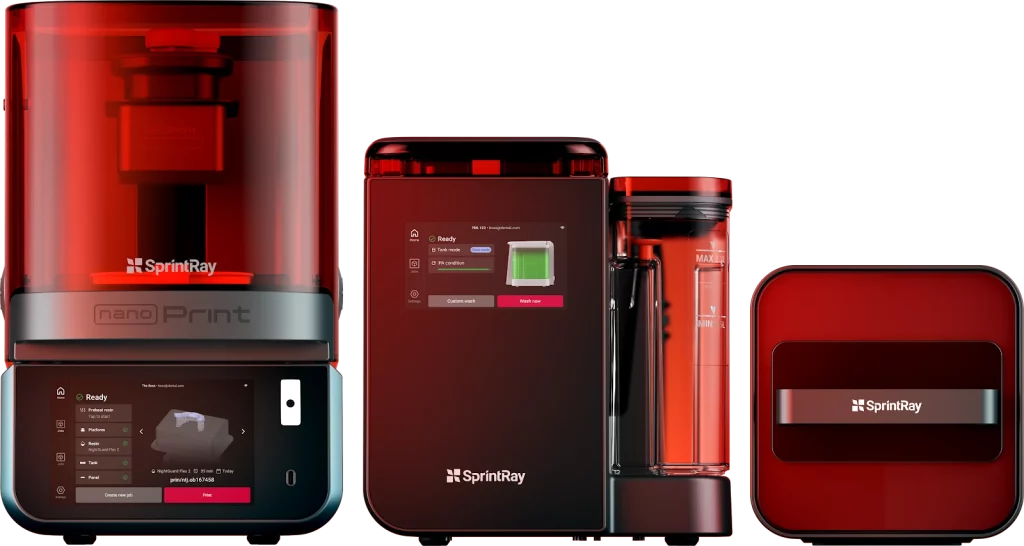

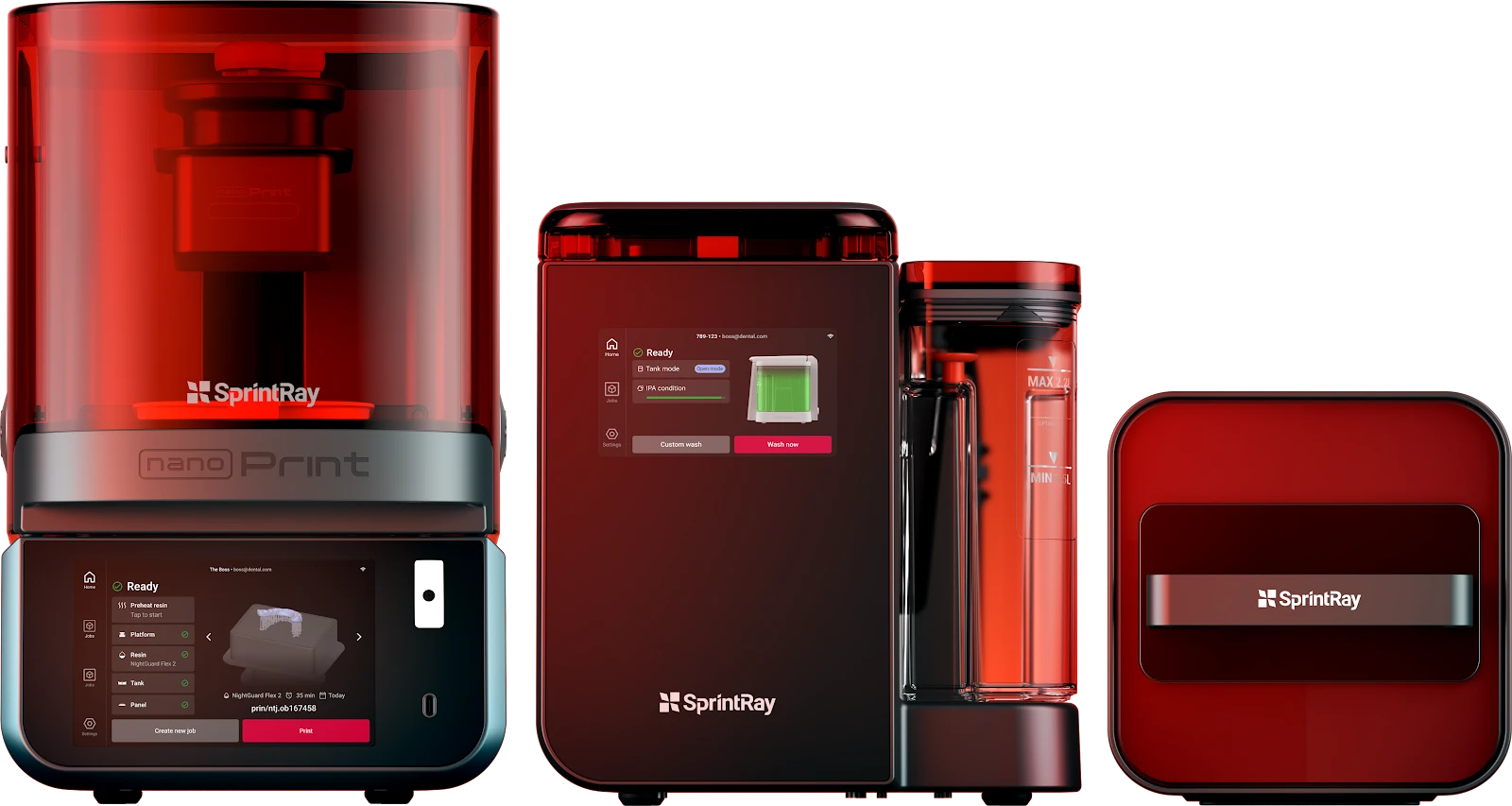

Complete the Nano ecosystem

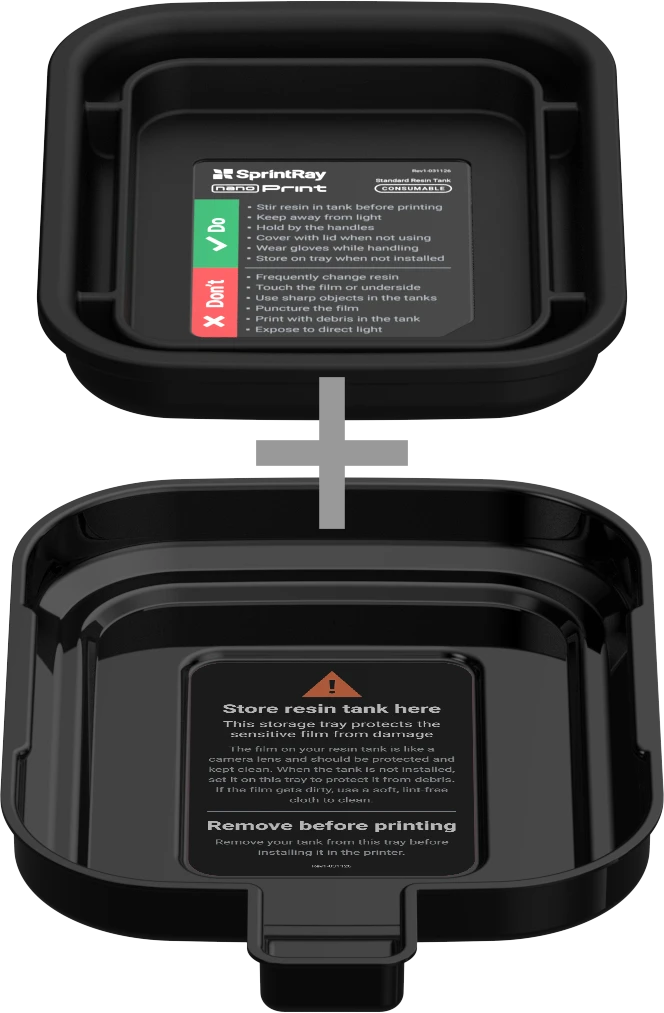

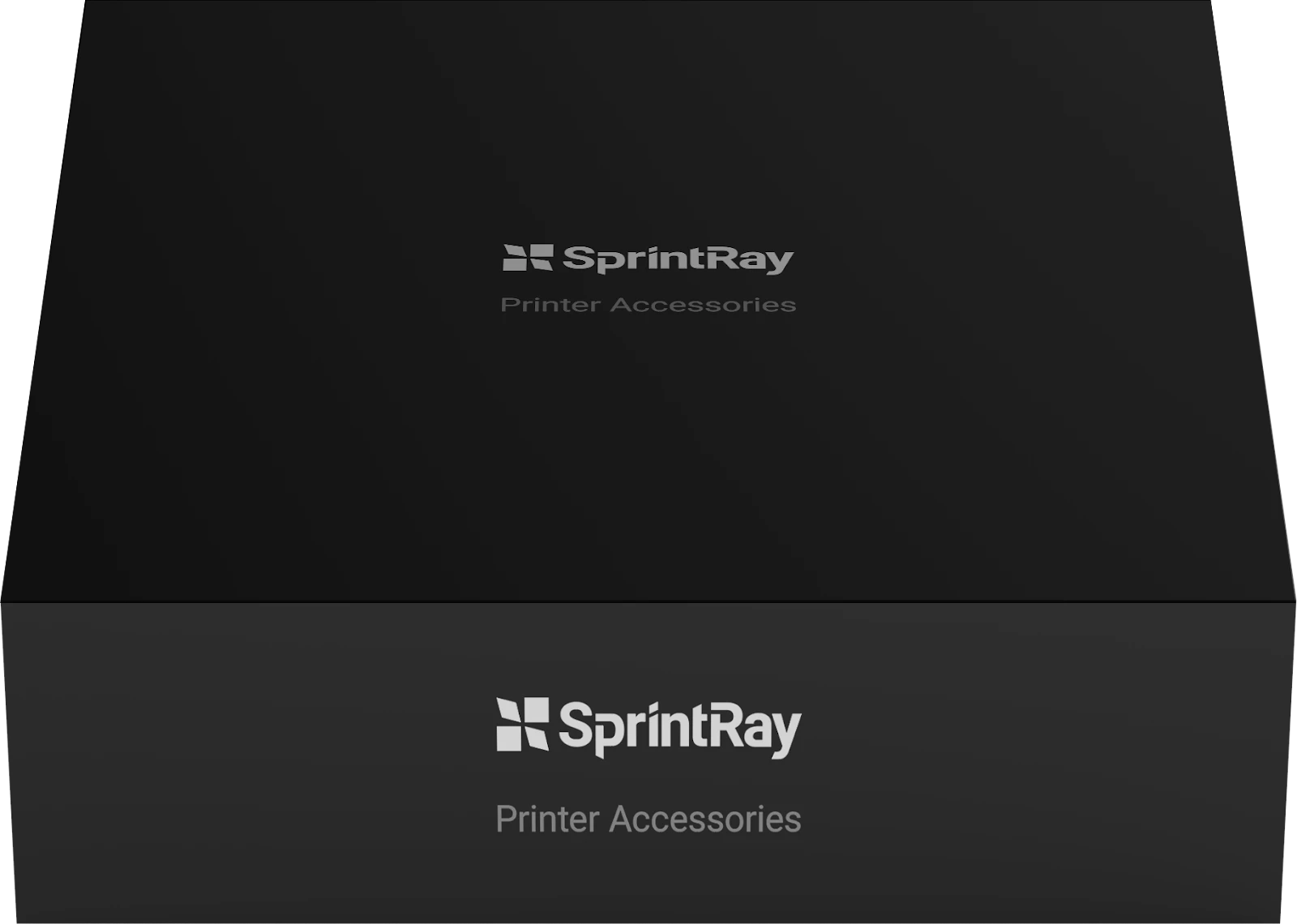

NanoPrint parts & accessories
