Description
SprintRay · post-curing
SprintRay NanoCure
Unlock next-gen printed appliances.
NanoCure post-cures in minutes with dual 365 + 385 nm light and controlled heat — no nitrogen required. It cures Midas restorations and Pro-series prints to full mechanical and aesthetic properties in a unit about half the size of earlier curing units.
Unlock next-gen
Printed appliances

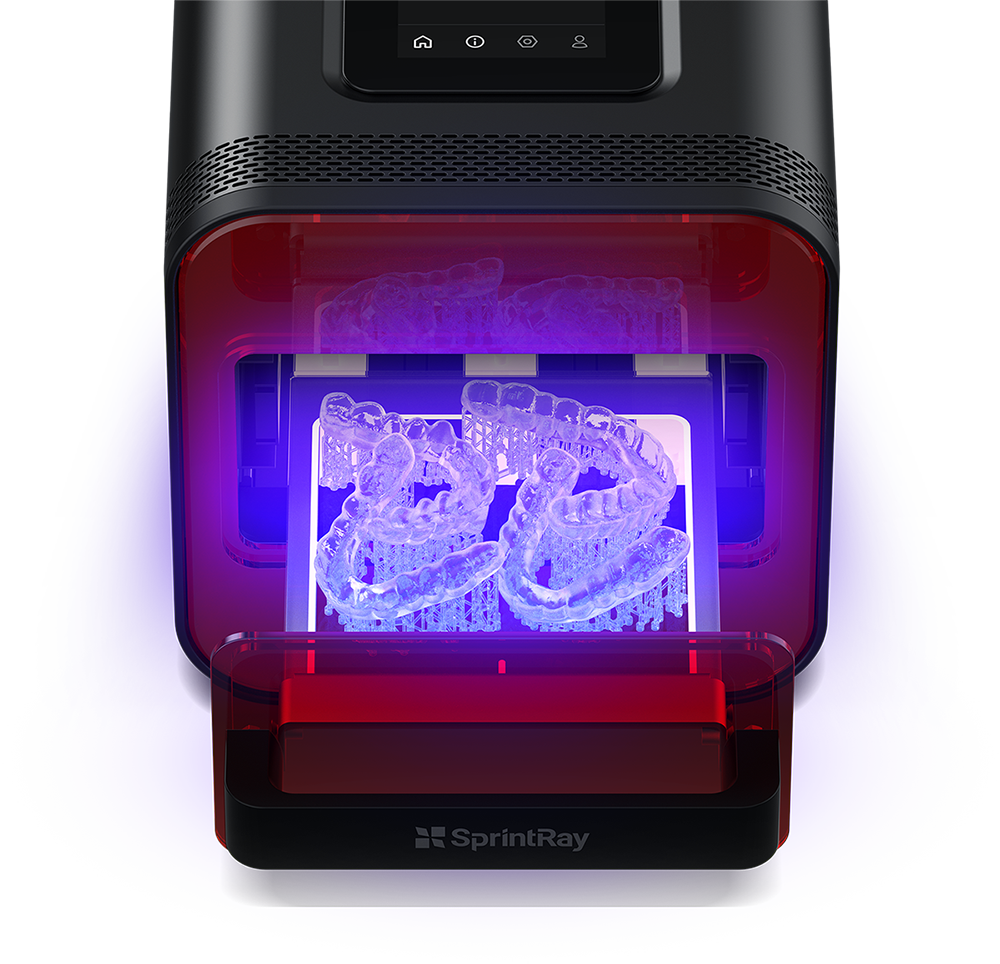

Speed
Cure in minutes.
- Dental models in 2 minutes
- No nitrogen tanks, no long warm-up
Power
Dual-wavelength light and heat.
- 365 + 385 nm LEDs
- 180 W heater, up to 100 °C

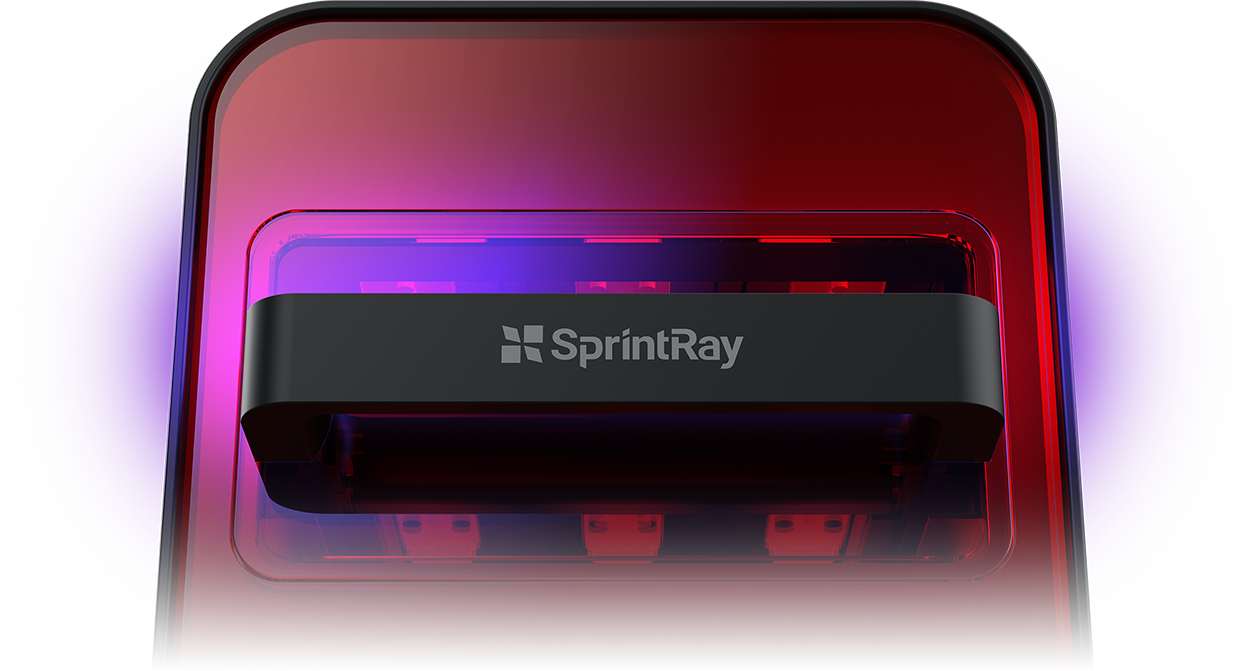

Chemistry
Built for next-gen resins.
- Maximizes mechanical properties
- Unlocks new material chemistry

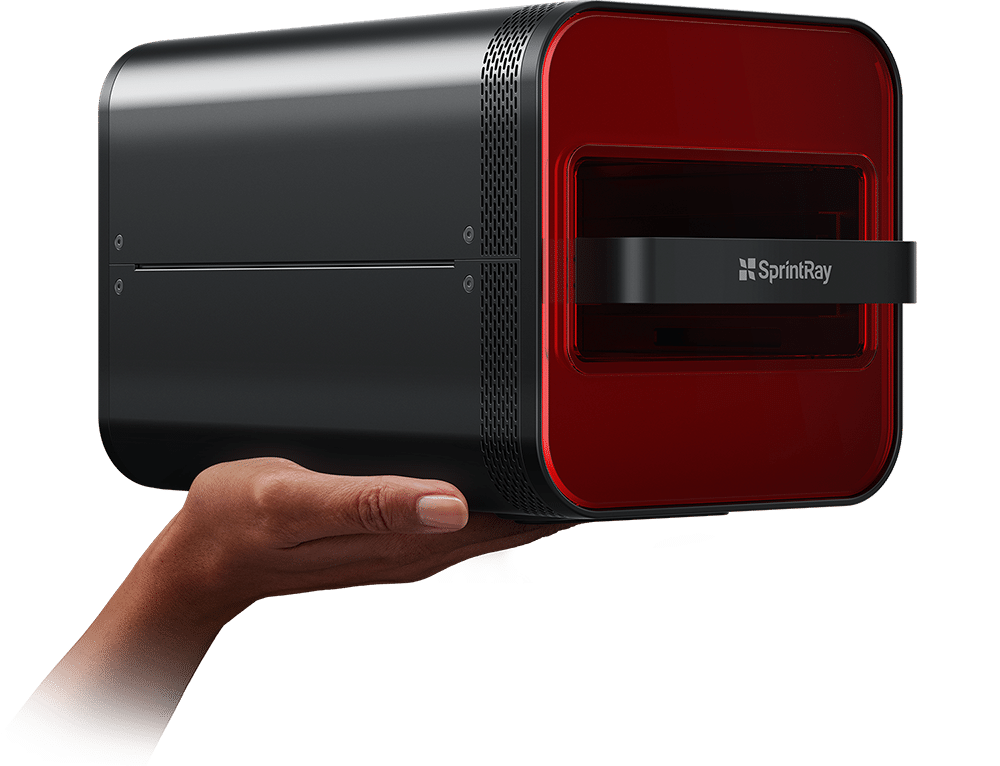

Compact
50% smaller.
- About 8 × 8 × 13.5 in
- Expands capacity without losing counter space
How NanoCure cures

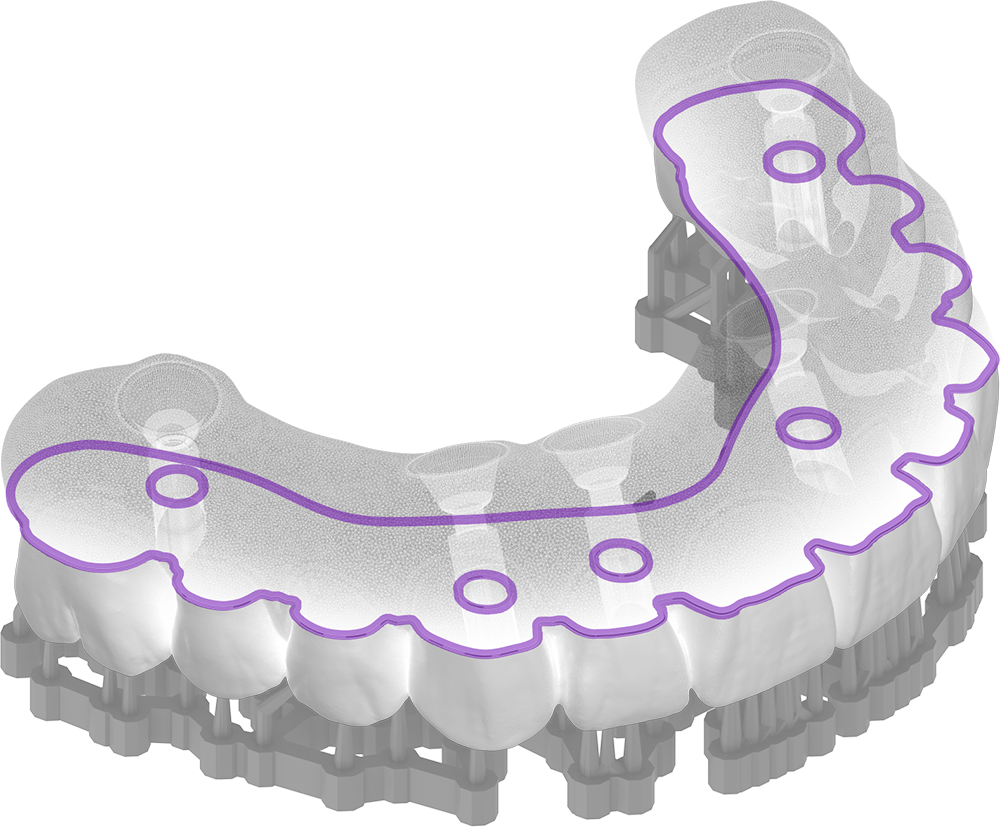

365 nm surface curing
Short-wavelength light cures the surface for a tack-free finish.

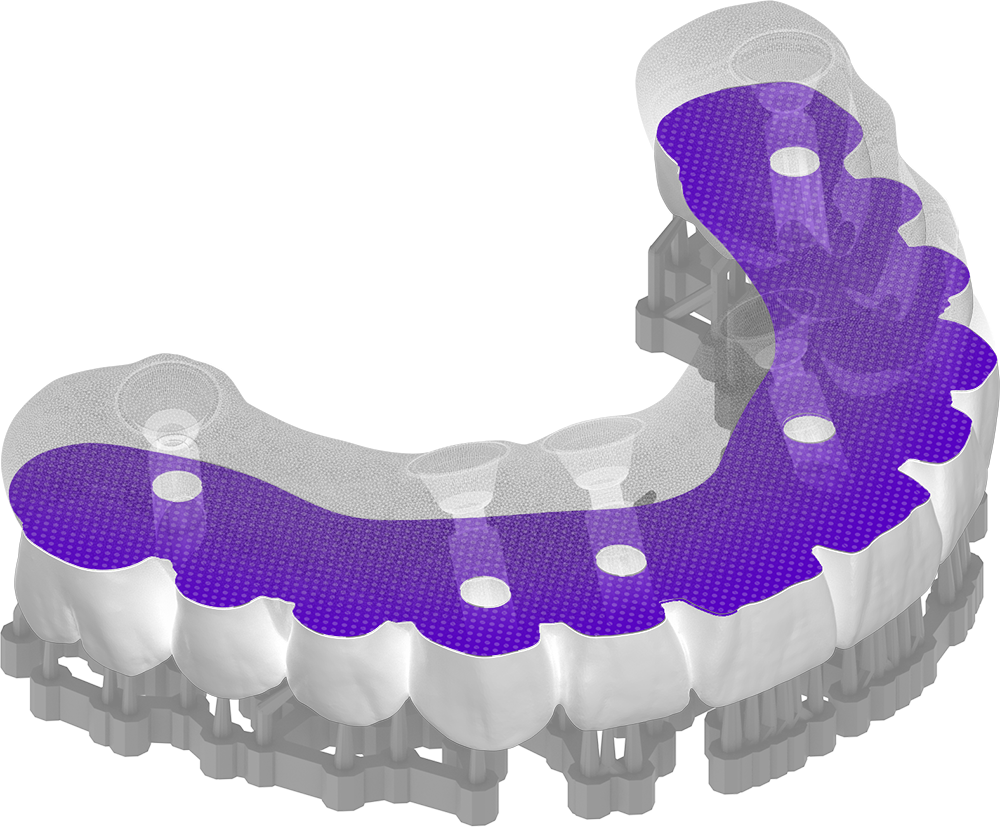

385 nm depth curing
Longer-wavelength light cures through the part for full strength.
95% light uniformity
LED placement tested across 2 million permutations for even curing.
- 34 self-calibrating LEDs

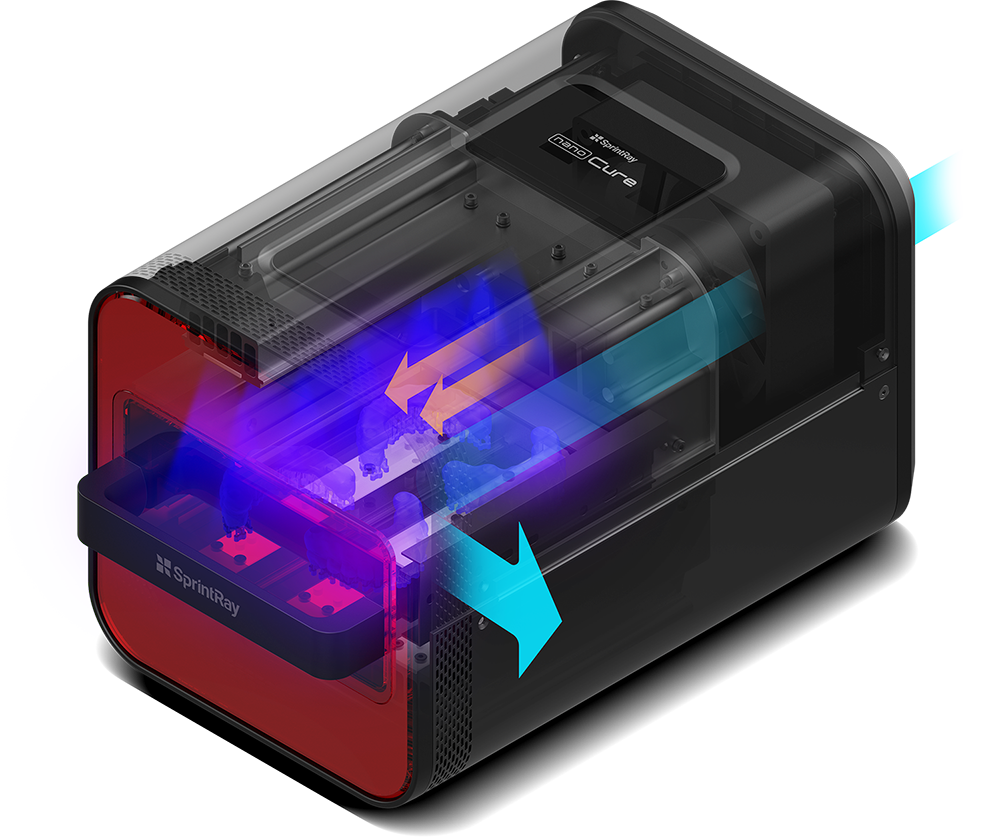

Engineered heat and airflow
Heater and silent cooling regulate the chamber for repeatable results.
- Single extruded aluminum chassis
- Aluminum and glass for easy cleaning
Curing times
At full 4-arch capacity, per SprintRay tech specs.
SprintRay NanoCure Specifications
| Category | SprintRay NanoCure |
|---|---|
| Curing technology | 34 self-calibrating LEDs, dual 365 + 385 nm |
| Light uniformity | 95% |
| Heater | 180 W, up to 100 °C |
| Curing envelope | 11.4 × 11.4 × 3.8 cm (4.5 × 4.5 × 1.5 in) — up to 4 full-arch models |
| Nitrogen | Not required |

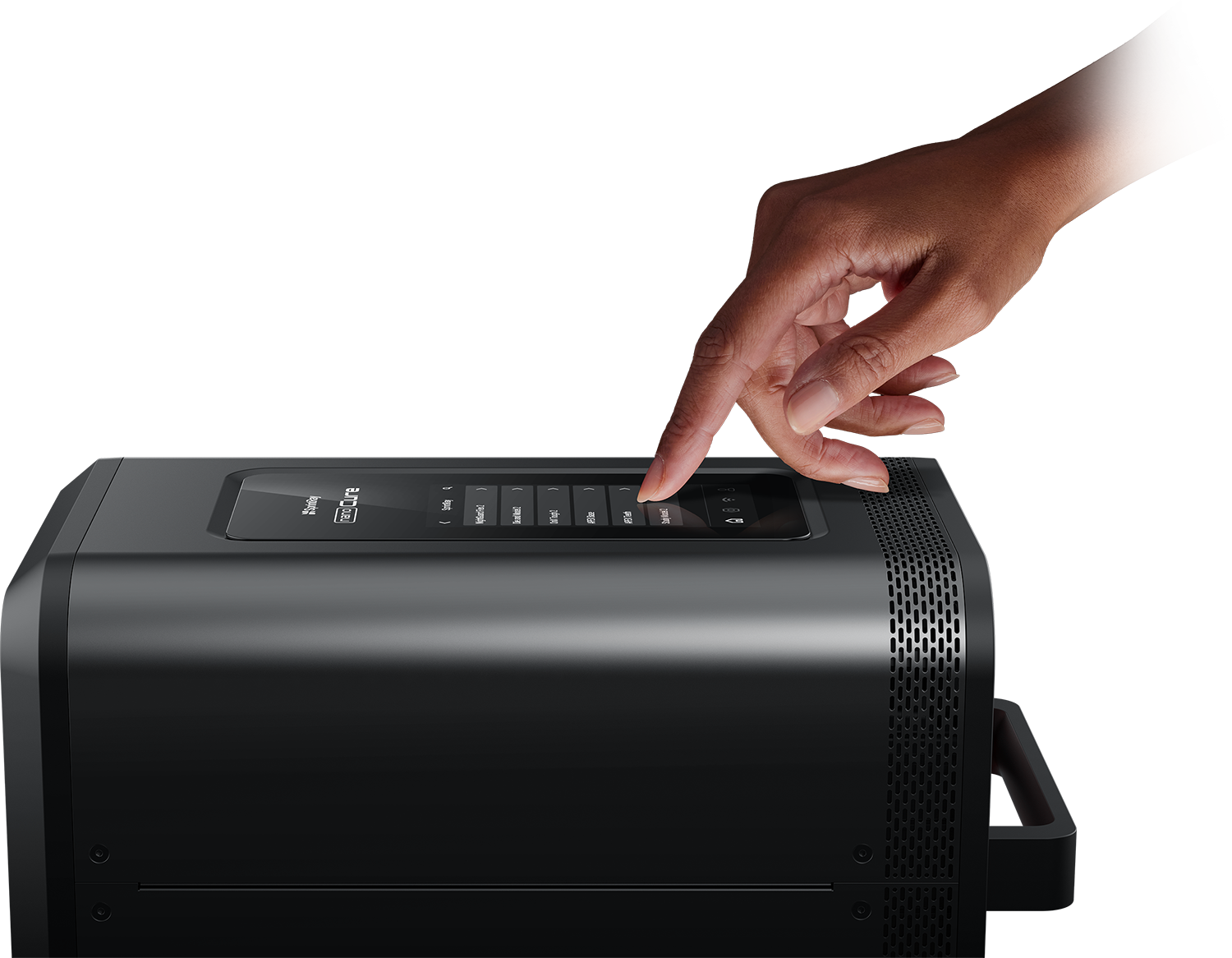

| Controls | 5.5″ color touchscreen, Android-based software |
| Dimensions | 20 × 20.5 × 34.5 cm (7.9 × 8 × 13.5 in) |
| Shipping | 33 × 47 × 35.5 cm · 10 kg (22 lb) |
| Power | 100–240 V, 50/60 Hz |
Specifications from SprintRay.
What’s included from CAD-Ray
- ✓SprintRay NanoCure
NanoCure comes included in our Pro 2 Ecosystem and Midas + NanoCure bundles — see SprintRay Promo Bundles.
The SprintRay ecosystem
Print, wash and cure — connected through SprintRay Cloud.
- Smart Job Handoff passes each job from printer to ProWash S to NanoCure
- Resin profiles and software update automatically
- Validated workflows across 15+ indications
- One dealer — CAD-Ray — for install, training and support
Why buy your NanoCure from CAD-Ray?
- Professional installation and training by CAD-Ray technicians available — ask your rep or add it where offered below.
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Authorized SprintRay dealer — we install, train and support the whole SprintRay ecosystem.
NanoCure FAQ
Does NanoCure need nitrogen?
No — it cures with dual-wavelength light and heat, no nitrogen tanks required.
Does it work with Midas?
Yes. NanoCure is the post-cure unit for Midas restorations and is included in the Midas + NanoCure bundles.
How many parts fit?
Up to 4 full-arch models in an 11.4 × 11.4 × 3.8 cm envelope.
