SprintRay · production 3D printer

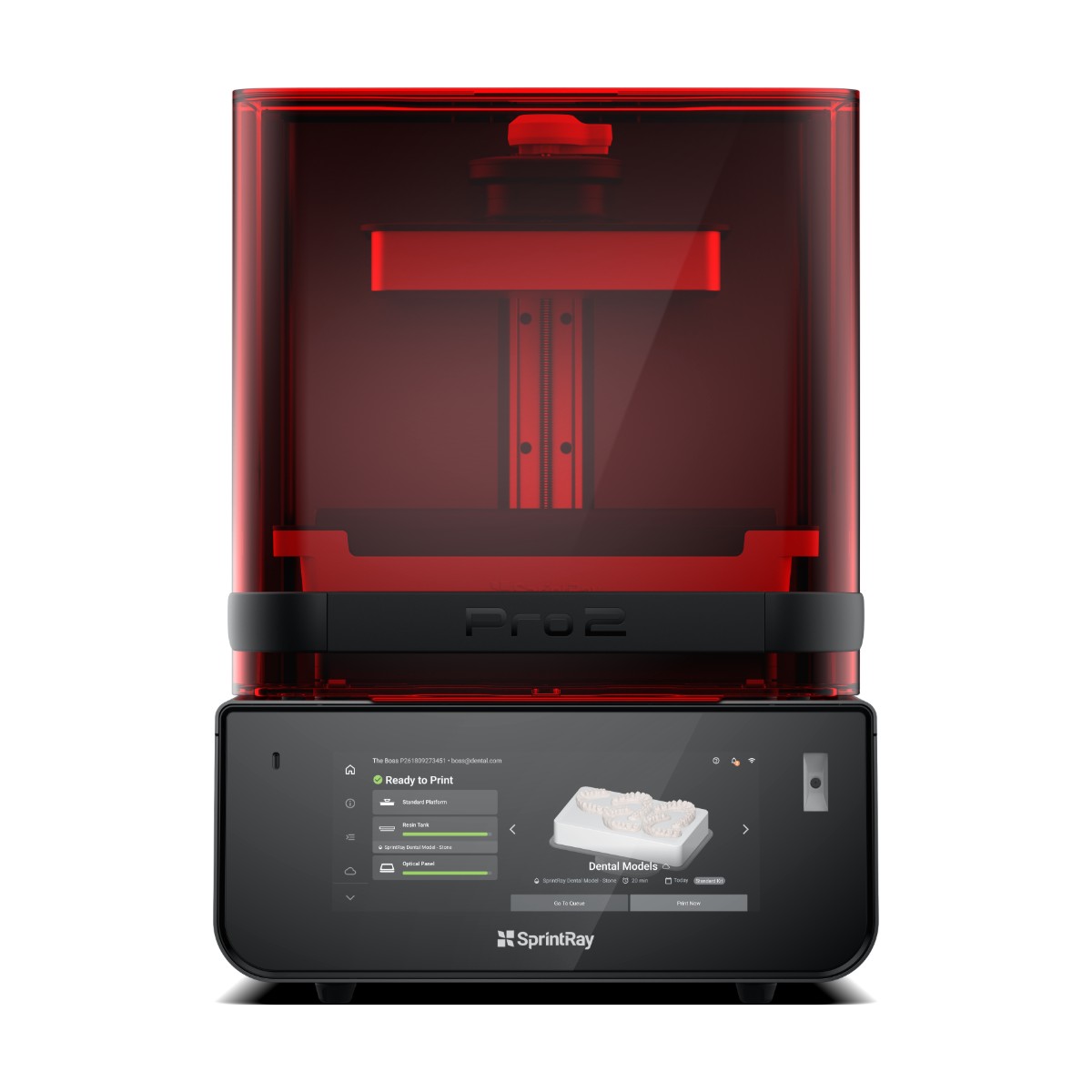

SprintRay Pro 2
Throughput meets precision.
Pro 2 is SprintRay’s most accurate printer: a patent-pending 35 µm Optical Panel and 385 nm water-cooled light engine, 6+ full-arch models per job and 15+ validated workflows — from night guards and dentures to crowns and clear retainers.
Throughput meets
Precision
3x Precision
The most accurate SprintRay printer of all time.
- 35 µm patent-pending Optical Panel
- 385 nm UV-A light engine
4x Throughput
Print more in every job.
- 6+ flat full-arch models per job
- Up to 4 in/hr with the Arch kit
15+ Workflows
Validated, ready-to-run indications.
- Night guards, dentures, guides, models
- Crowns, retainers, aligners and more
Easiest SprintRay yet
Error-proofed and cloud-connected.
- 12″ Gorilla Glass touchscreen
- Automatic tank and platform detection
Inside Pro 2

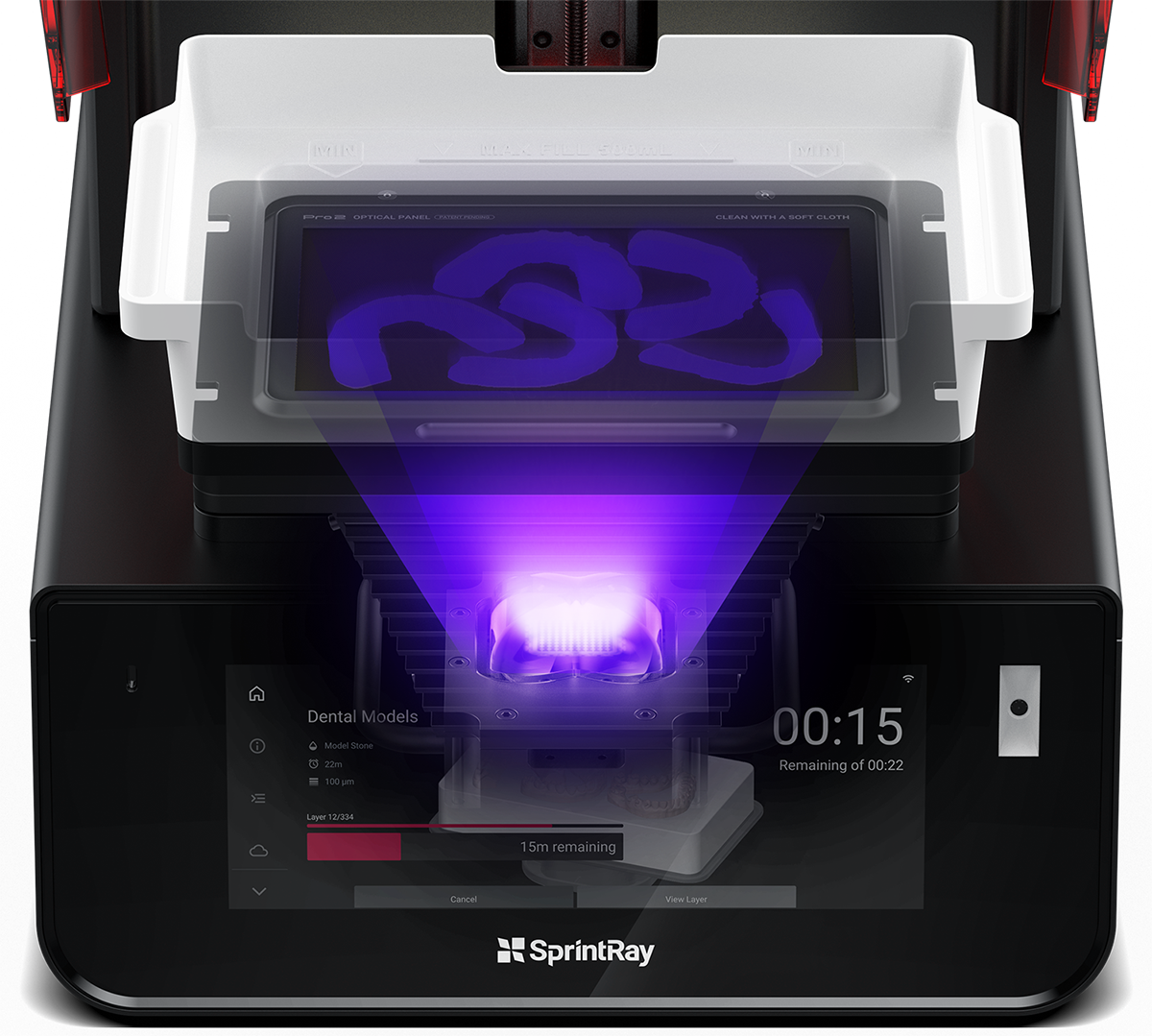

Optical Panel technology
Patent-pending, user-replaceable Optical Panel delivers 35 µm XY resolution edge to edge.
- Even light across the whole platform
- 385 nm for accuracy and better mechanical properties

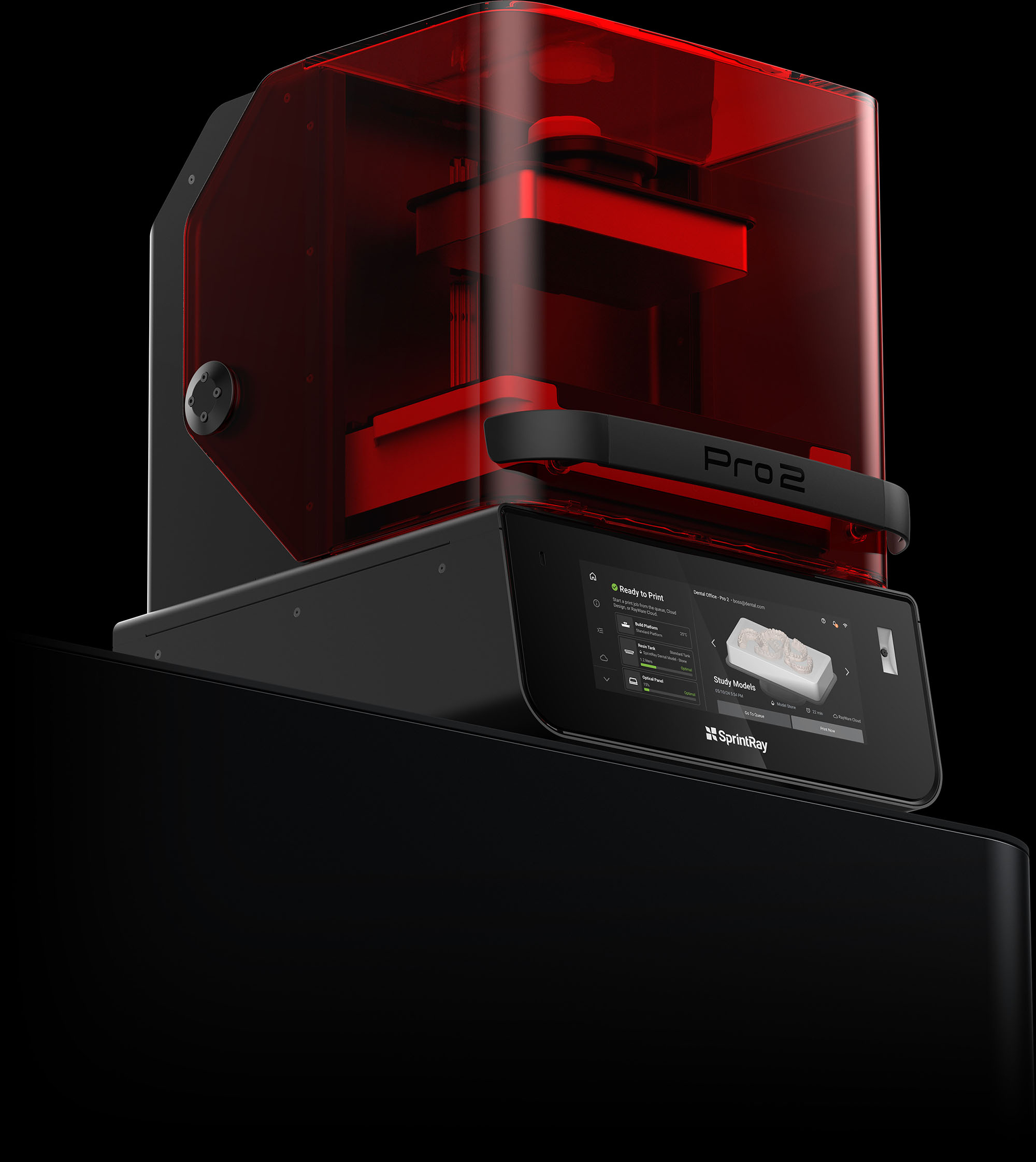

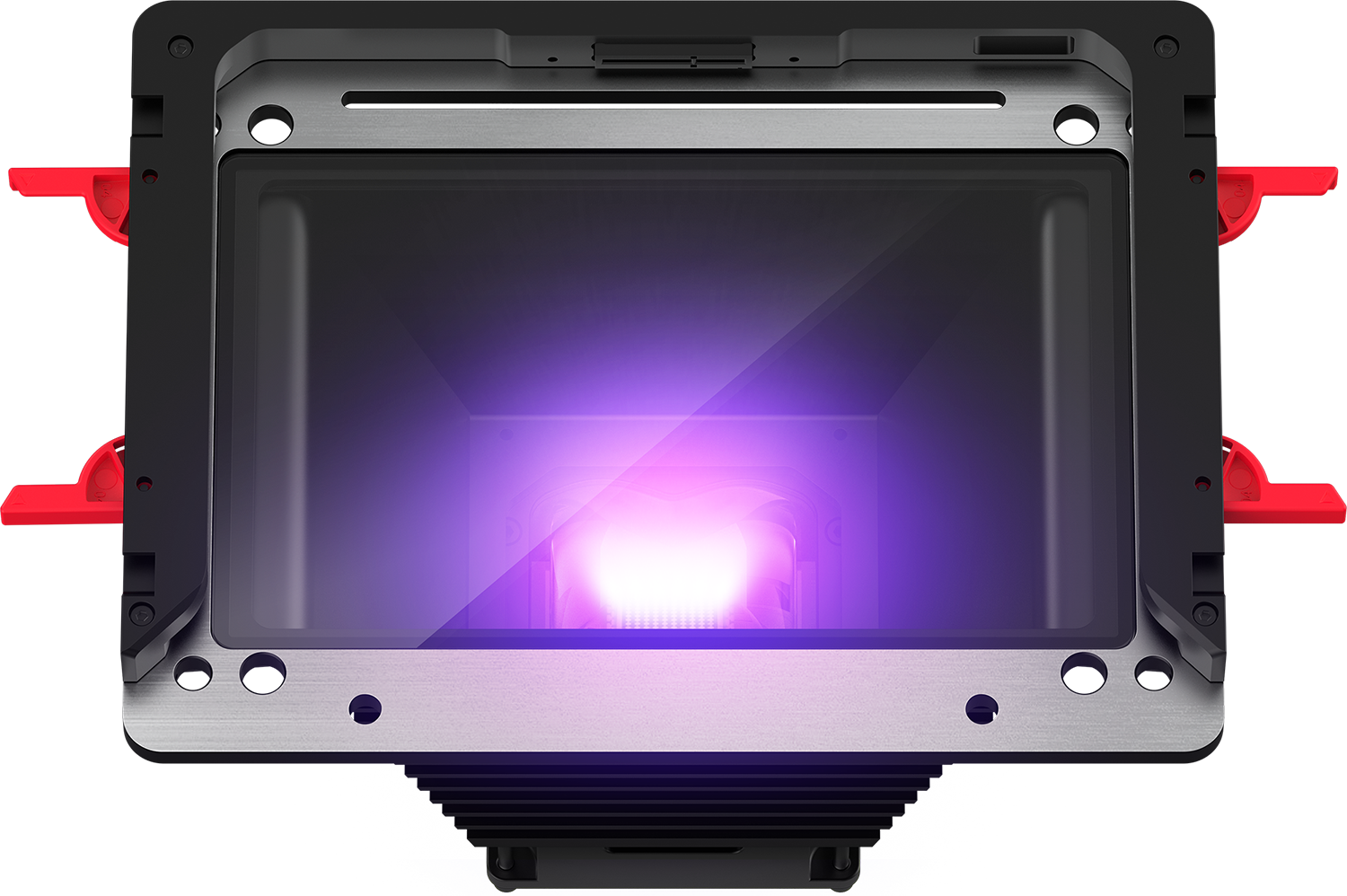

Water-cooled 385 nm light engine
Stable, cool light output job after job.
- Water-cooled LED system
- Heated build platform with improved control electronics

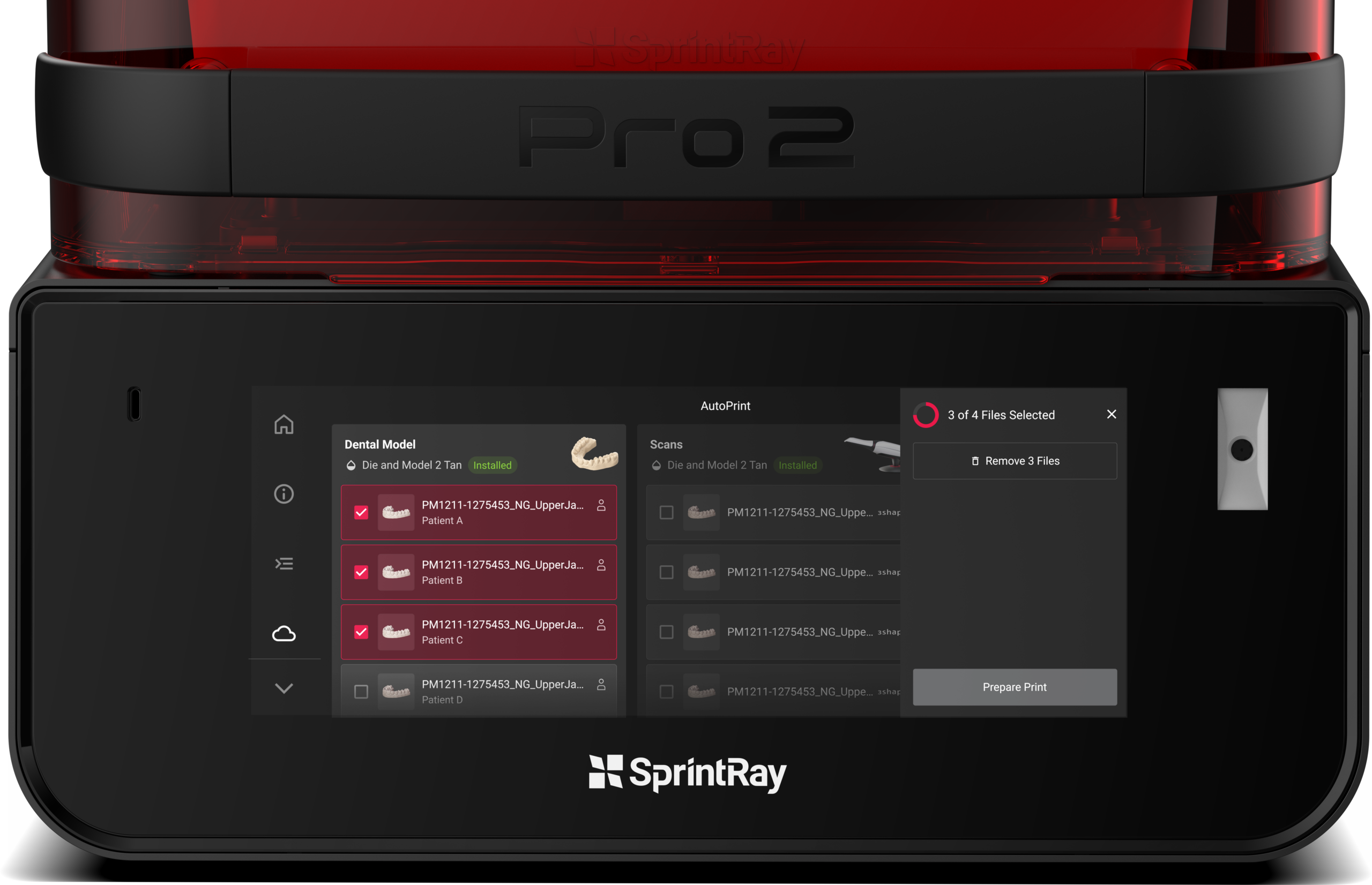

PrintOS on a 12-inch touchscreen
Android-based PrintOS puts every job and setting at your fingertips.
- Daily resin-profile updates from SprintRay Cloud
- Send jobs from Cloud Drive

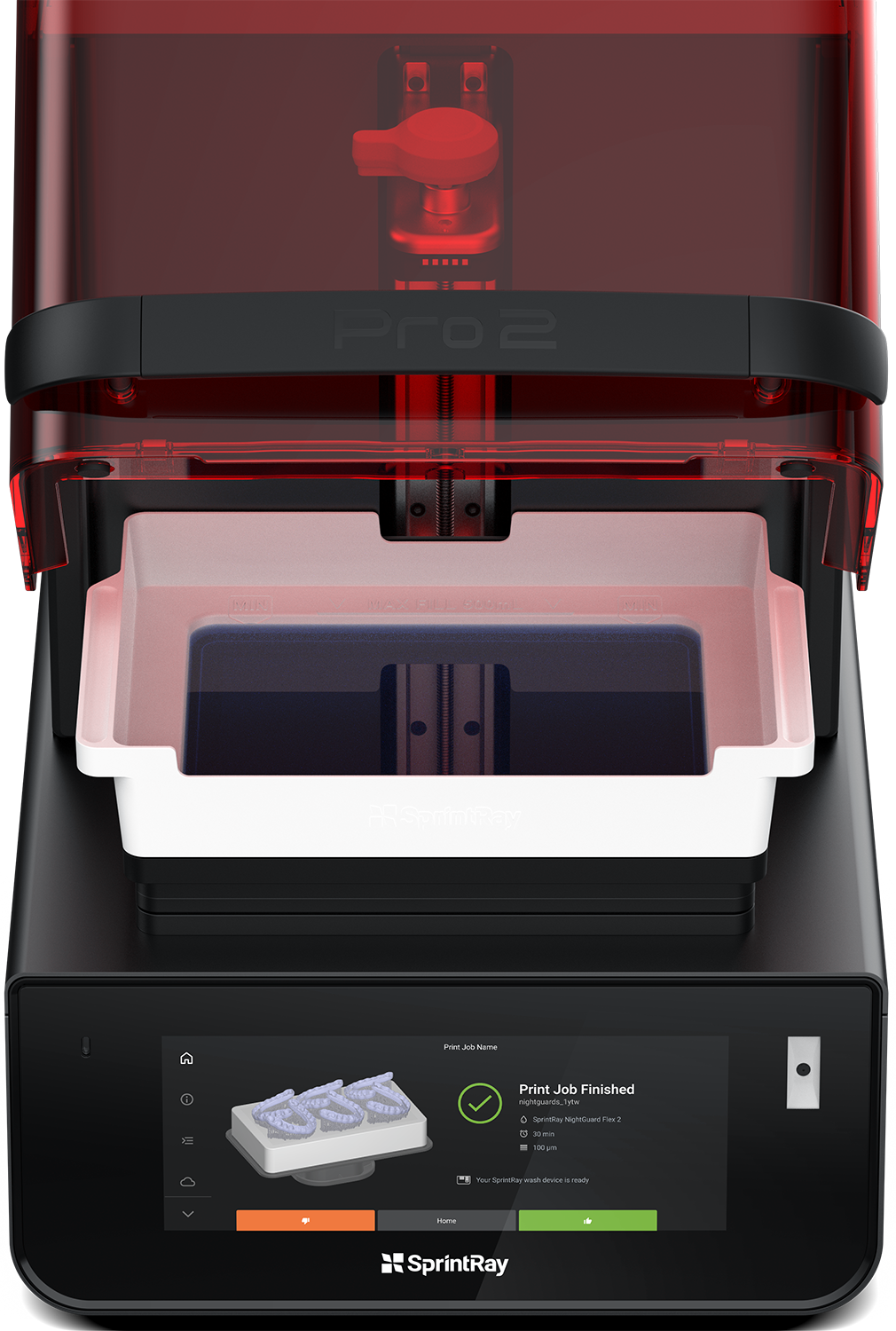

Standard, Arch and Duo Kits
Swap kits to match the job.
- Standard kit: 188 × 105 mm platform, 500 mL tank
- Arch kit: faster single-arch printing, 150 mL tank

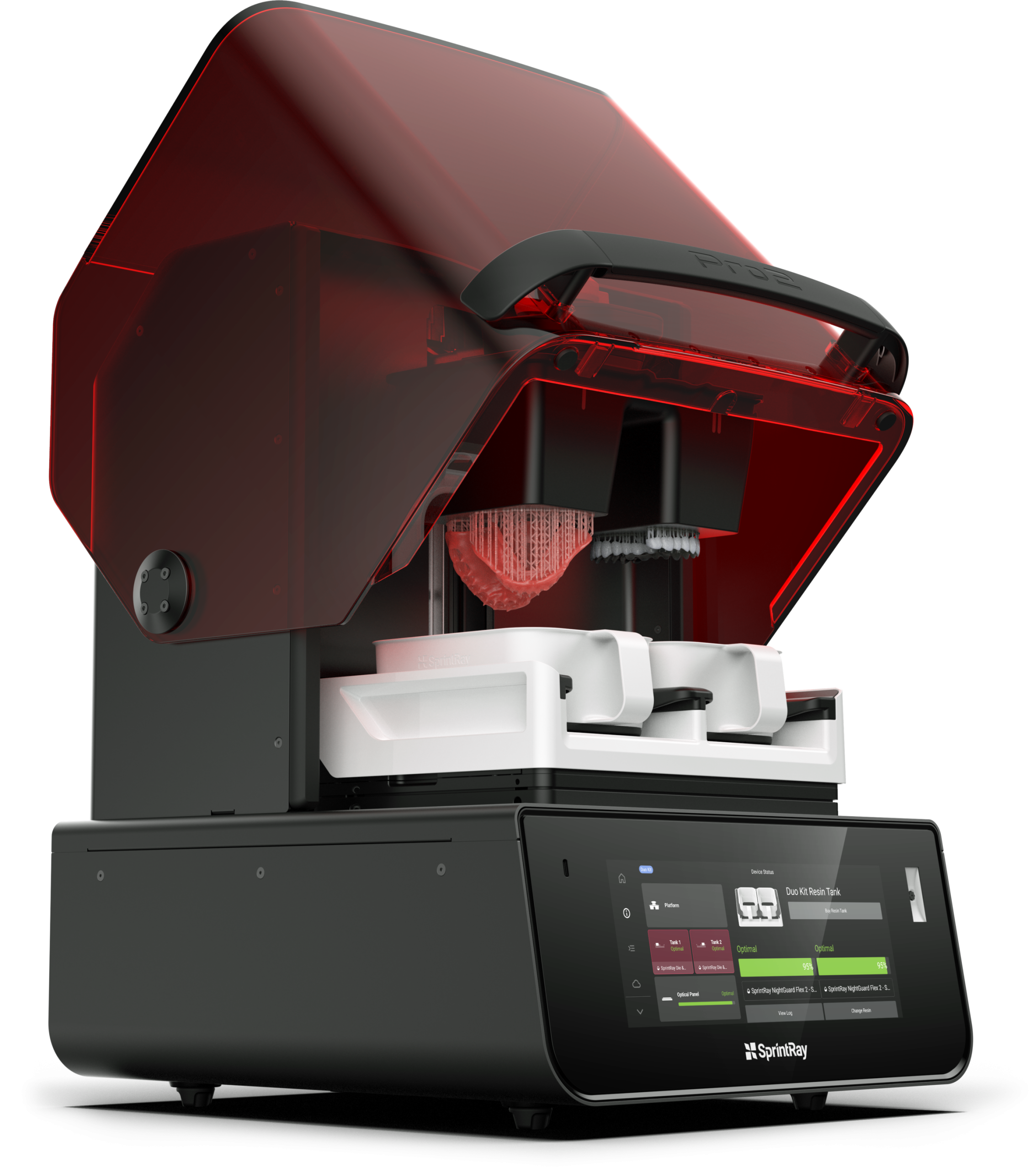

- Duo Kit for two-material printing like denture base + teeth
Validated workflows
- Night guards
- Removable and digital dentures
- Surgical guides
- Hybrid dentures
- Dental and aligner models
- Clear retainers (direct print)
- Crowns, bridges and veneers
- Clear aligners
- Indirect bonding trays
- Wax-ups and provisionals
- Sports guards
- Flexible partial dentures
Built for production

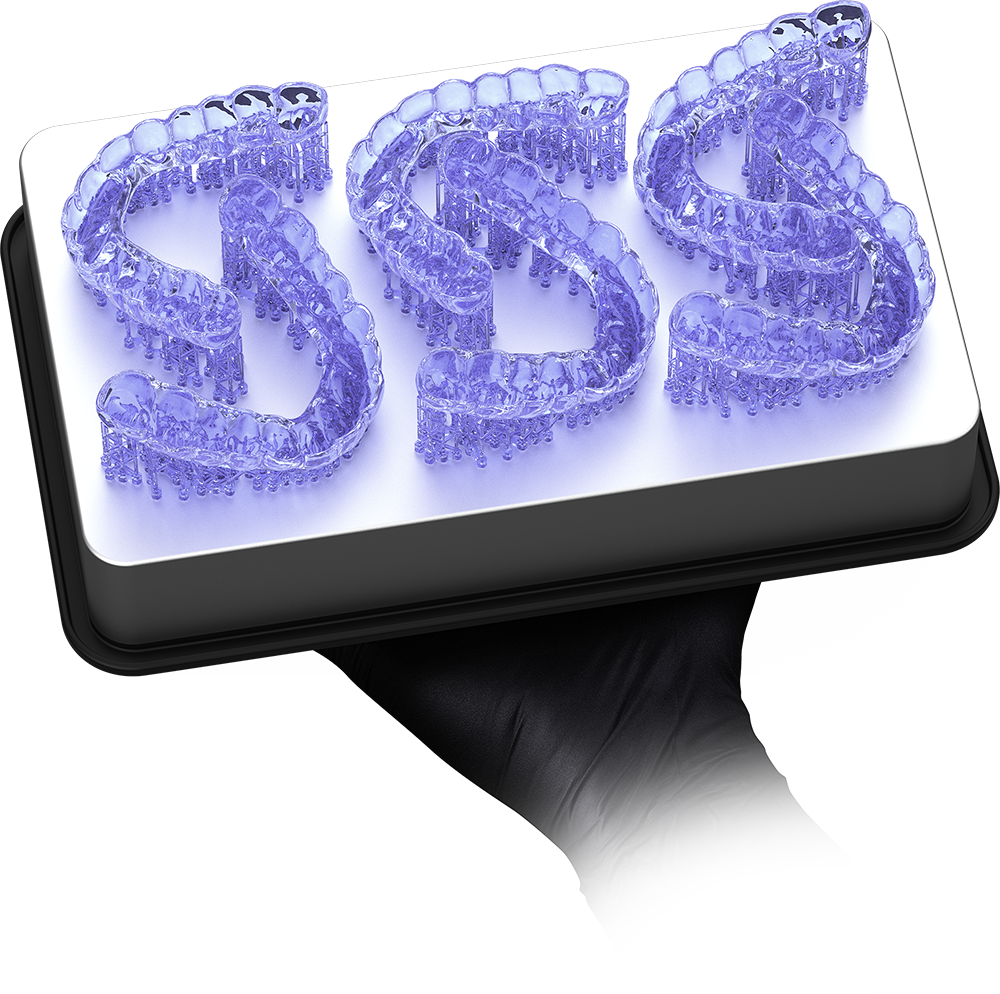

A full Standard platform of night guards.
SprintRay Pro 2 Specifications
| Category | SprintRay Pro 2 |
|---|---|
| Min. feature size | 35 µm XY |
| Light source | 385 nm UV-A LED, water-cooled |
| Technology | Patent-pending Optical Panel (user-replaceable) |
| Layer thickness | 50, 100, 170 µm |
| Print speed | Up to 2 in/hr (Standard kit) · up to 4 in/hr (Arch kit) |
| Build platform | Standard 188 × 105 mm · Arch 105 × 75 mm |
| Resin tank | Standard 500 mL · Arch 150 mL |
| Display / computer | 12″ ultrawide Gorilla Glass touchscreen · 8-core onboard computer |
| Connectivity | Wi-Fi 2.4 / 5 GHz, SprintRay Cloud |
| Power | 100–240 V, 50–60 Hz, 400 W |
| Operating range | 21–29 °C (70–85 °F) |
| Dimensions | 15 × 18 × 21 in closed · 15 × 23 × 27 in open |
| Shipping | 22 × 22 × 25 in · 65 lb (30 kg) |
Specifications from SprintRay.
What’s included from CAD-Ray
- ✓SprintRay Pro 2 3D printer
Tick any of these below before adding to cart.
- +1-year SprintRay ProTection Plan (printer)
Add ProWash S, NanoCure and a free Duo Kit with a Pro 2 Ecosystem bundle — see SprintRay Promo Bundles. Existing owners: Pro 2 Loyalty Upgrade.

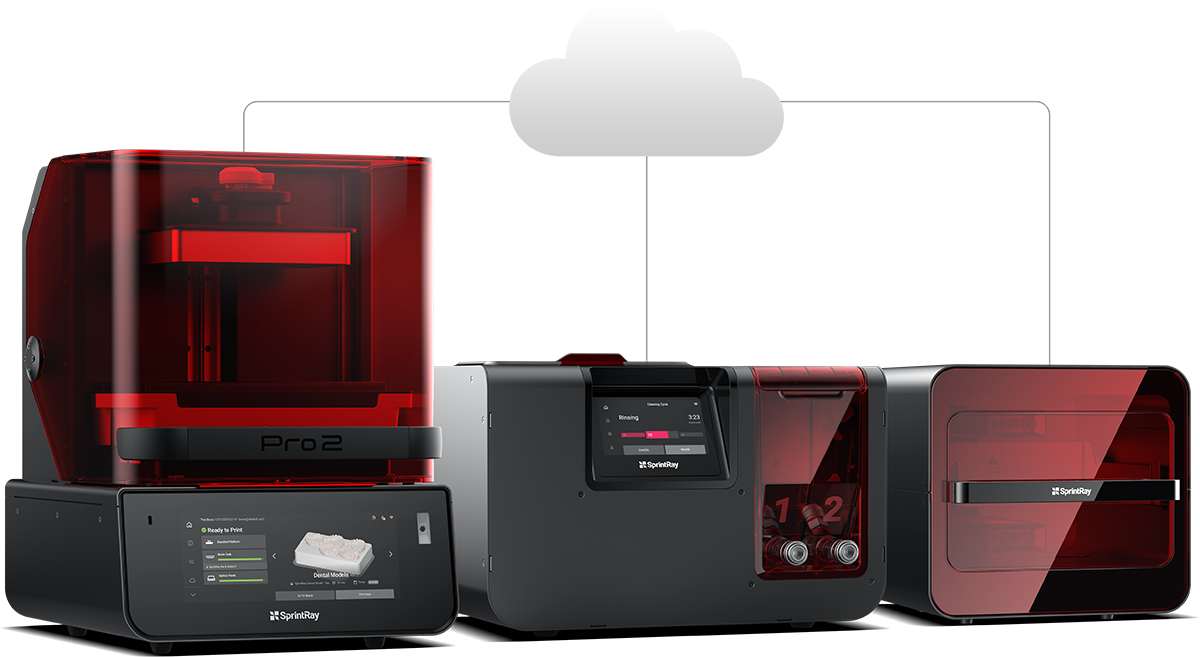

The SprintRay ecosystem
Print, wash and cure — connected through SprintRay Cloud.
- Smart Job Handoff passes each job from printer to ProWash S to NanoCure
- Resin profiles and software update automatically
- Validated workflows across 15+ indications
- One dealer — CAD-Ray — for install, training and support
Why buy your Pro 2 from CAD-Ray?
- Professional installation and training by CAD-Ray technicians available — ask your rep or add it where offered below.
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Authorized SprintRay dealer — we install, train and support the whole SprintRay ecosystem.
- Resins, tanks and platforms on our SprintRay Resins, Tanks and Accessories page.
SprintRay Pro 2 FAQ
How accurate is Pro 2?
35 µm XY resolution with the Optical Panel and 385 nm light engine — SprintRay’s most accurate printer.
How much can it print at once?
6+ flat full-arch models per job on the Standard platform.
What do I need to finish parts?
ProWash S for washing and NanoCure for post-curing — both included in the Pro 2 Ecosystem bundles.
What’s the Duo Kit?
A platform and tank kit for two-material jobs such as denture base and teeth.
