Description
SprintRay · Digital Press Stereolithography

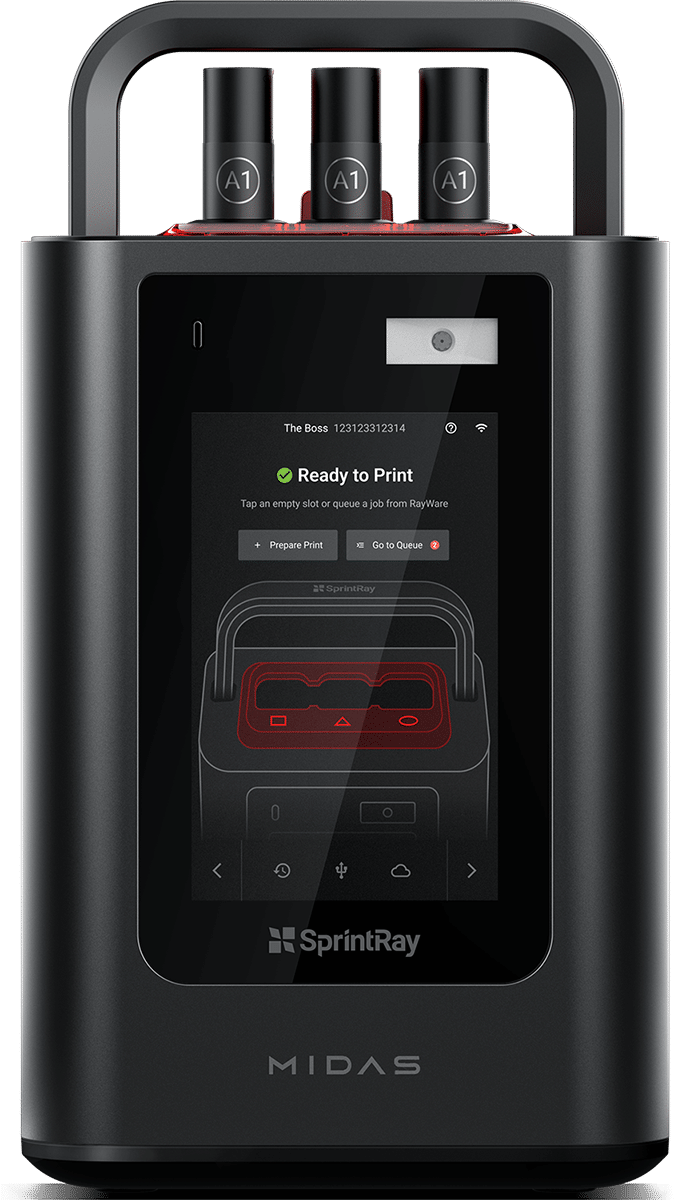

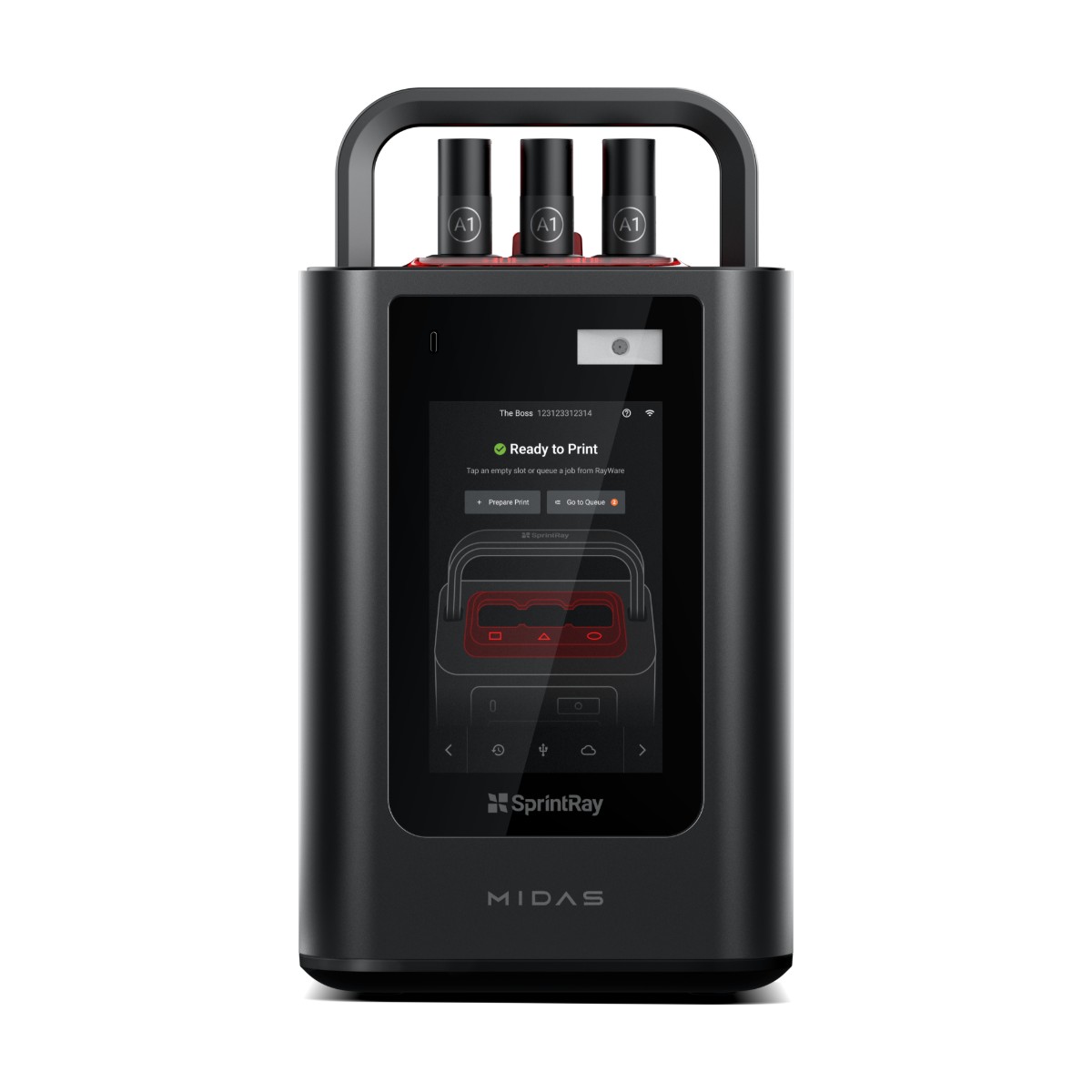

SprintRay Midas
The most revolutionary 3D printing tech ever to reach dentistry.
Midas uses patented Digital Press Stereolithography (DPS™) and single-use capsules to print highly filled ceramic restorations — up to 3 definitive crowns in about 10 minutes. No resin tank, no build platform, no bottles, and practically no maintenance.
Chairside crowns,
Reimagined
Fast
First-ever digital press.
- Up to 3 definitive crowns in about 10 minutes
- Design, print and post-cure a crown in under 30 minutes
Easy
AI design, capsule printing.
- SprintRay AI Studio designs the crown for you
- Scan the capsule, place it, press print
Revolutionary
Viscosity agnostic.
- Prints highly filled ceramic composites
- Pressurized DPS™ instead of a resin vat
Zero maintenance
Wipe the print glass. That’s it.
- No tank, build platform or resin bottle
- Sealed single-use capsules

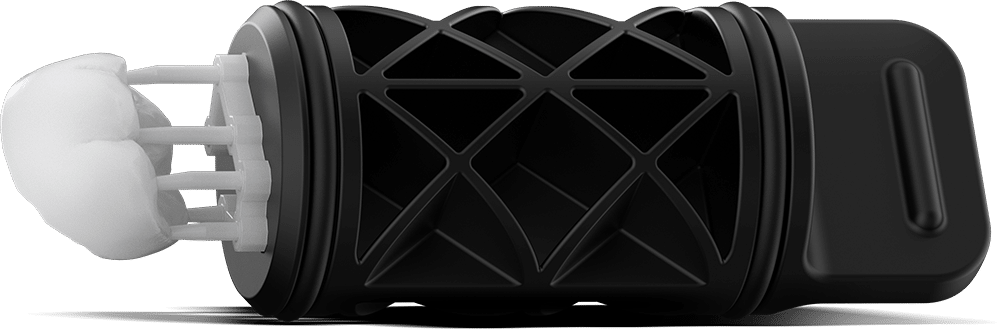

How Midas works
Digital Press Stereolithography
A patented, pressurized capsule system prints materials too viscous for conventional printers.

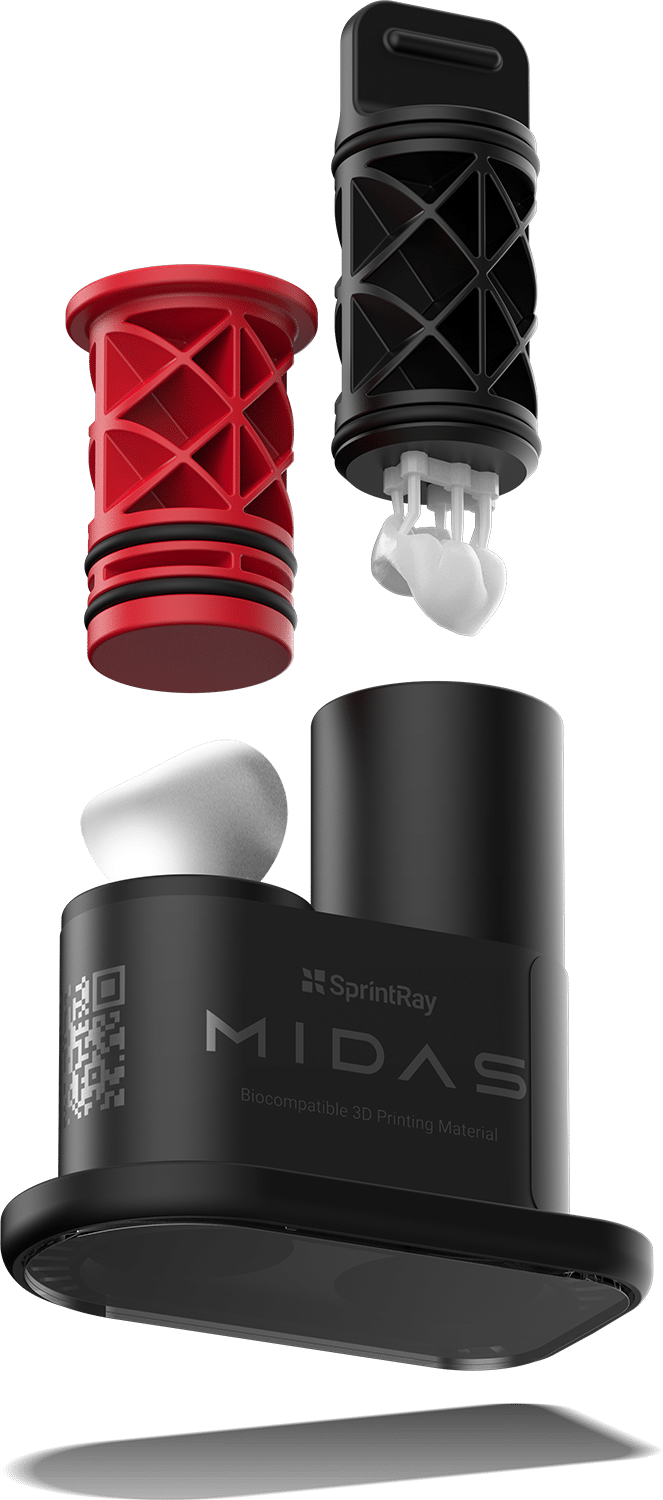

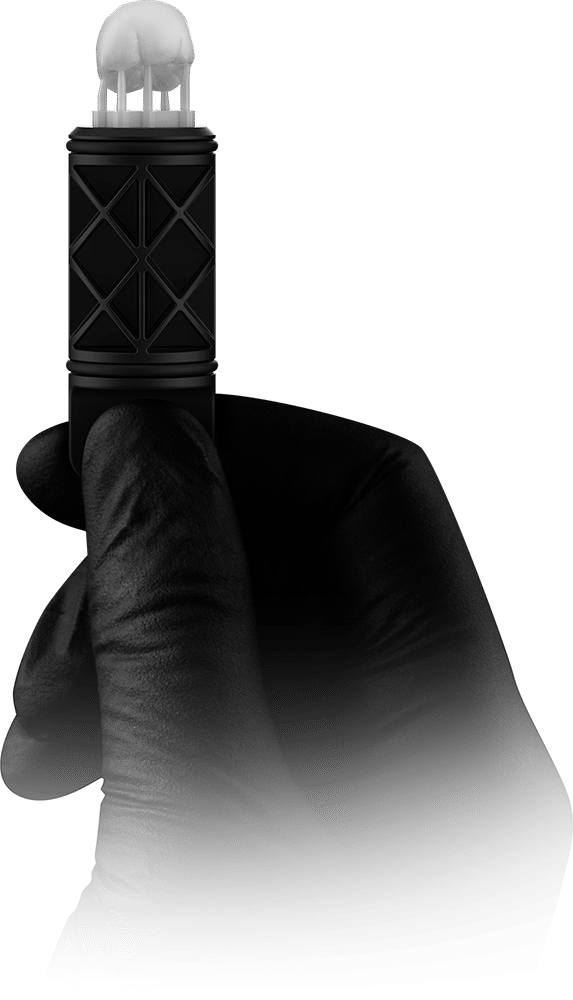

- Capsule holds resin and build surface in one
- Barcode-verified for material, shade and expiration

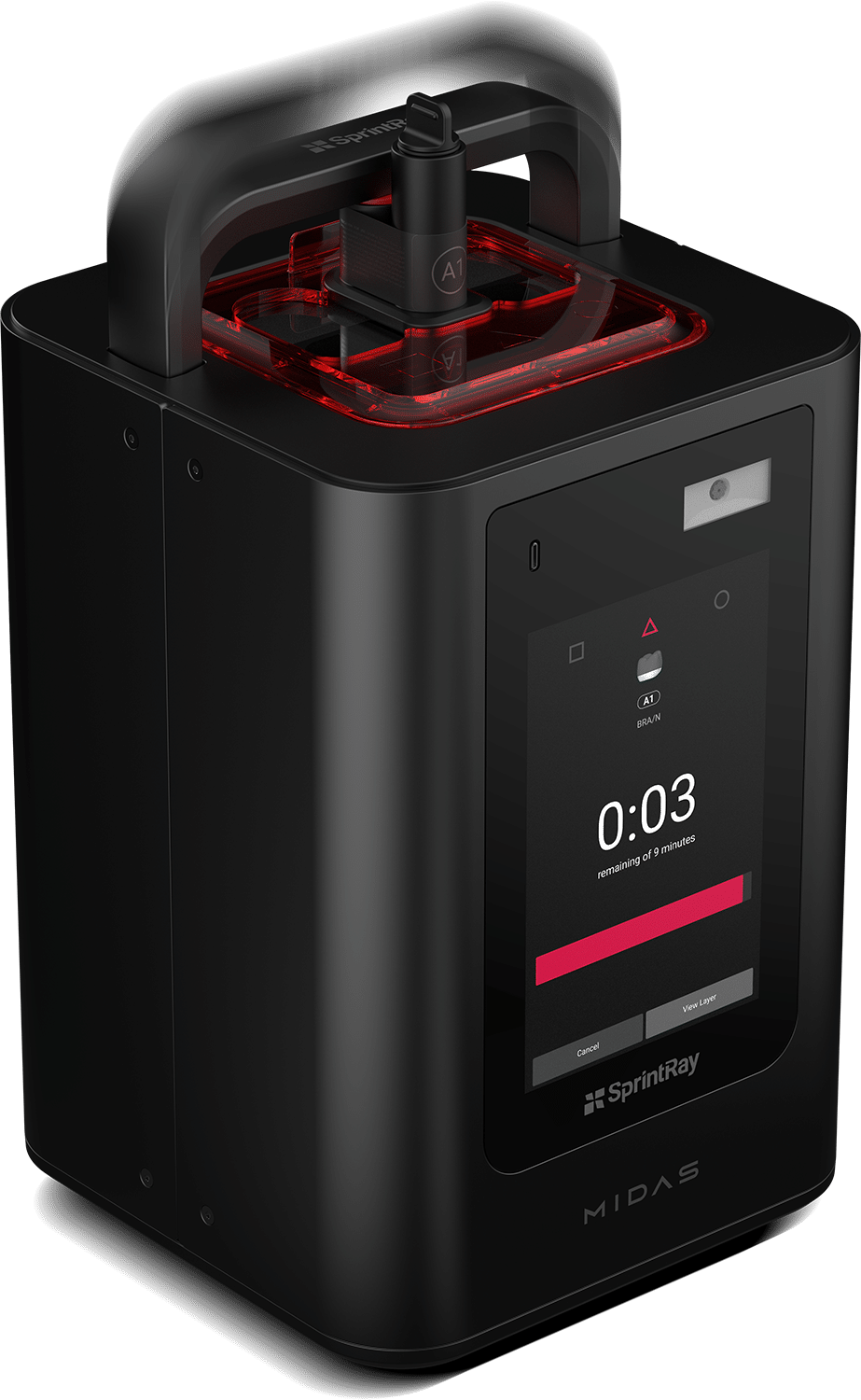

Scan, place, press
The whole print step is three touches.
- Scan the capsule barcode
- Place it in one of three slots
- Press to print — remove and extract the restoration

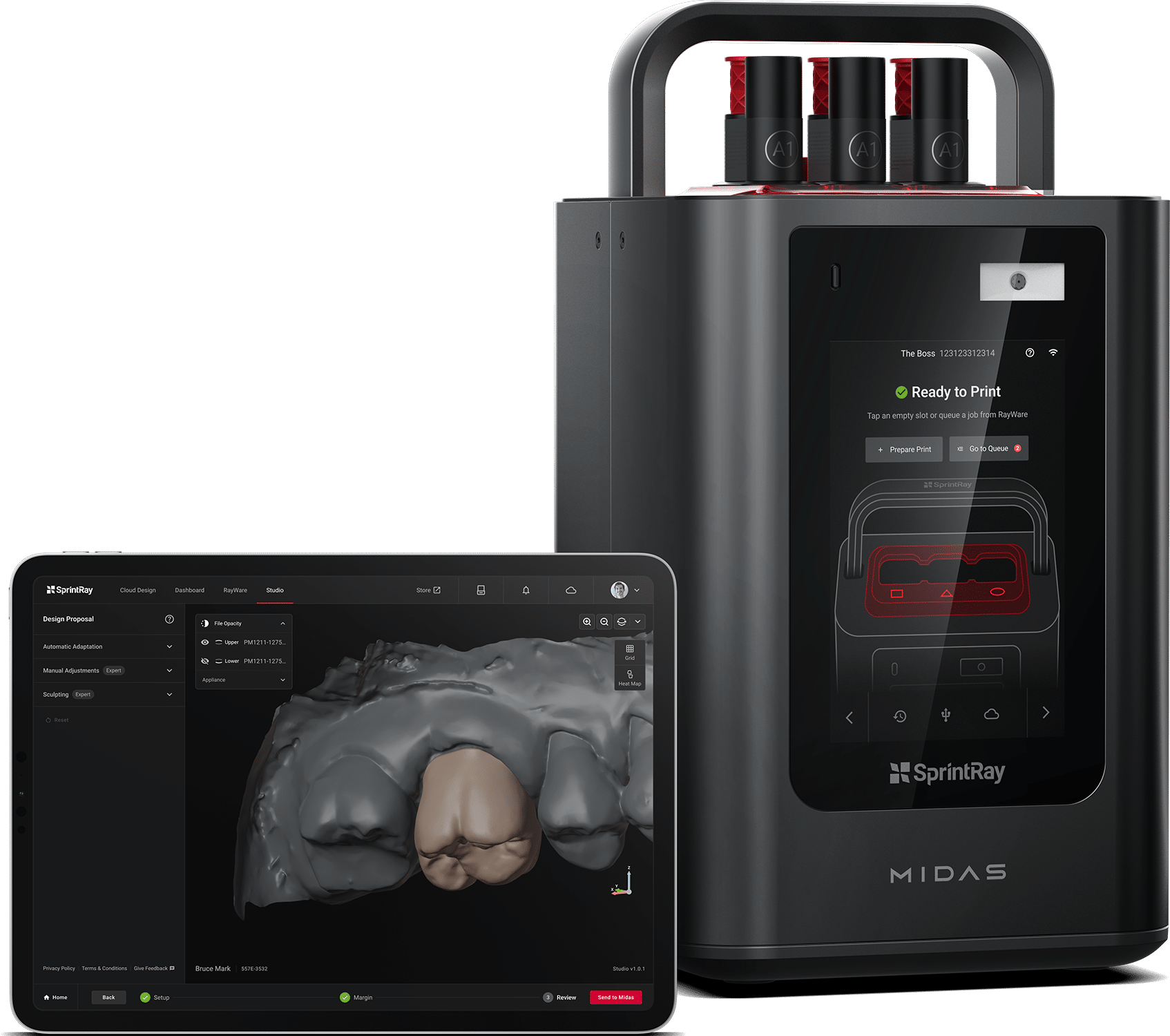

Designed by AI
SprintRay AI Studio turns your scan into a print-ready restoration.
- AI crown design from the intraoral scan
- Margin detection and print prep handled for you

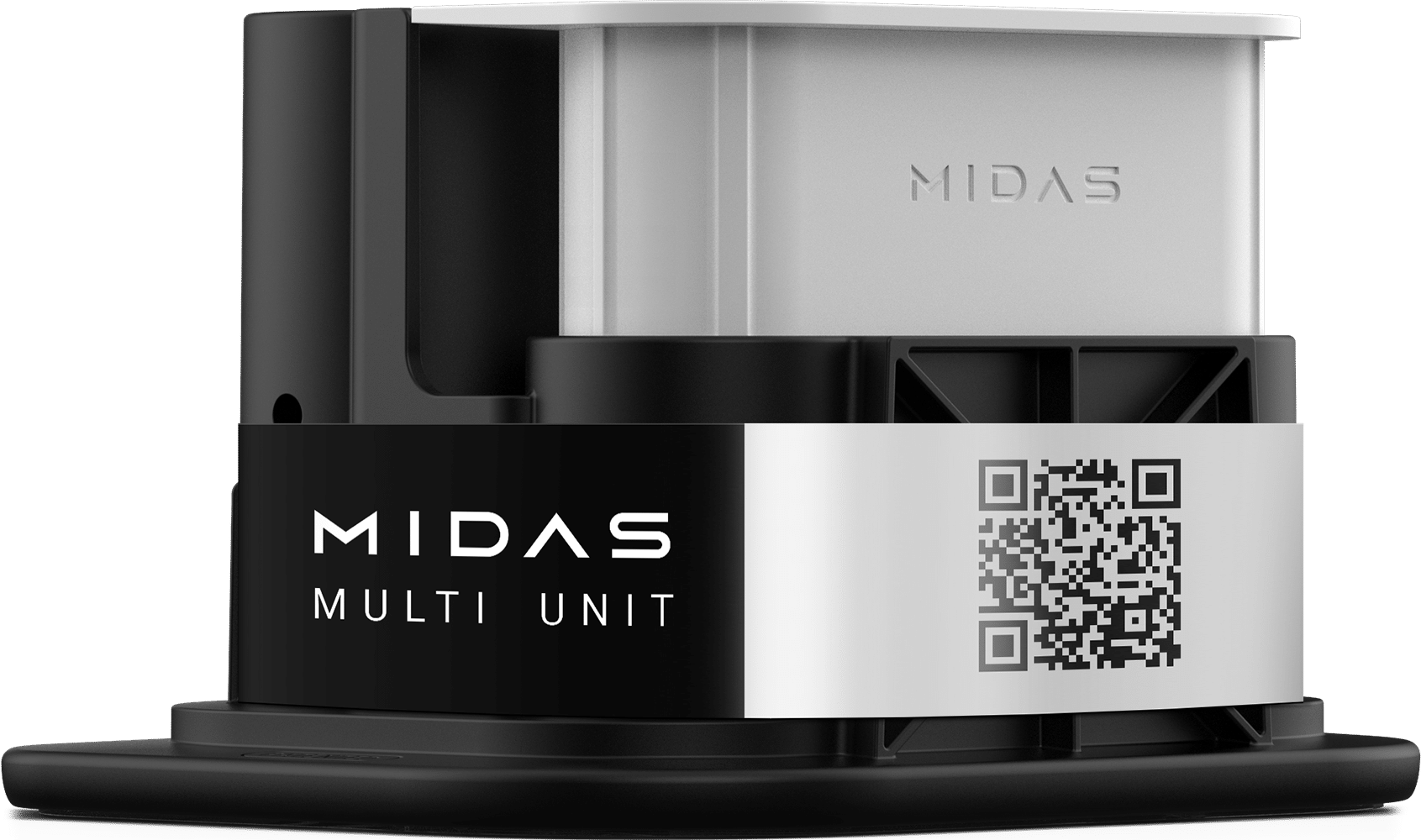

Single- and multi-unit capsules
Capsules sized for single crowns or multi-unit work.
- Single-unit capsules for crowns, inlays, onlays and veneers
- Multi-unit capsules for bridges and hybrid work

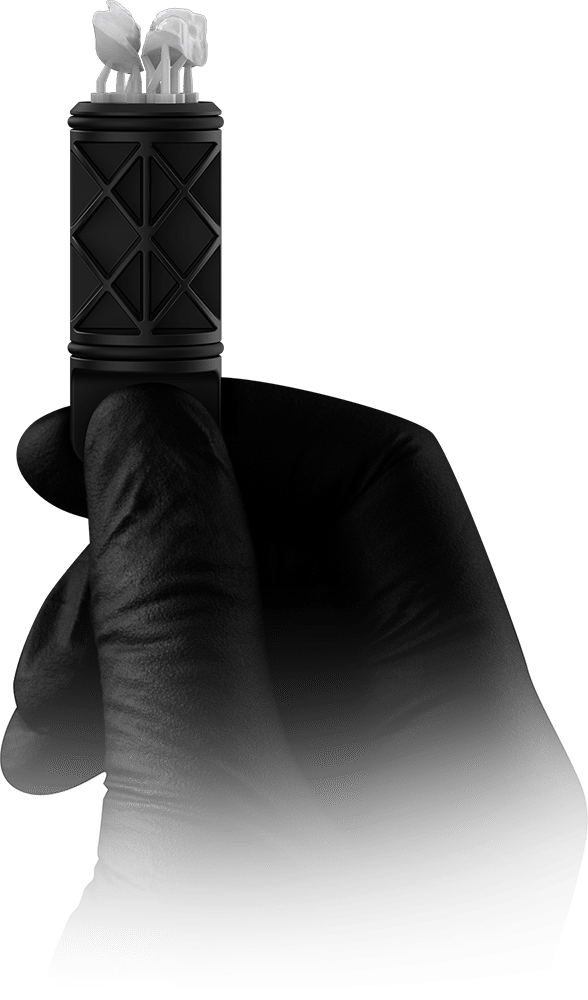

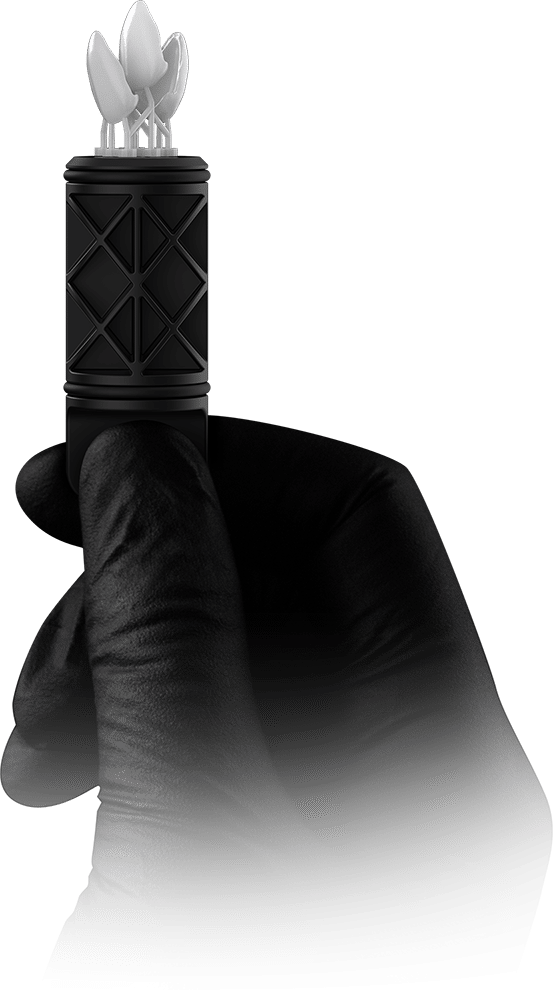

What you can print
Crowns, inlays/onlays and veneers in about 10 minutes.
Midas capsule materials
Midas Restore
Definitive crowns, inlays/onlays, veneers. >75% glass-ceramic + zirconia filler · 215 MPa biaxial flexural strength · 10.5 GPa flexural modulus · 82 HV hardness
Crown HT
Definitive crowns, inlays, onlays, veneers. >60% ceramic filler
OnX Tough 2
Fixed hybrid dentures and implant work. FDA-cleared · NanoFusion™ technology
Digital Temp
Provisional crowns, bridges, inlays, onlays. NanoFusion™ technology
SprintRay Midas Specifications
| Category | SprintRay Midas |
|---|---|
| Technology | Digital Press Stereolithography (DPS™) — viscosity-agnostic, pressurized capsules |
| Light source | 385 nm UV-A LED |
| Resolution | 45 µm direct projection |
| Capsule slots | 3, printed simultaneously |
| Print time | Under 10 minutes per job |
| Capsules | Single-use, sealed, barcode-verified for material, shade and expiration |
| Interface | 7-inch glass touchscreen, 8-core computer, integrated QR scanner, USB-C |
| Dimensions | 20 × 20 × 37 cm (8 × 8 × 14.5 in) |
| Shipping weight | 11 kg (24 lb) |
| Power | 140 W |
| Post-processing | SprintRay NanoCure |
Specifications from SprintRay.
What’s included from CAD-Ray
- ✓SprintRay Midas 3D printer
Tick any of these below before adding to cart.
- +1-year SprintRay ProTection Plan (printer)
Want NanoCure, training and free capsules? See our SprintRay Promo Bundles. Pro 2 owners: Midas Loyalty Pricing.

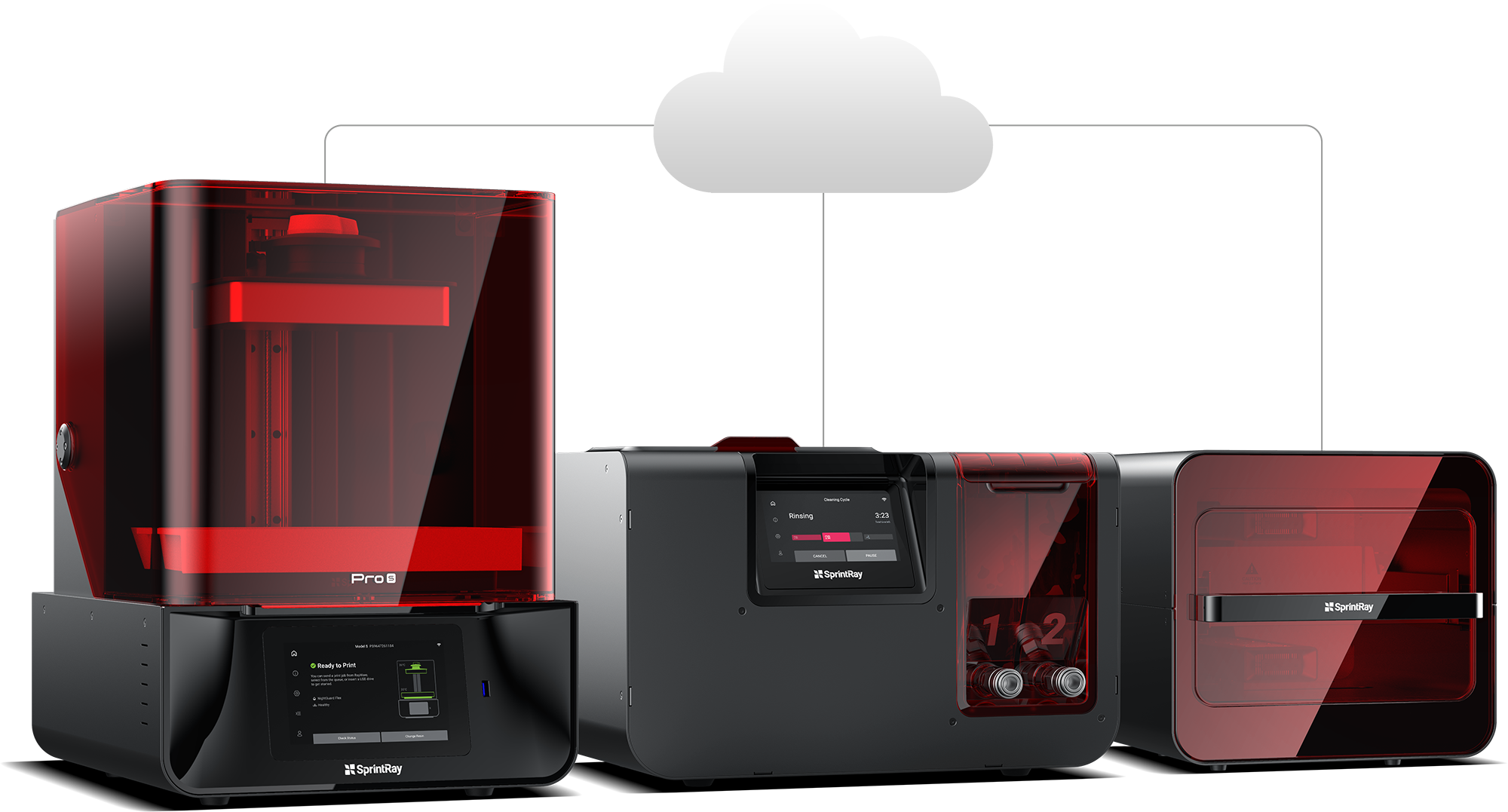

The SprintRay ecosystem
Print, wash and cure — connected through SprintRay Cloud.
- Smart Job Handoff passes each job from printer to ProWash S to NanoCure
- Resin profiles and software update automatically
- Validated workflows across 15+ indications
- One dealer — CAD-Ray — for install, training and support
Why buy your Midas from CAD-Ray?
- Professional installation and training by CAD-Ray technicians available — ask your rep or add it where offered below.
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Authorized SprintRay dealer — we install, train and support the whole SprintRay ecosystem.
- Capsules and supplies on our Quick Order Midas Capsules and Supplies page.
SprintRay Midas FAQ
Do I need a resin tank or build platform?
No. Midas prints from sealed single-use capsules — just wipe the print glass.
What can Midas print?
Definitive crowns, inlays, onlays and veneers, provisionals, and multi-unit work with multi-unit capsules.
What post-cures Midas restorations?
SprintRay NanoCure — included in our Midas + NanoCure bundles.
How long does a crown take?
SprintRay quotes design, print and post-cure of a definitive crown in under 30 minutes.
