Description
DOF · All-in-one 5-axis wet & dry mill

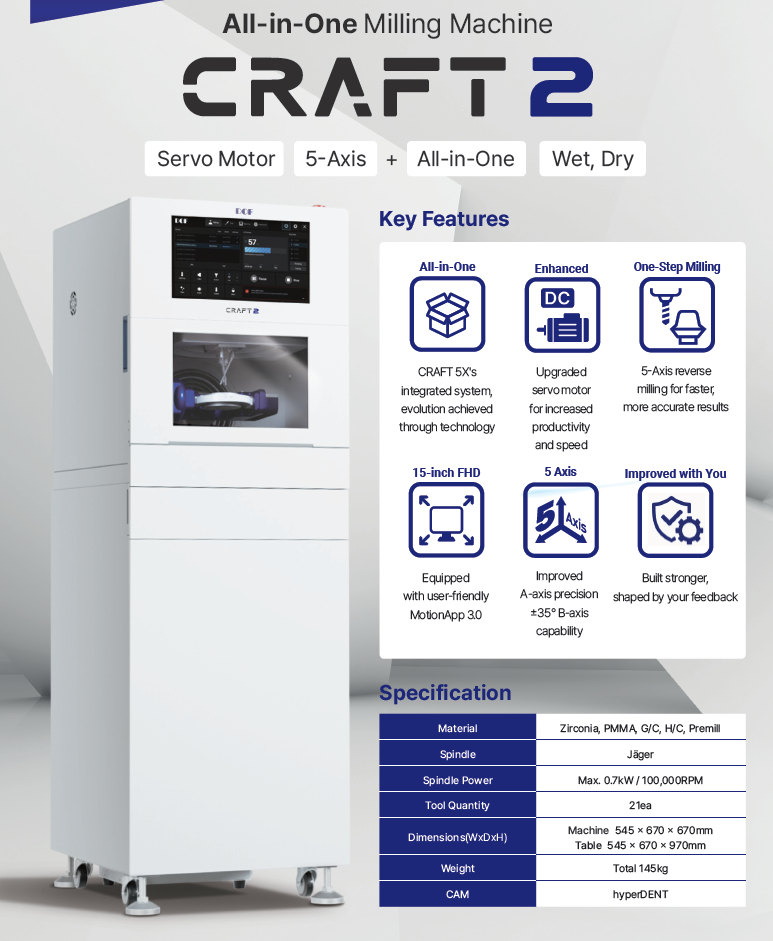

DOF CRAFT 2 5-Axis Milling Machine
Built-in PC, compressor, dust extractor and water pump.
The DOF CRAFT 2 is an all-in-one 5-axis mill that does both wet and dry milling. With the PC, compressor, dust extractor and water pump built in, it installs anywhere without extra equipment, and a 21-station tool changer handles everything from zirconia to titanium.
Key features
Truly all-in-one
Built-in PC, compressor, dust extractor and water pump, so there’s nothing extra to buy or plumb.
Wet and dry, 5-axis
Simultaneous 5-axis milling with A-axis ±360° and B-axis ±35°, including 90° milling of external surfaces.
21-station tool changer
Switch between zirconia, glass ceramic, PMMA and titanium jobs without changing tools by hand.
Remote monitoring
15.6″ Full HD touchscreen and the DOF mobile app for real-time monitoring over LAN or Wi-Fi.
Materials & indications
- Zirconia
- Glass ceramics
- Hybrid ceramics
- PMMA and wax
- Pre-milled abutments
- Titanium discs
- Crowns, bridges, veneers, inlays/onlays, custom abutments
DOF CRAFT 2 Specifications
| Category | DOF CRAFT 2 |
|---|---|
| Axes | 5 (simultaneous); A ±360°, B ±35° |
| Processing | Wet and dry |
| Spindle | Up to 0.7 kW, 100,000 rpm |
| Tool changer | 21 stations |
| Built in | PC, compressor, dust extractor, water pump |
| Display | 15.6″ Full HD touchscreen |
| Connectivity | Wired LAN and Wi-Fi; mobile monitoring app |
| Dimensions | 545 × 670 × 670 mm (machine); 545 × 670 × 970 mm with table |
| Weight | 145 kg |
| Power | 220 V, 16 A (110 V version also available) |
Specifications from DOF.
Package details
All-in-One Milling Machine
CRAFT 2 Flyer_eng- Built in PC, Compressor, Dust Extractor, and Water Pump
- CRAFT can be installed anywhere without space restriction.
- Easy set-up and maintenance
- Package Includes Hyperdent Compact CAM with Glass Ceramic Module
- 3 year Manufacturer Warranty
- O and C Clamp 98MM Puck Adaptor
- Premill abutment Jig for DESS abutments
- Glass Ceramic Jig for CEREC style CADCAM Blocks
- Starter kit with 1 of each tool
- On site installation and 2 complete days of workflow training included
- unlimited Remote CAM and workflow training
Why buy your DOF CRAFT 2 from CAD-Ray?
- On-site installation and in-office workflow training from CAD-Ray (see package details).
- Unlimited remote CAM, workflow and technical support from CAD-Ray.
- DOF tools, jigs and accessories on our DOF Tools & Accessories page.
DOF CRAFT 2 FAQ
Does the CRAFT 2 need a separate compressor or vacuum?
No. The compressor, dust extractor and water pump are all built in.
Can it mill titanium?
Yes, including titanium discs and pre-milled abutments.
What’s included?
Hyperdent Compact CAM with glass ceramic module, a 3-year warranty, jigs and a starter tool kit, plus on-site installation and 2 days of training. See the package details below.
More about the CRAFT 2
This package includes everything you need to get started
- Pro Install and in-office training for 2 days
- unlimited remote workflow and technical support from CAD-Ray
- 3 year warranty
- Hyperdent Compact Cam
- Tool Starter kit (one of each tool)
- Puck Holder
- Glass Ceramic (CEREC) holder
- Dess Premill Titanium Abutment holder
Evolution of a bestseller—beginning of an upgrade
Built upon the standards set by DOF’s bestseller, CRAFT 5X, the upgraded CRAFT 2 delivers new value.
Equipped with servo motor
Enhanced milling speed and high-precision performance
35° B-axis milling without angle limitations
The optimal solution for precise full-arch prosthetics
Equipped with a large 15-inch screen
Large screen at a glance, effortless operation
More than just an upgrade
All-new! Motion App
Tool life at a glance
The intuitive UI lets you grasp each tool’s life and position at a glance,
Tools are clearly displayed and systematically organized, enabling an efficient working environment.
Customized control optimized for workflow
You can freely set tool selection, processing order, and start position according to your workflow. Interrupted work can easily be resumed, and the current status and progress can be checked in real-time.
Smart control system that anyone can operate easily
You can freely set tool selection, processing order, and start position according to your workflow. Interrupted work can easily be resumed, and the current status and progress can be checked in real-time.
