Description
DOF · Compact 5-axis dry mill
DOF CRAFT DRY 5-Axis Milling Machine
A compact 5-axis dry mill with a built-in compressor.

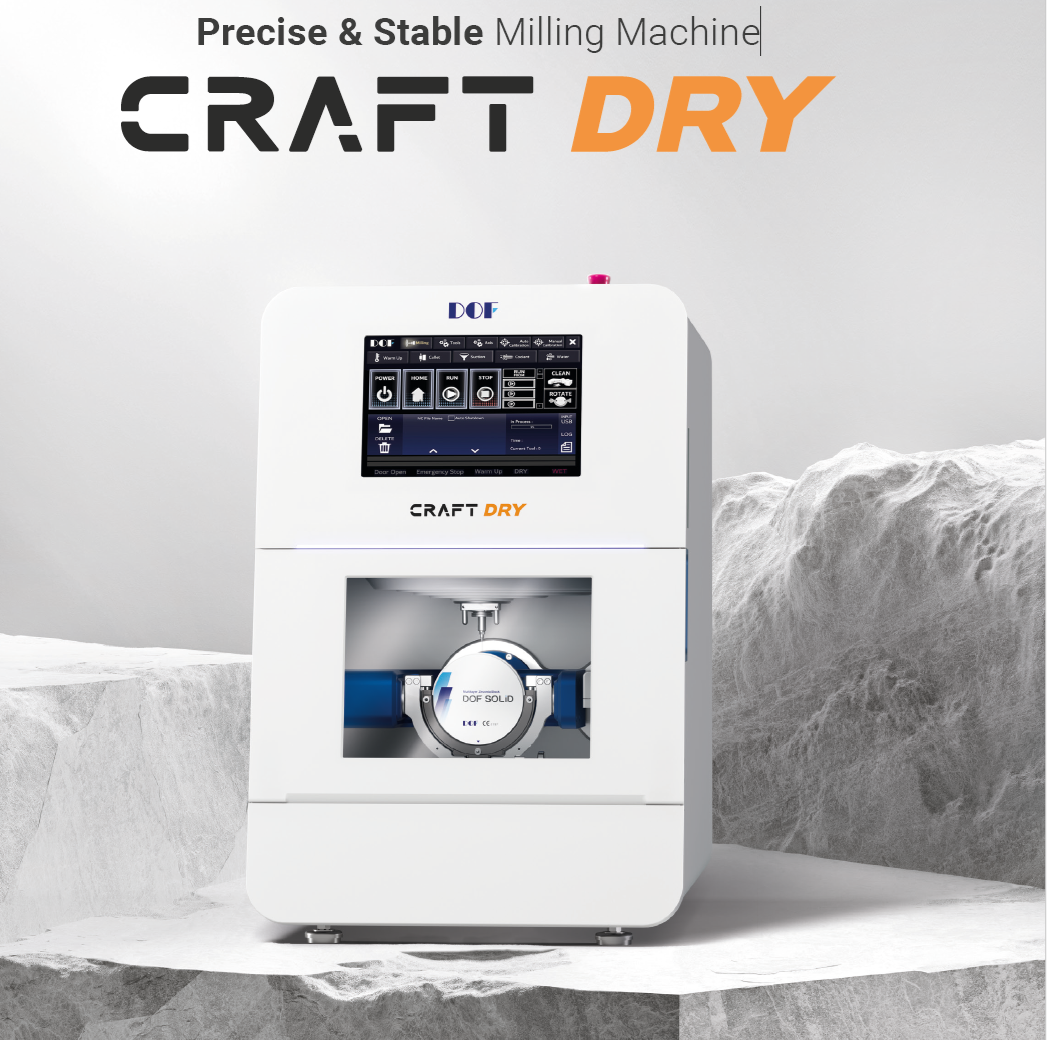

The DOF CRAFT DRY is a compact, all-in-one 5-axis dry mill. At 430 × 620 × 712 mm it fits in tight spaces, the built-in compressor and dust extraction mean no extra equipment, and a 21-tool changer switches between zirconia, PMMA and hybrid ceramic jobs automatically.
Key features
Compact footprint
At 430 × 620 × 712 mm it installs in even small spaces, and it’s easy to relocate.
No separate compressor
Built-in compressor and dust extraction mean no extra equipment and less noise.
One-touch jig change
Swap jigs in seconds without tools.
90° milling
Simultaneous 5-axis with 90° milling using the C-type jig.
Materials & indications
- Zirconia
- PMMA
- Hybrid ceramics
- Crowns and bridges
- Full-arch structures
- Bite splints and dentures
DOF CRAFT DRY Specifications
| Category | DOF CRAFT DRY |
|---|---|
| Axes | 5 (simultaneous), 90° milling |
| Processing | Dry |
| Spindle | 800 W, up to 60,000 rpm |
| Tool changer | 21 tools |
| Built in | Air compressor, dust extraction, touchscreen PC |
| Jig system | One-touch snap-in jig |
| Dimensions | 430 × 620 × 712 mm |
Specifications from DOF.
Package details
This package includes everything you need to get started
- Unlimited remote workflow and technical support from CAD-Ray
- 3 year warranty
- Hyperdent Compact Cam
- Tool Starter kit (one of each tool)
- Puck Holders (O and C Style Jig)
CRAFT_DRY_Eng
Why buy your DOF CRAFT DRY from CAD-Ray?
- On-site installation and in-office workflow training from CAD-Ray (see package details).
- Unlimited remote CAM, workflow and technical support from CAD-Ray.
- DOF tools, jigs and accessories on our DOF Tools & Accessories page.
DOF CRAFT DRY FAQ
Does the CRAFT DRY need a compressor?
No. The air compressor is built in.
Can it mill glass ceramics or titanium?
The CRAFT DRY is a dry mill for zirconia, PMMA and hybrid ceramics. For glass ceramics and titanium, see the CRAFT 2.
What’s included?
Hyperdent Compact CAM, a 3-year warranty, puck holders, a starter tool kit and unlimited remote support. See the package details below.
More about the CRAFT DRY

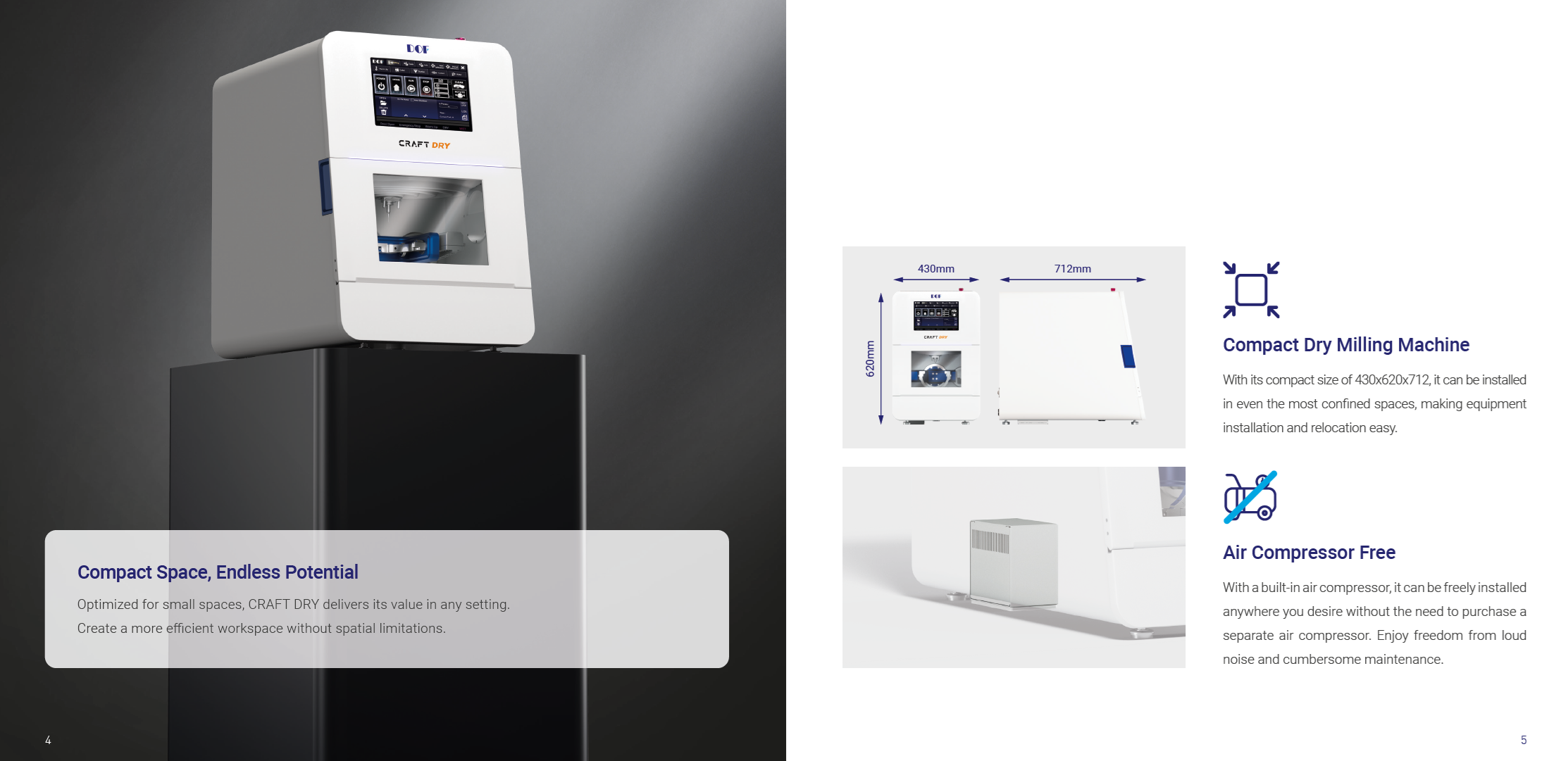

With its compact size of 430x620x712, it can be installed
in even the most confined spaces, making equipment
installation and relocation easy
Air Compressor Free
With a built-in air compressor, it can be freely installed
anywhere you desire without the need to purchase a
separate air compressor. Enjoy freedom from loud

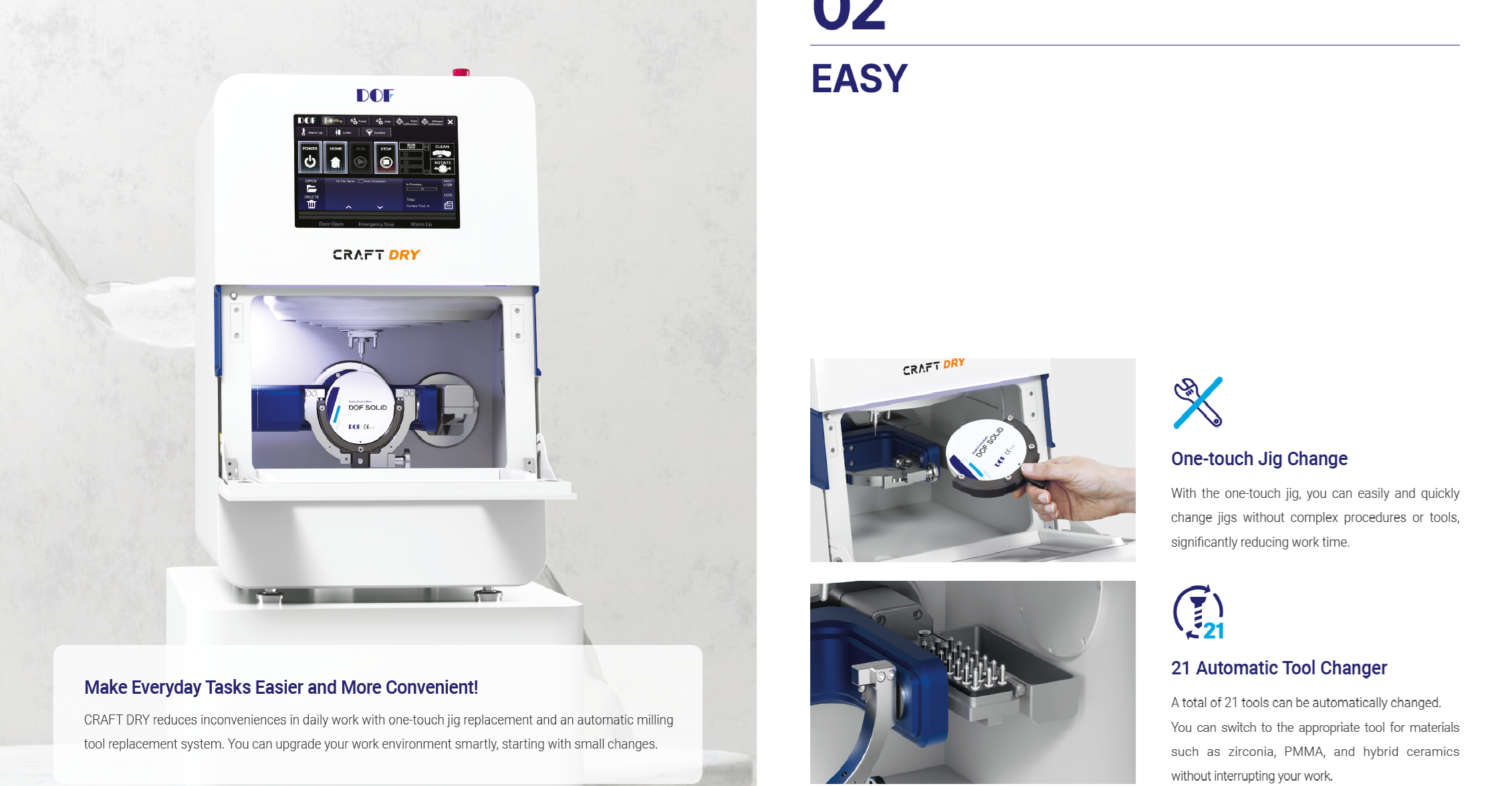

One-touch Jig Change
With the one-touch jig, you can easily and quickly
change jigs without complex procedures or tools,
significantly reducing work time.
noise and cumbersome maintenance.
21 Automatic Tool Changer
A total of 21 tools can be automatically changed.
You can switch to the appropriate tool for materials
such as zirconia, PMMA, and hybrid ceramics
without interrupting your work.
