Description
vhf · 4-axis wet chairside mill

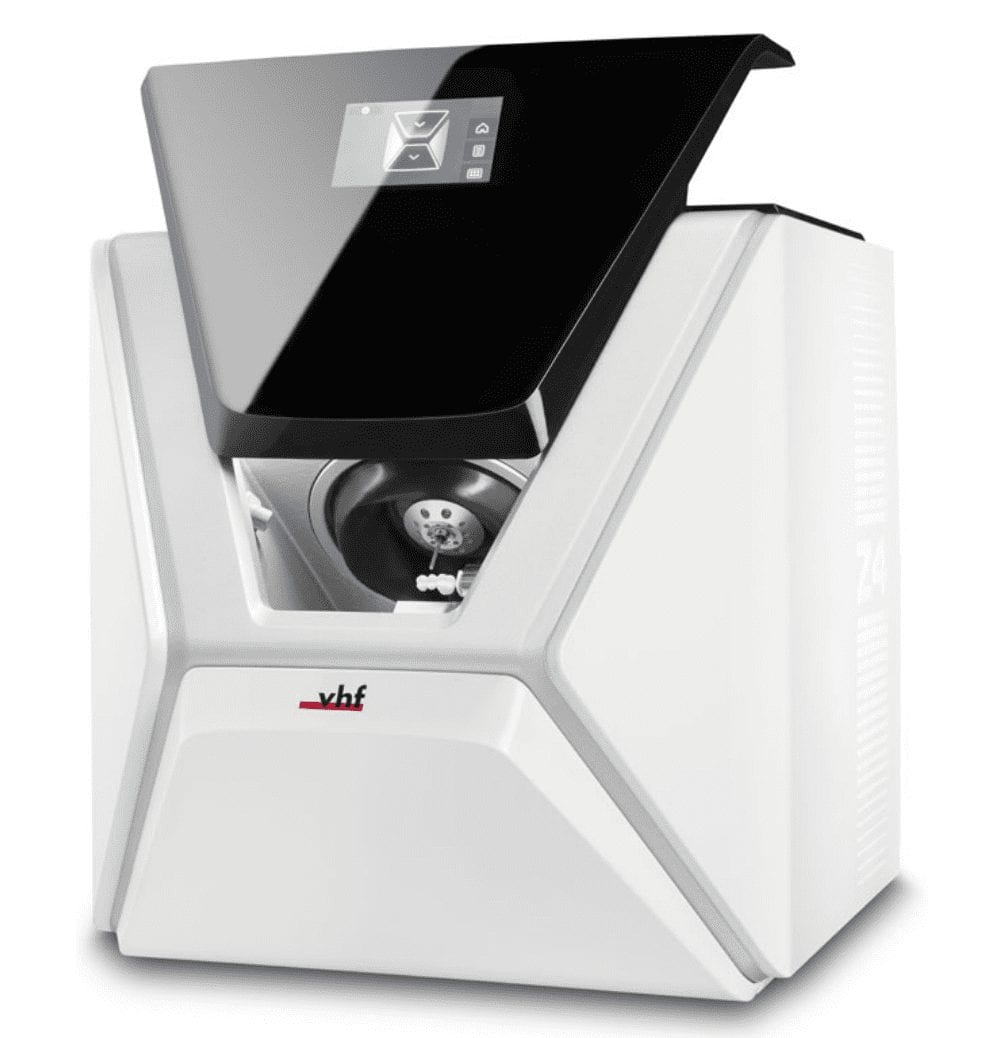

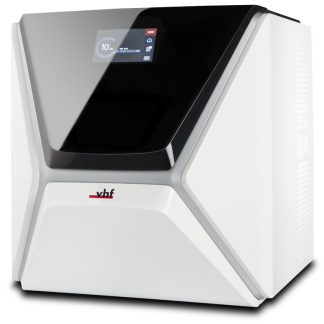

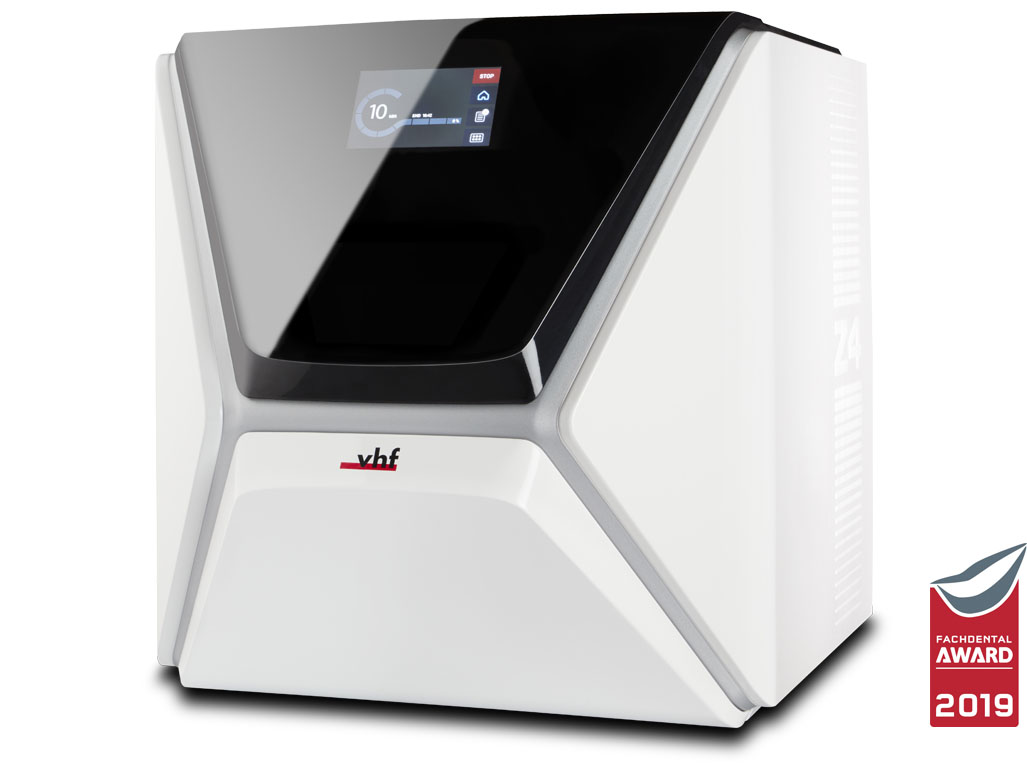

VHF Z4 Milling Machine
Restorations in under 10 minutes, with 2-second block insertion.
The VHF Z4 is a premium 4-axis wet chairside mill with a 100,000 rpm spindle, integrated touchscreen and Wi-Fi. Direct block technology clamps a block in about 2 seconds, and most restorations finish in under 10 minutes.
Key features
Fast chairside restorations
Most restorations are finished in under 10 minutes.
Direct block technology
Insert and clamp a block in about 2 seconds, without tools.
Built-in air supply
Internal compressed air supply, so no external air line is needed.
Wide material range
About 40 block materials and more than 800 prefabricated titanium abutment blanks. Validated with 3Shape and exocad.
Materials
- Glass ceramics
- Zirconia
- Composites
- Plastics
- Titanium (including prefab abutment blanks)
- Blocks up to 45 × 20 × 20 mm
VHF Z4 Specifications
| Category | VHF Z4 |
|---|---|
| Axes | 4 |
| Processing | Wet (pure water, except for titanium) |
| Spindle | High-frequency asynchronous, up to 100,000 rpm, 340 W peak |
| Tool changer | Removable, material-coded 6-tool magazine |
| Blocks | Up to 45 × 20 × 20 mm |
| Repeat accuracy | 3 µm |
| Compressed air | Built-in; no external supply needed |
| Controls | Integrated touchscreen, Wi-Fi, motorized working chamber |
| Dimensions | 471 × 572 × 507 mm (closed) |
| Weight | 66 kg |
Specifications from vhf.
What’s included from CAD-Ray
- VHF Z4 milling machine
- Universal CEREC-style block holder
- Free Clinux by CAD-Ray CAD software
Optional add-ons you can choose below: CAD-Ray installation and training and the Z4 starter tool set.
Why buy your VHF Z4 from CAD-Ray?
- Free Clinux by CAD-Ray CAD software with your machine, so you can design and mill chairside right away.
- Optional professional installation and training by a CAD-Ray technician (add it to your bundle below).
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- VHF tools, holders and accessories on our VHF Milling Tools & Accessories page.
VHF Z4 FAQ
How fast is the Z4?
Most restorations finish in under 10 minutes.
Does it need an air compressor?
No. Compressed air is supplied internally.
Can it mill titanium abutments?
Yes. It supports more than 800 prefabricated titanium abutment blanks.
