vhf · 5-axis dry mill

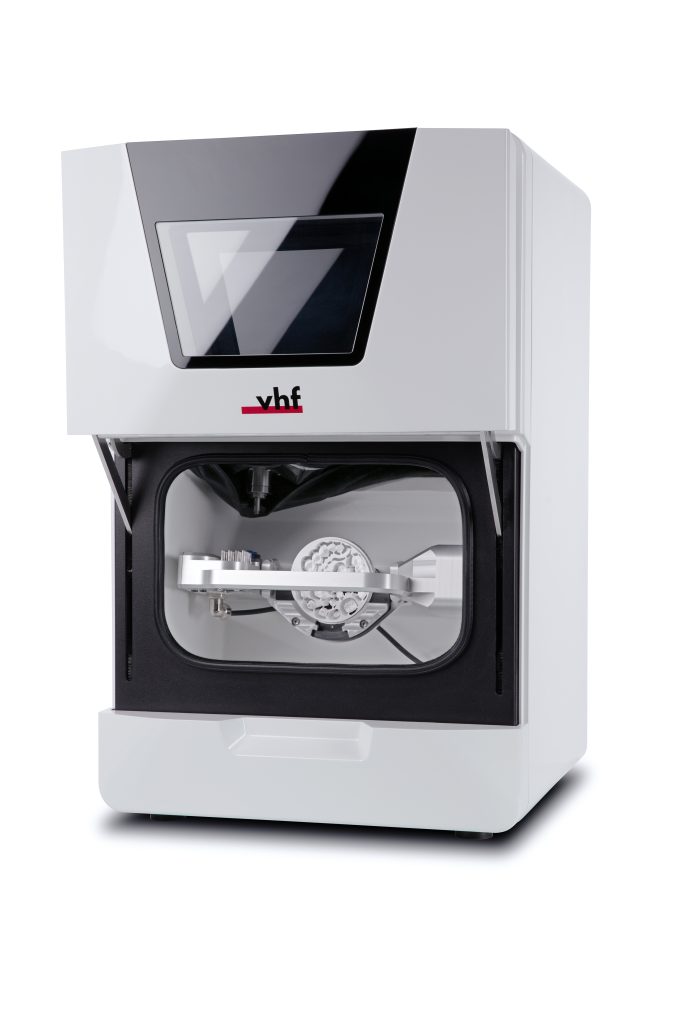

VHF E5 Milling Machine
5-axis disc and block milling, plug-and-mill, no compressed air.
The VHF E5 is a 5-axis dry mill for 98.5 mm discs and blocks. A 16-tool changer, cast-aluminum body and 3 µm repeat accuracy deliver lab-quality results, and like the E4 it needs no compressed air or compressor.
Key features
5-axis simultaneous milling
Mill complex geometries, including 90° anterior work with the C-shaped holder.
Discs and blocks
98.5 mm discs as standard (110 mm holders optional), or up to 6 blocks with the optional block holder.
16-tool changer
Automatic magazine with front-door access for 16 tools plus an airtool.
No compressed air
Airtool technology means no external air line and no compressor.
Materials
- Zirconia
- Composites
- Plastics and wax
- Glass ceramics
- Titanium
- CoCr sintered metals
- Discs 98.5 mm, 10–40 mm thick
VHF E5 Specifications
| Category | VHF E5 |
|---|---|
| Axes | 5 (simultaneous) |
| Processing | Dry milling |
| Spindle | Up to 60,000 rpm, 800 W peak |
| Tool changer | 16 tools + 1 airtool |
| Blanks | 98.5 mm discs (110 mm optional); blocks up to 40 × 20 × 20 mm; 10–40 mm thick |
| Repeat accuracy | 3 µm |
| Compressed air | Not required |
| Dimensions | 472 × 484 × 734 mm (door closed) |
| Weight | 47 kg |
| CAM software | dentalcam with directmill |
Specifications from vhf.
What’s included from CAD-Ray
- VHF E5 milling machine
- Universal puck holder
- Free Clinux by CAD-Ray CAD software
Optional add-ons you can choose below: CAD-Ray installation and training, Renfert suction unit and Ivotion mounting aid set.
Why buy your VHF E5 from CAD-Ray?
- Free Clinux by CAD-Ray CAD software with your machine, so you can design and mill chairside right away.
- Optional professional installation and training by a CAD-Ray technician (add it to your bundle below).
- Ongoing workflow and technical support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- VHF tools, holders and accessories on our VHF Milling Tools & Accessories page.
VHF E5 FAQ
Does the E5 need compressed air?
No. It needs neither an external air connection nor a built-in compressor.
What disc sizes does it take?
98.5 mm discs as standard, with optional 110 mm holders, and up to 6 blocks with the optional block holder.
Can it mill anterior teeth at 90°?
Yes, using the C-shaped holder.
