DOF · Desktop lab scanner

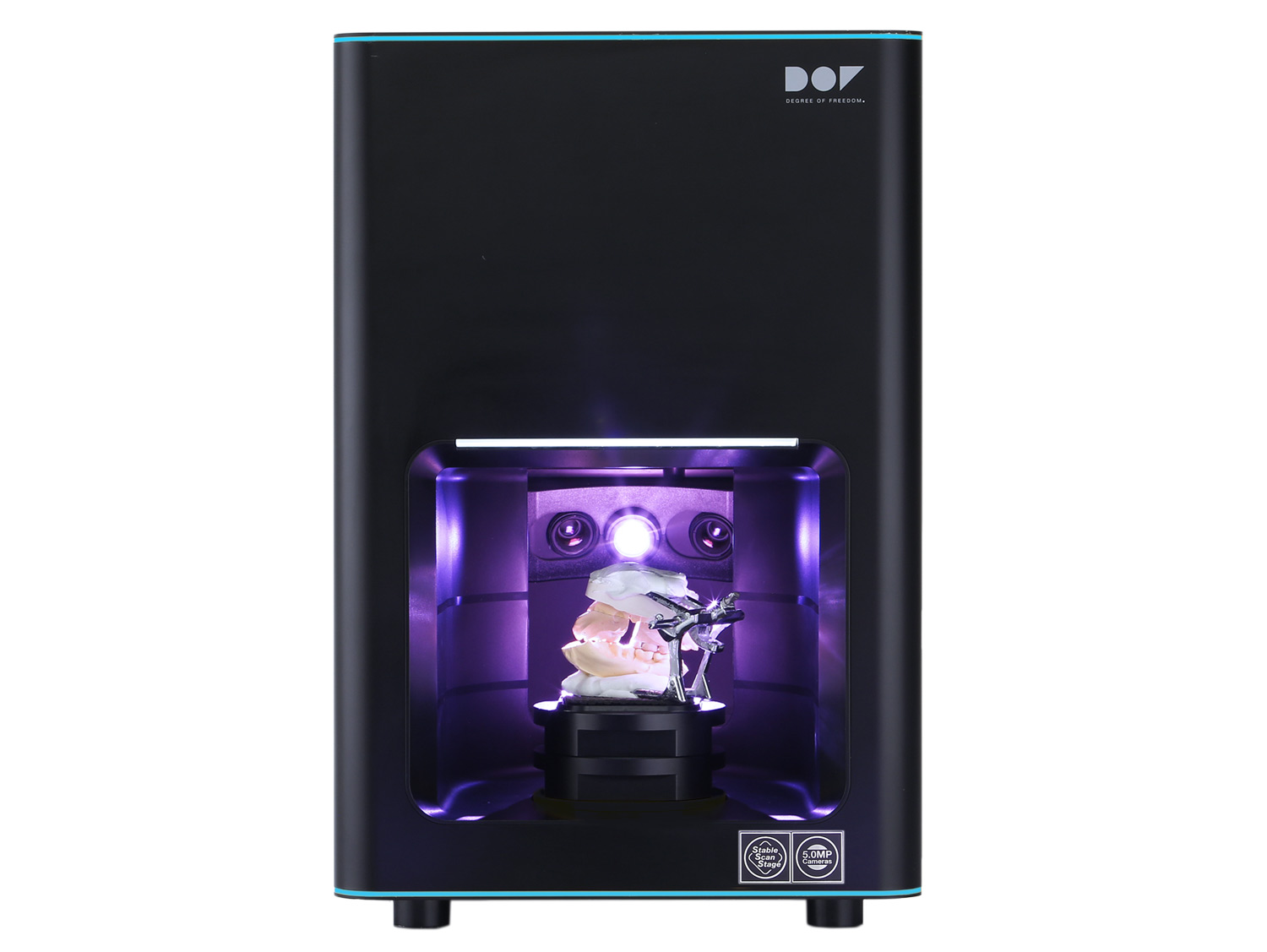

DOF Freedom X5 Desktop Scanner
No jigs. No model fixing. Full cases in about 3 minutes.
The DOF Freedom X5 uses DOF’s patented moving-camera system: the cameras move around the model instead of the model being clamped and tilted. That means no jigs, no model fixing, and full cases in about 3 minutes with 5 µm accuracy.
Key features
Patented moving cameras
The cameras move around the model, so there’s no need to fix or tilt it, and no jig is required.
5 MP UHD cameras
Dual 5 MP industrial cameras (Sony sensor) deliver low-noise images and sharp margin lines.
Articulator Direct
Scan models straight on the articulator to capture the occlusal relationship.
Real-color scanning
Capture color as well as geometry, useful for partial frameworks and case communication.
What it scans
- Single dies and multi-die
- Full arch models
- Articulators (Articulator Direct)
- Impressions and interproximal areas
- Post and core
- Transfer plates
- Implant models with scan bodies
DOF Freedom X5 Desktop Scanner Specifications
| Category | DOF Freedom X5 |
|---|---|
| Cameras | 2 × 5 MP UHD (Sony sensor) |
| Accuracy | 5 µm |
| Full case scan time | About 3 minutes |
| Scan method | Patented moving-camera system (no jig or model fixing) |
| Color | Real-color and monochrome scanning |
| Software | DOF ScanApp: auto alignment, scan body fitting, partial matching, virtual articulation, STL import |
| Model number | DS-FX-002 (110 V) |
| Warranty | 2 years |
Why buy your DOF Freedom X5 from CAD-Ray?
- 2-year warranty included.
- Optional add-on training from CAD-Ray for $1,000.
- CAD-Ray also sells DOF Craft milling machines, tools and accessories, so your DOF scan-to-mill workflow is supported in one place.
DOF Freedom X5 FAQ
Does the Freedom X5 need jigs?
No. The cameras move around the model, so you don’t need jigs or model fixing.
Can it scan on the articulator?
Yes. Articulator Direct mode scans models on the articulator to capture the bite relationship.
Is training included?
A 2-year warranty is included. Hands-on training is available as an add-on for $1,000.
