Shining 3D · Desktop lab scanner

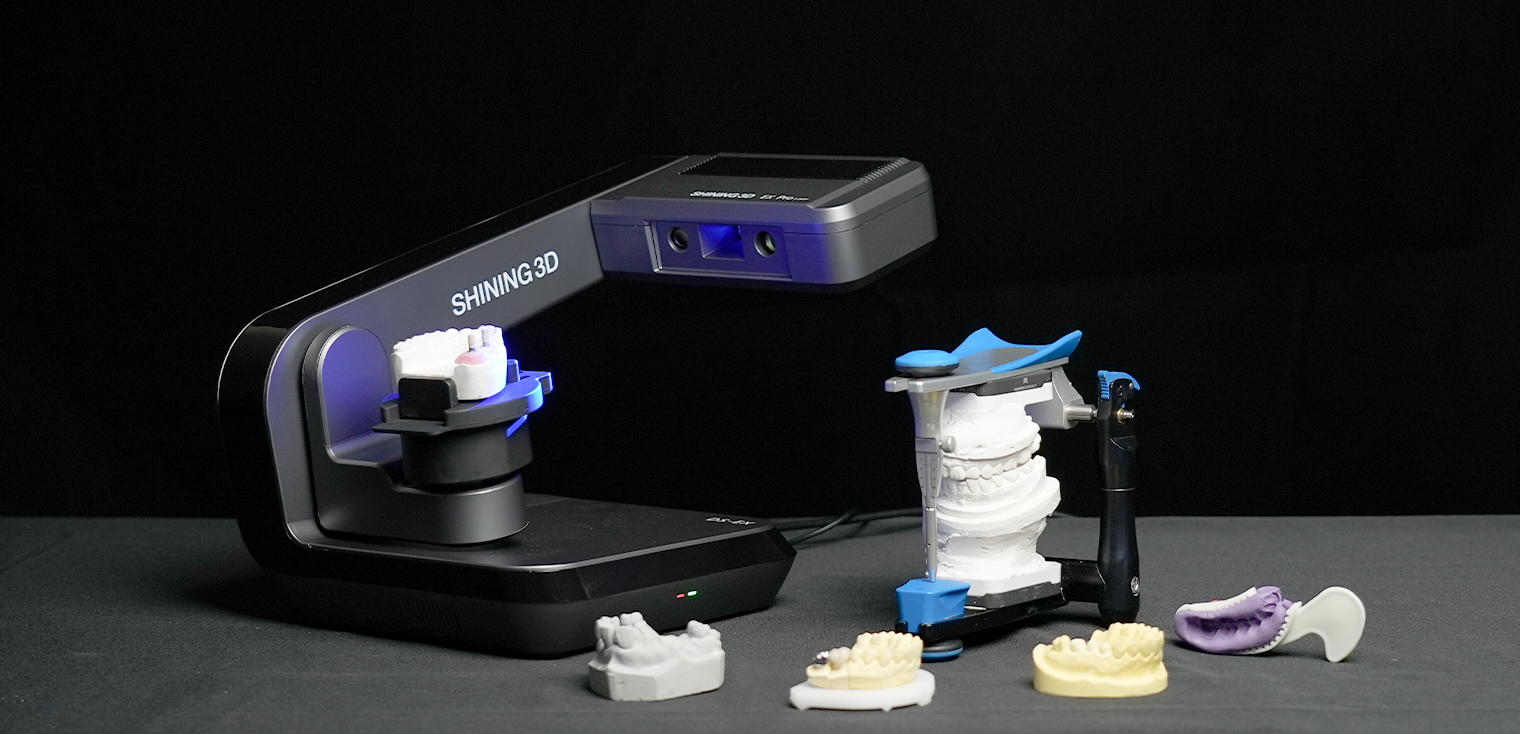

Shining 3D AutoScan-DS-EX Pro (H)
Dual 5.0 MP cameras, ≤ 8 µm accuracy and a 7-second full arch.
The AutoScan-DS-EX Pro (H) is Shining 3D’s high-speed desktop scanner. Dual 5.0 MP cameras and blue-light scanning capture fine detail at ≤ 8 µm accuracy, and backstage processing keeps the scanner working while data builds.
Key features
Dual 5 MP cameras
Two high-resolution cameras with blue light capture sharp margins and fine anatomy.
Backstage processing
Scan the next model while the previous one is still processing, so the scanner never sits idle.
Versatile scan modes
Multi Path, High Quality, AI, Texture, HDR and reduced-brightness modes for difficult materials.
Flexible workflows
All-in-one and triple-tray workflows, articulator transfer, impressions and up to 8 dies at once.
What it scans
- Single dies and multi-die (up to 8)
- Full arch and bite
- Impressions
- Articulator transfer
- Texture models
- Implant models
Shining 3D AutoScan-DS-EX Pro (H) Specifications
| Category | AutoScan-DS-EX Pro (H) |
|---|---|
| Cameras | 2 × 5.0 MP |
| Light source | Blue light |
| Accuracy | ≤ 8 µm |
| Full arch (bite) | 7 seconds |
| Upper/lower jaw | 14 seconds |
| 1–4 dies | 18 seconds |
| 5–8 dies | 30 seconds |
| Impression | 66 seconds |
| Output formats | STL, PLY, OBJ |
| Interface | USB 3.0 |
| Power | DC 24 V |
| Dimensions | 385 × 260 × 270 mm |
| Weight | 5.0 kg |
Specifications from Shining 3D.
Why buy your AutoScan-DS-EX Pro (H) from CAD-Ray?
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- CAD-Ray also sells Shining 3D intraoral scanners, printers and accessories, so your whole Shining workflow is supported in one place.
AutoScan-DS-EX Pro (H) FAQ
What file formats does the DS-EX Pro (H) export?
STL, PLY and OBJ, so you can design in exocad or any open CAD software.
Can it scan impressions and articulators?
Yes. It supports impression scanning (about 66 seconds) and articulator transfer.
How many dies can I scan at once?
Up to 8 dies, in about 30 seconds for 5–8 dies.
