Medit T-Series · Flagship lab scanner

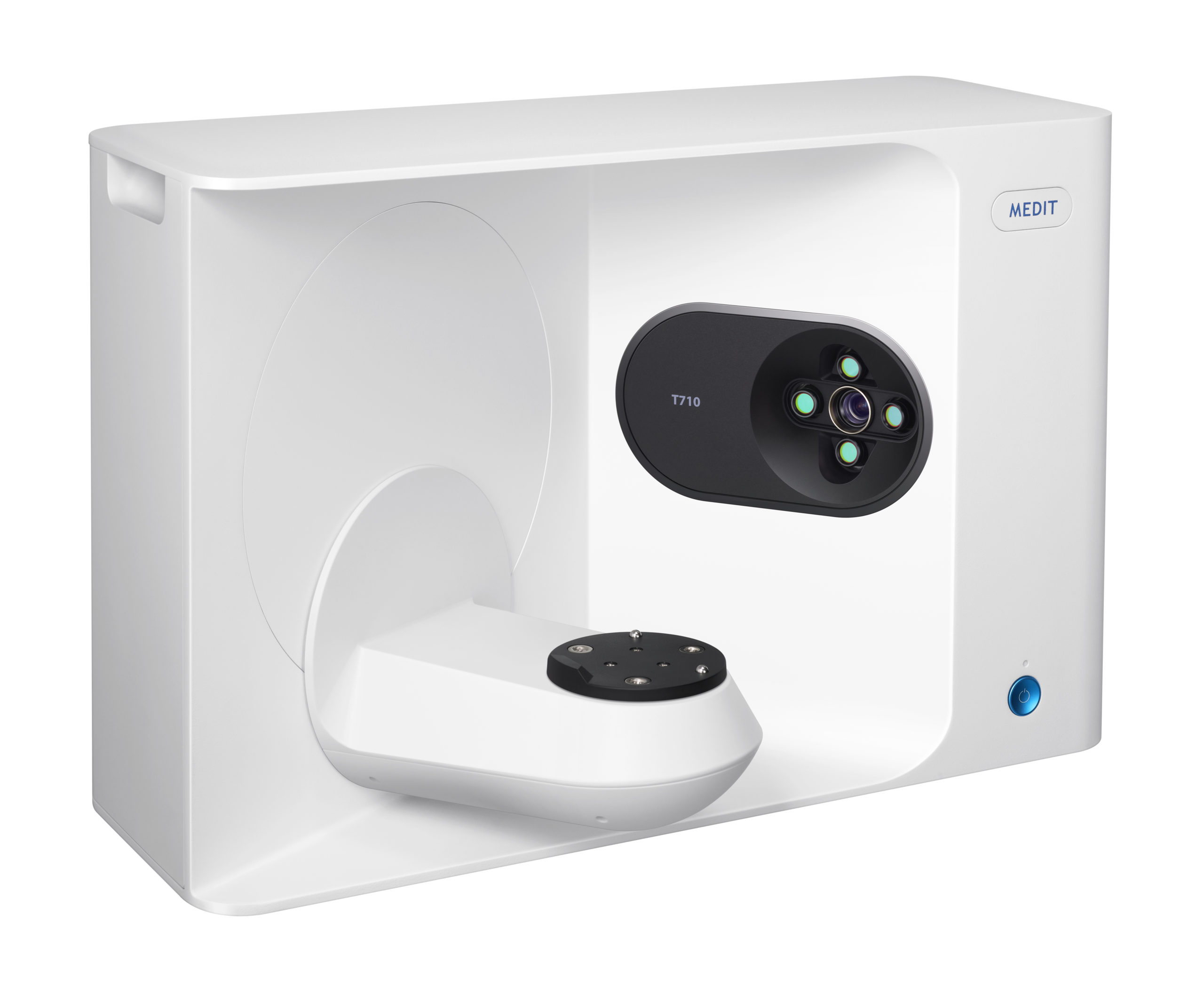

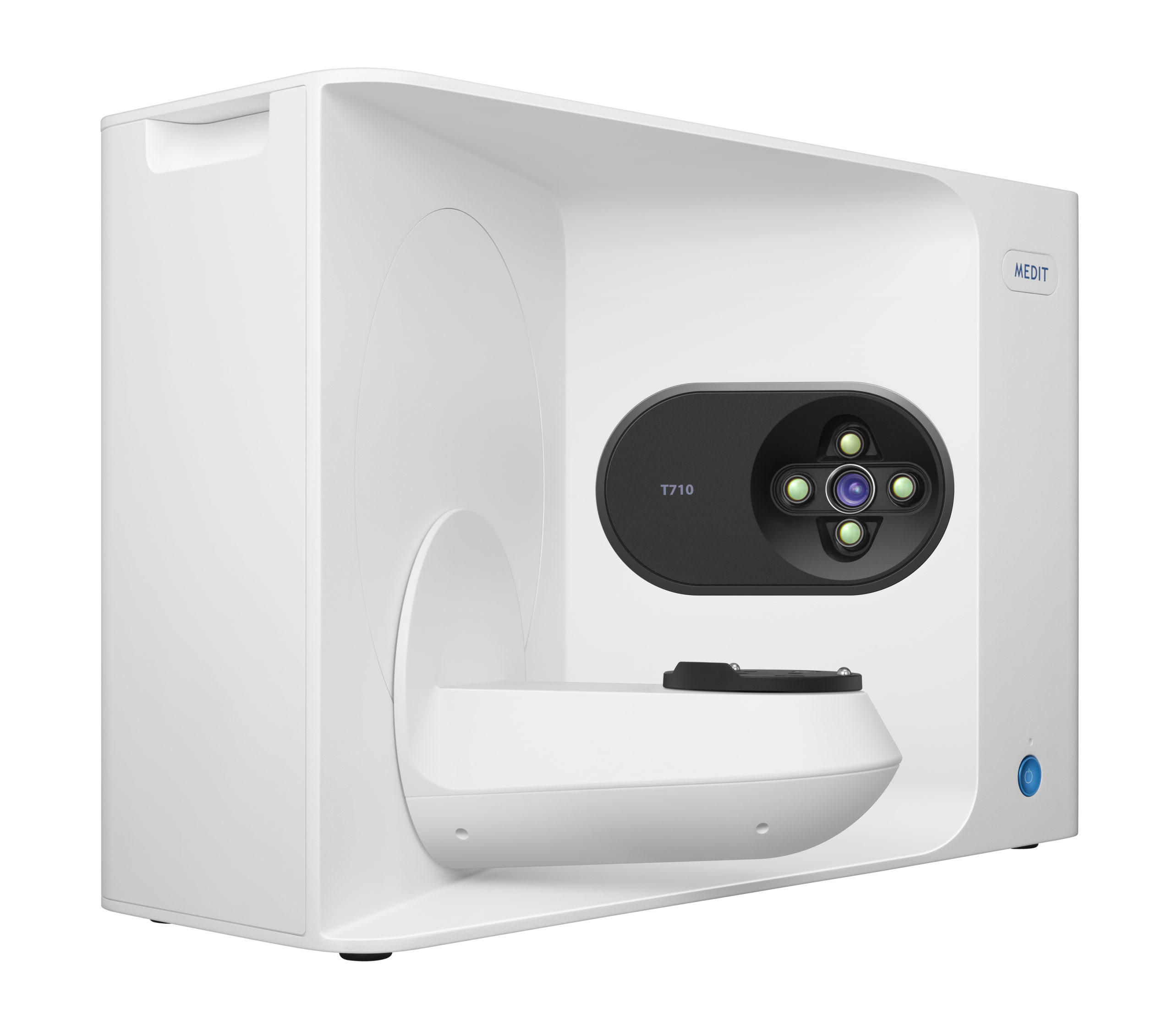

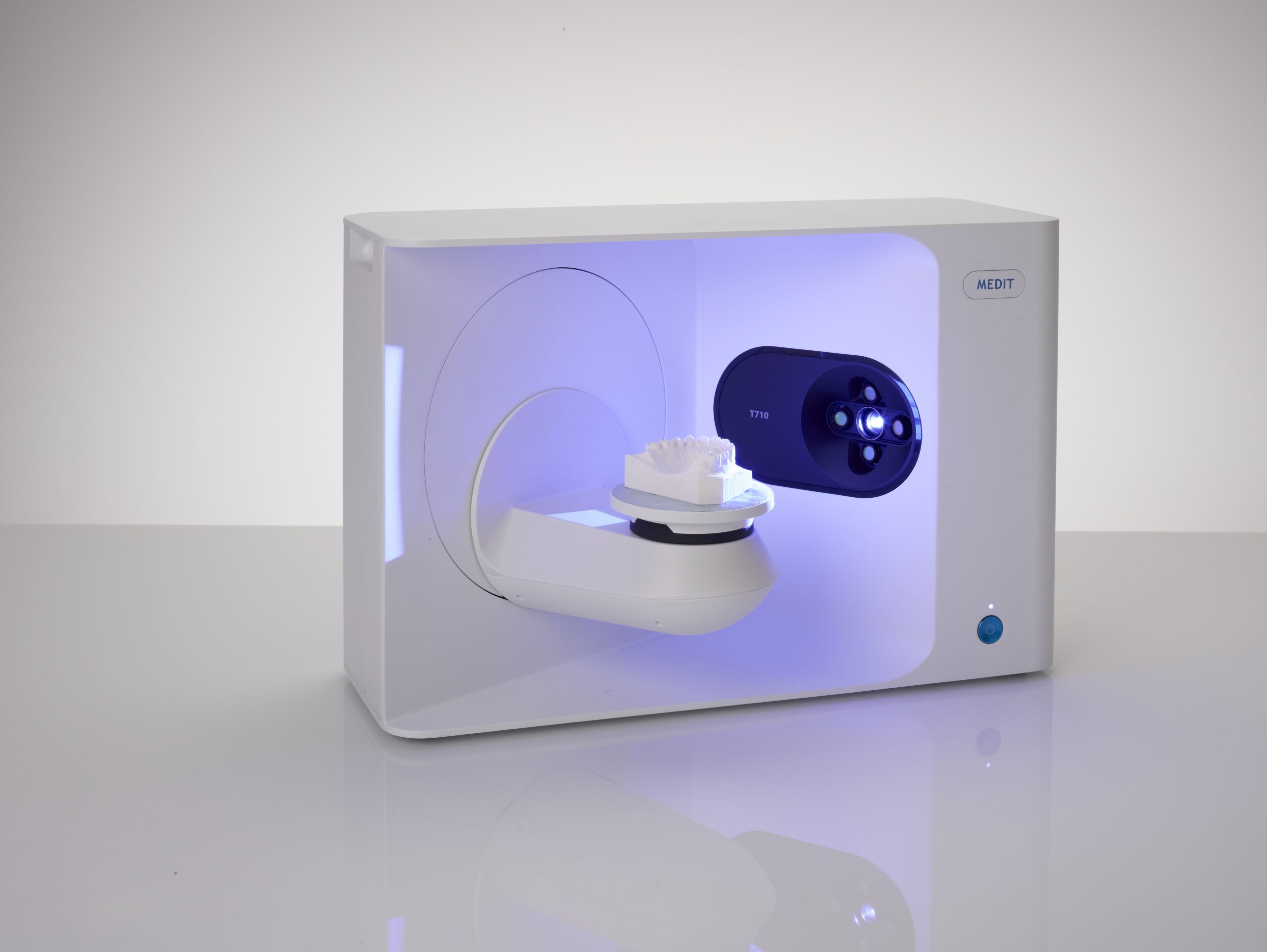

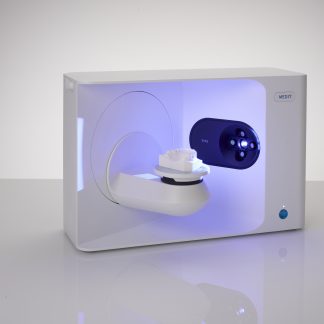

Medit T710 Desktop Scanner
Four 5 MP cameras, 4 µm accuracy and an 8-second full arch.
The Medit T710 is the top of Medit’s T-Series. Four 5.0 MP cameras remove blind spots, so it handles everything from single dies to impressions, articulators and replica dentures with 4 µm accuracy.
Key features

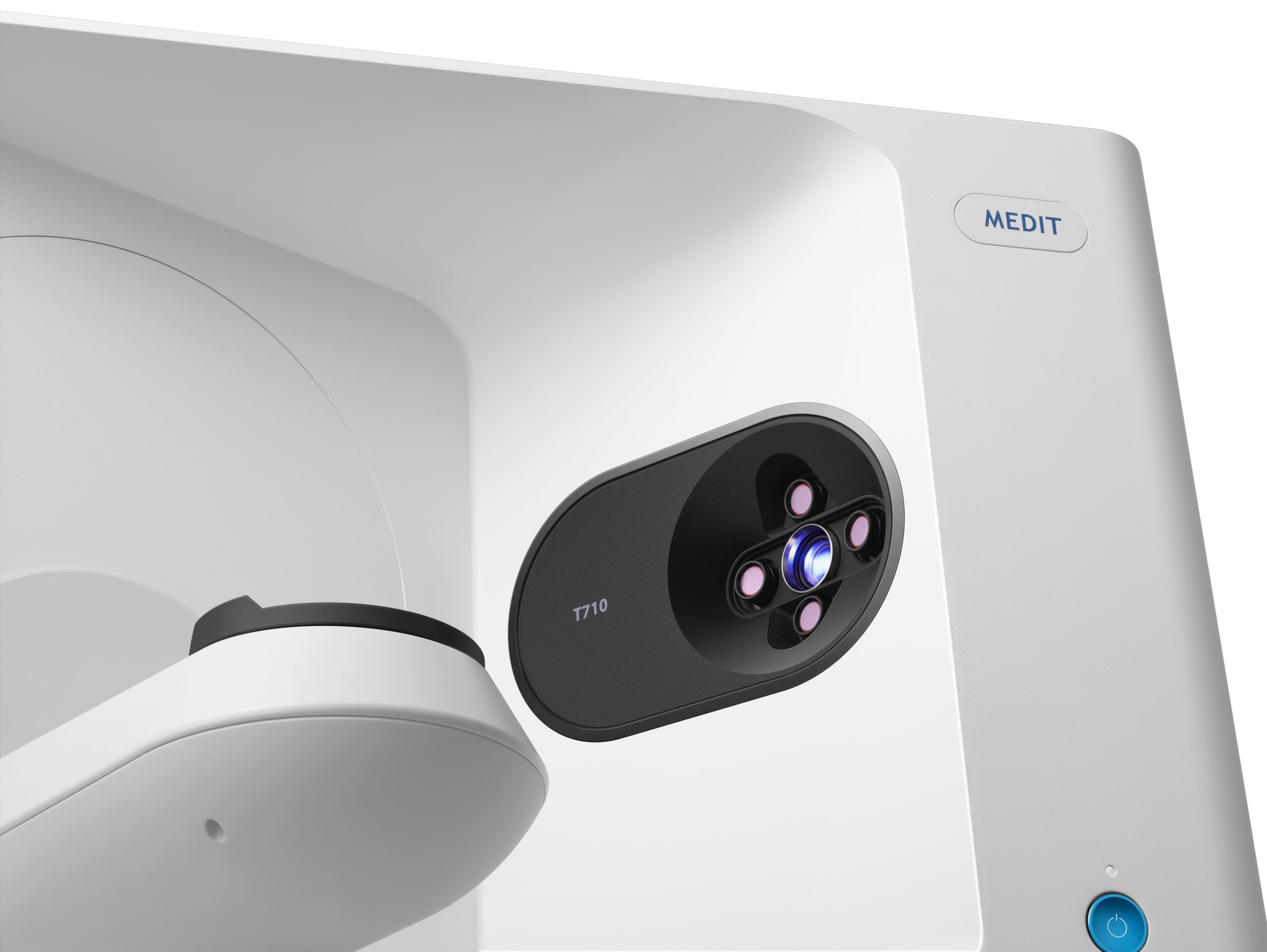

Four-camera system
Four 5.0 MP cameras capture undercuts and interproximal areas from more angles, cutting down on rescans and blind spots.
Impressions and articulators

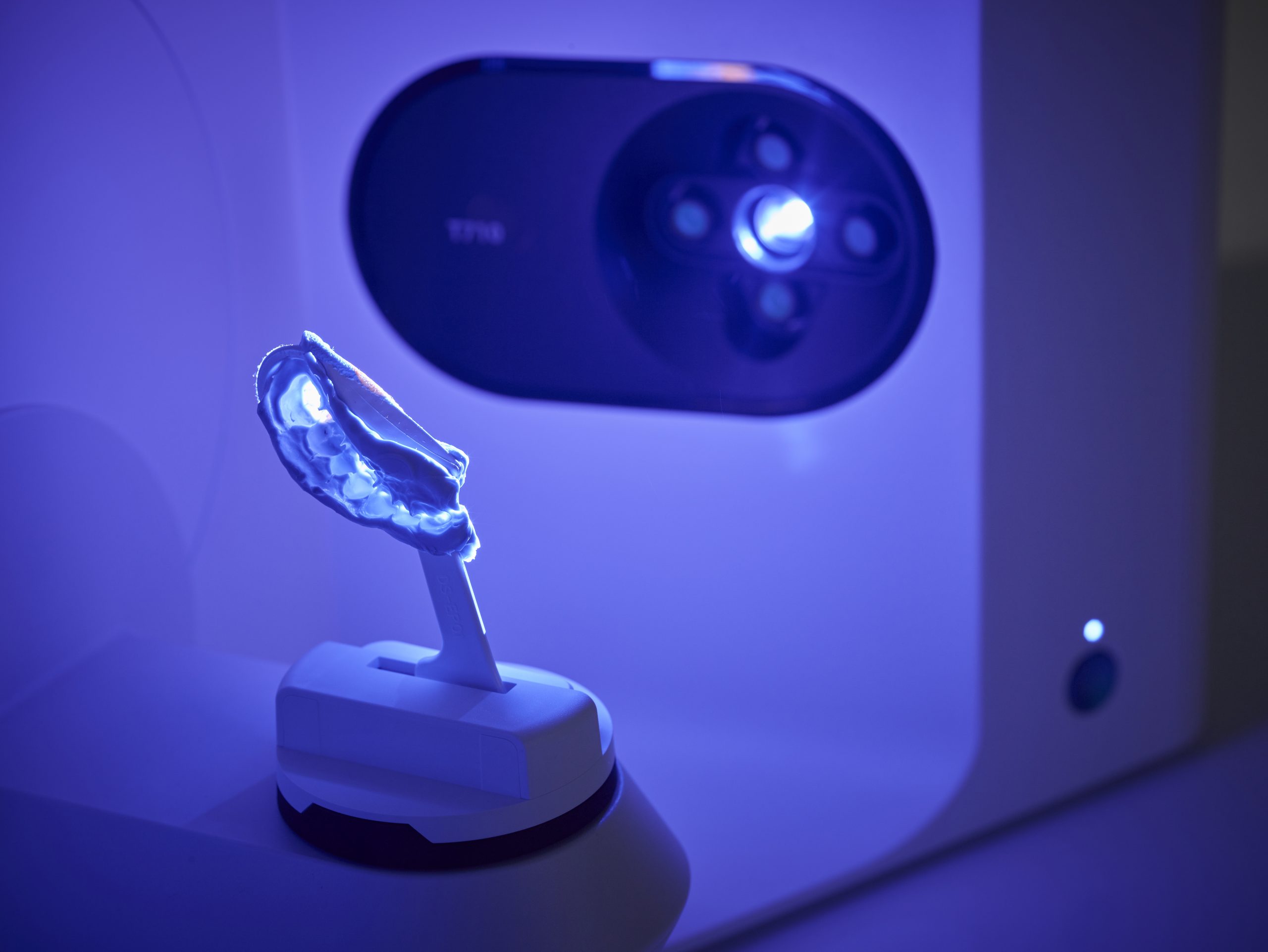

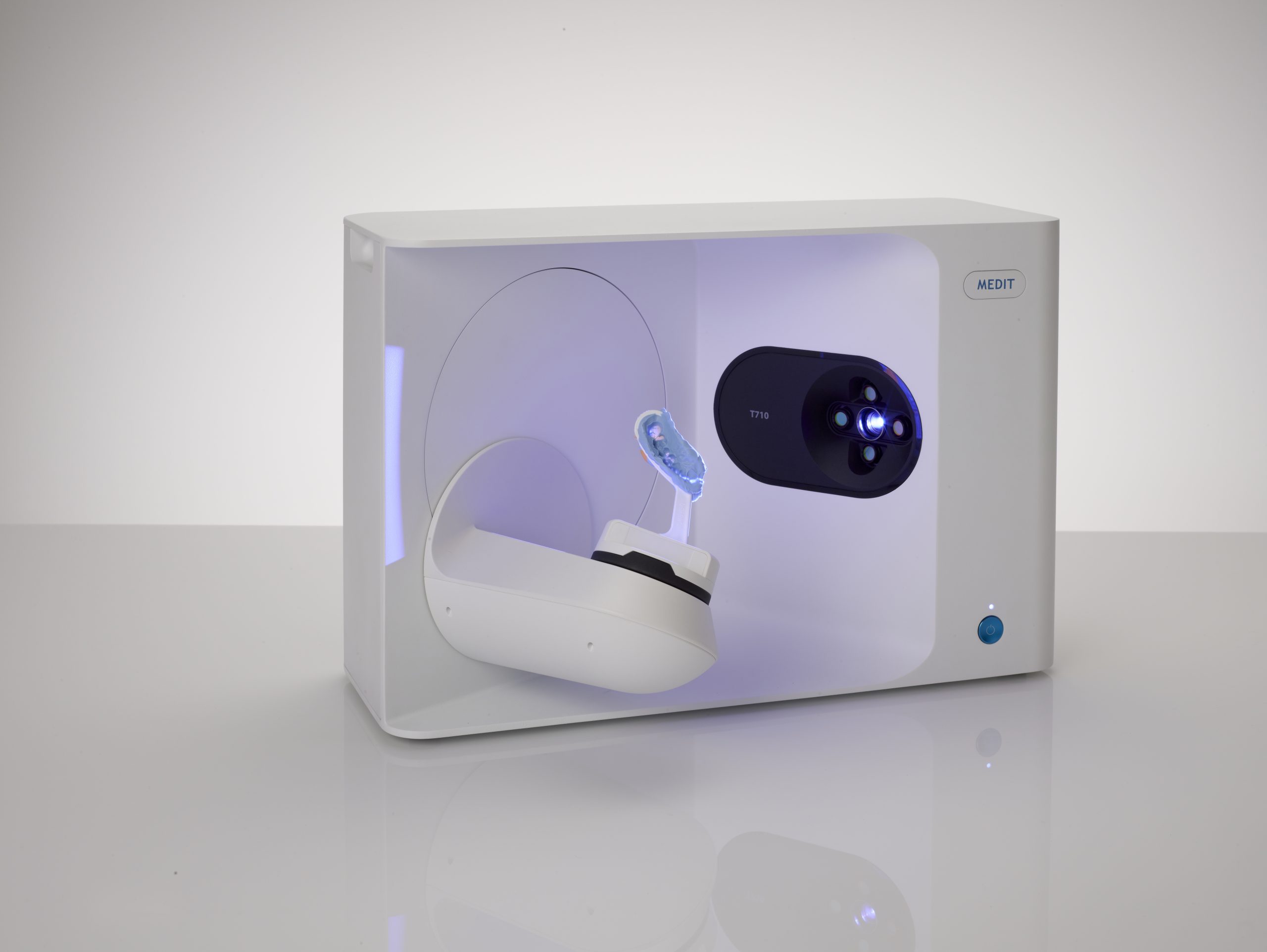

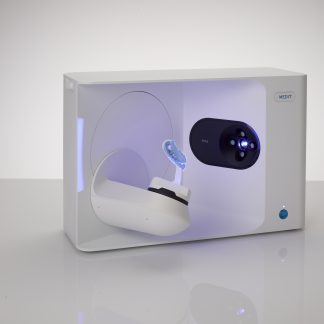

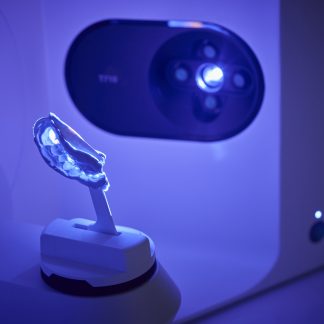

Scan impressions in about 45 seconds and capture full articulators and replica dentures, all on the T710.
Auto-elevation
The scanning platform adjusts its height automatically for each model, so setup is fast and consistent.
Medit Link workflow

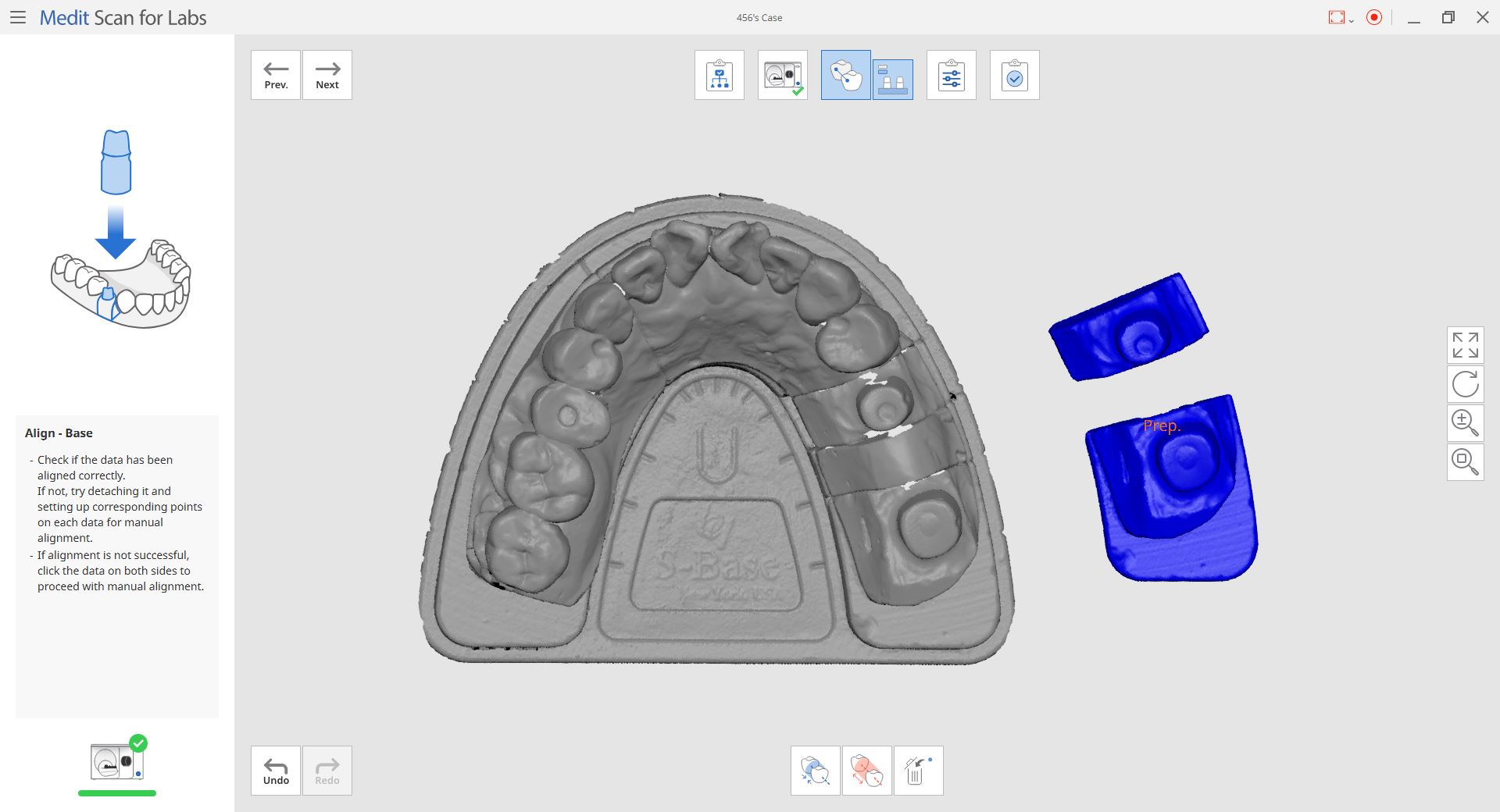

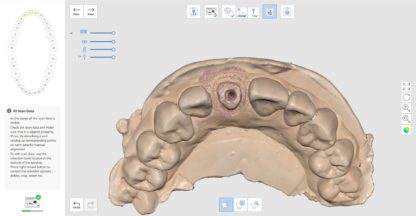

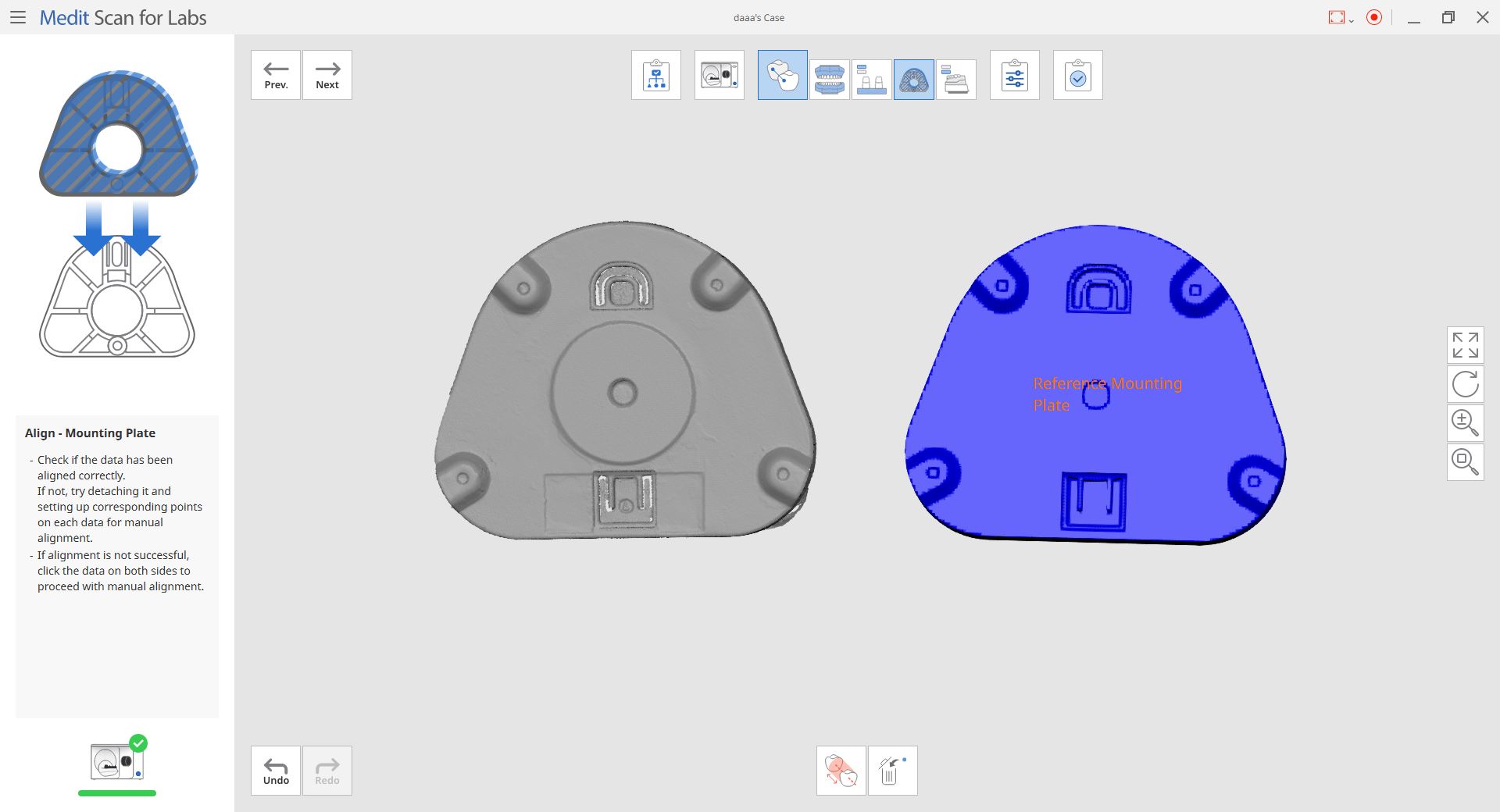

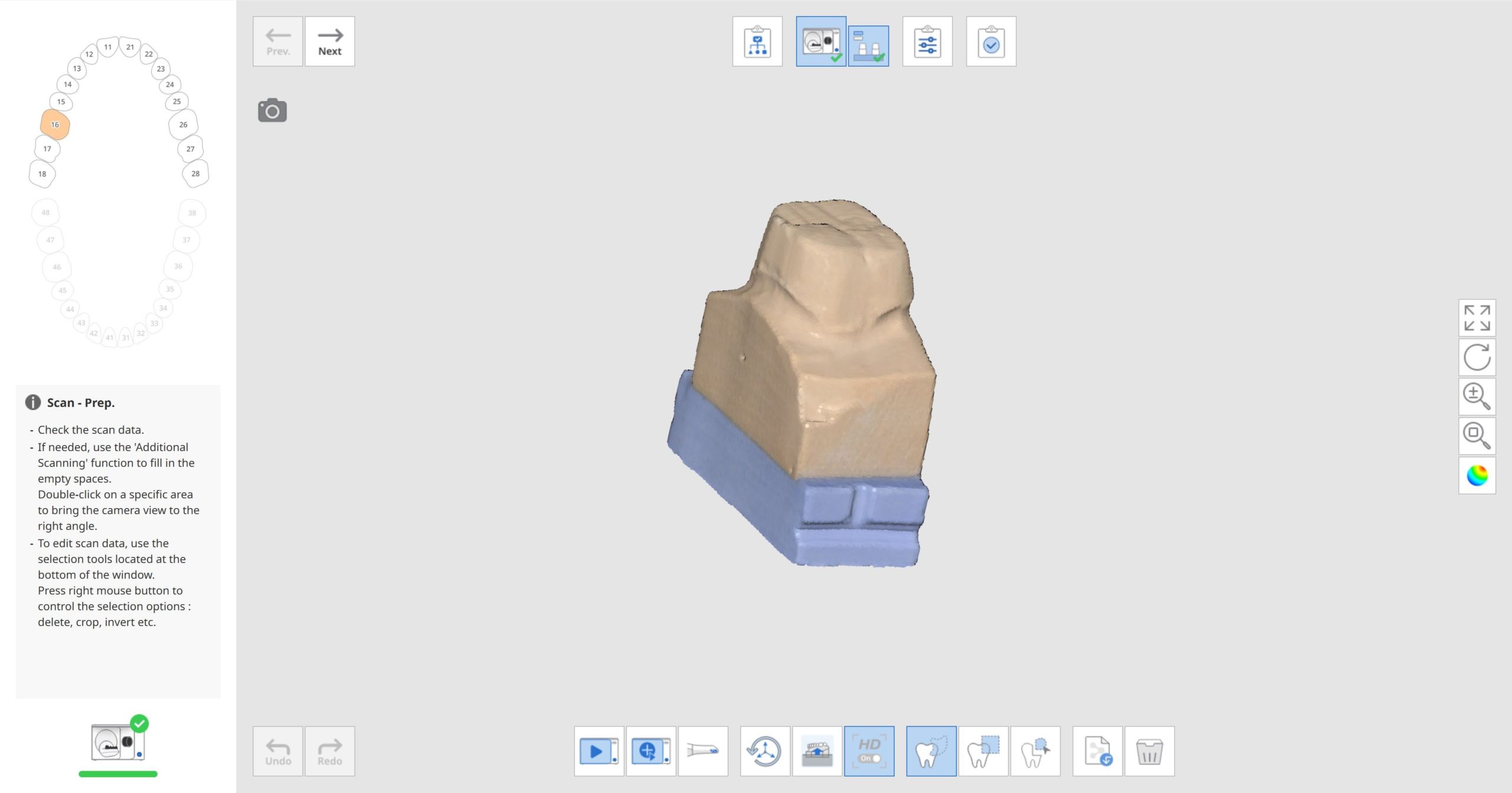

Customize scan sequences in Medit Scan for Labs and share cases through Medit Link, then design in exocad or any open CAD software.
What it scans

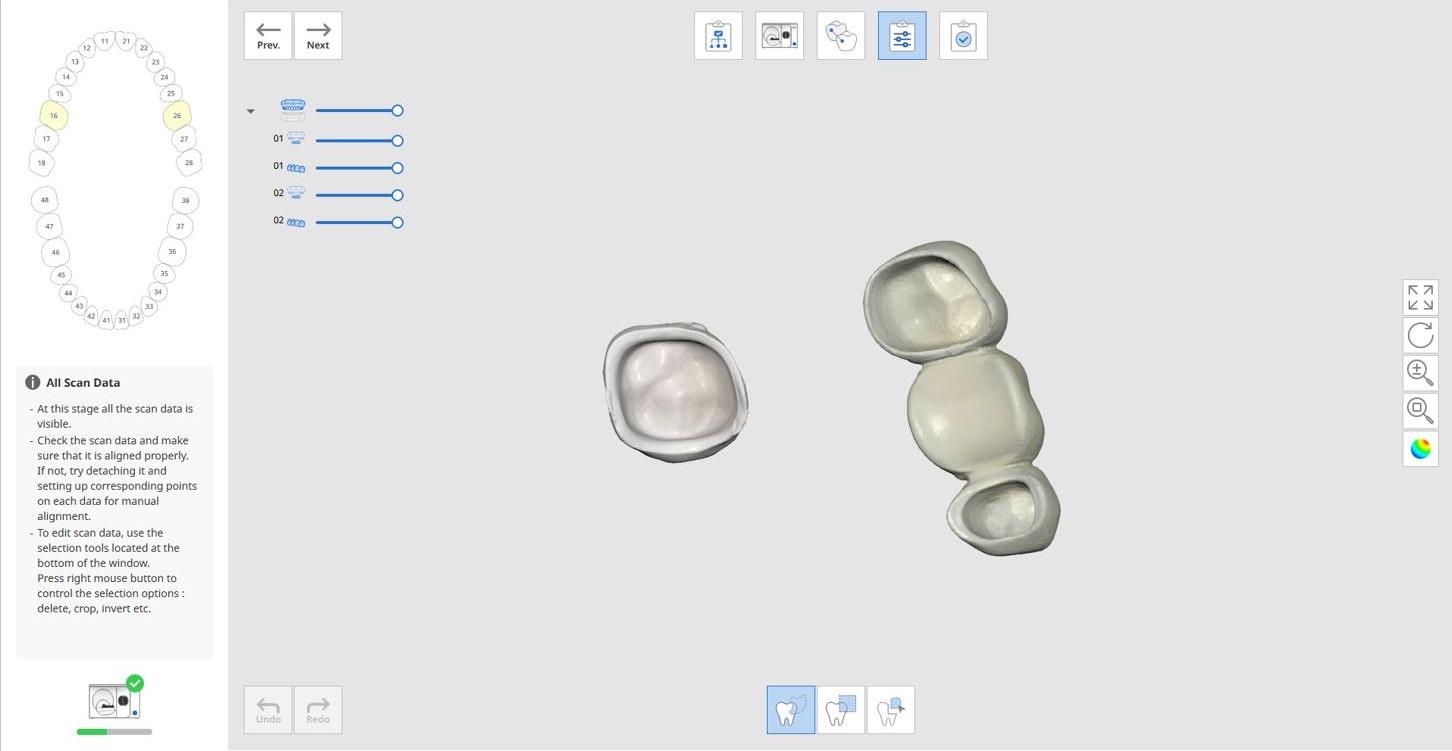

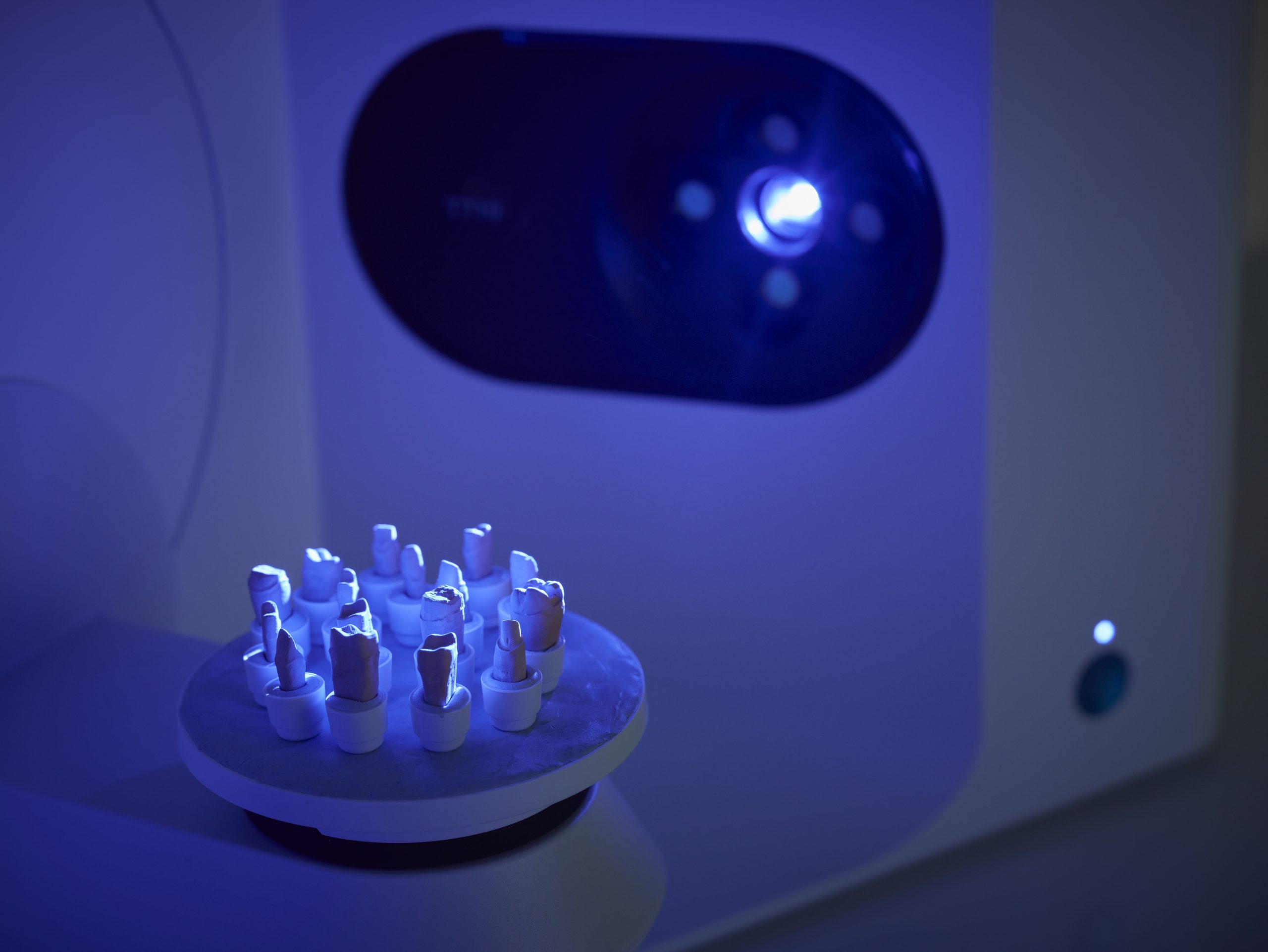

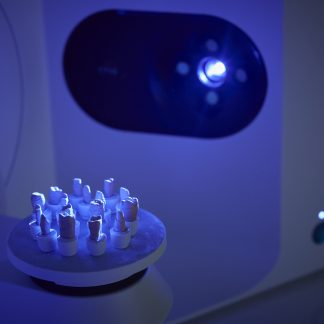

- Single dies and multi-die

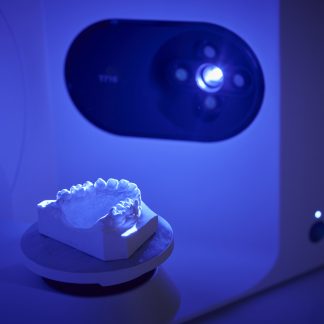

- Full arch and quadrant models
- Impressions

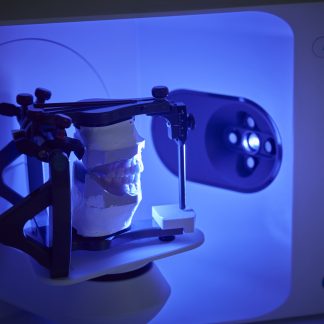

- Articulators

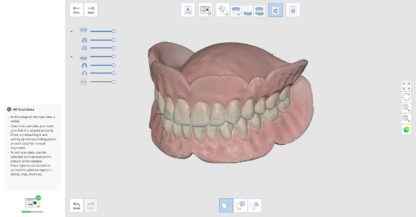

- Replica dentures

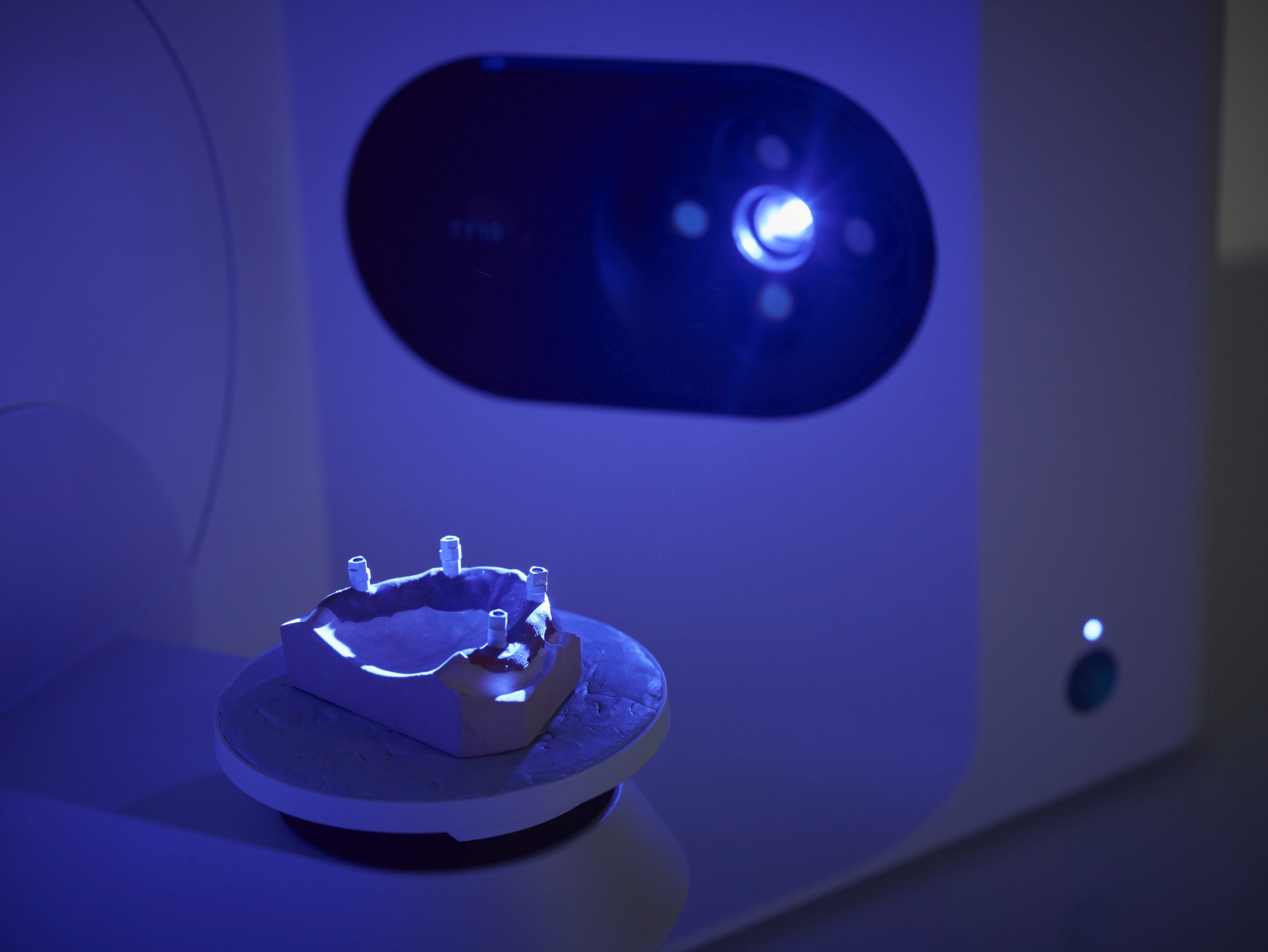

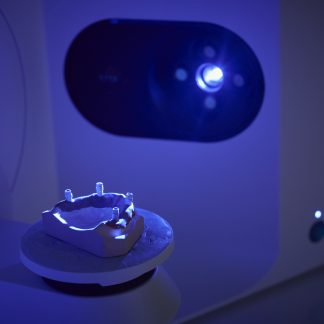

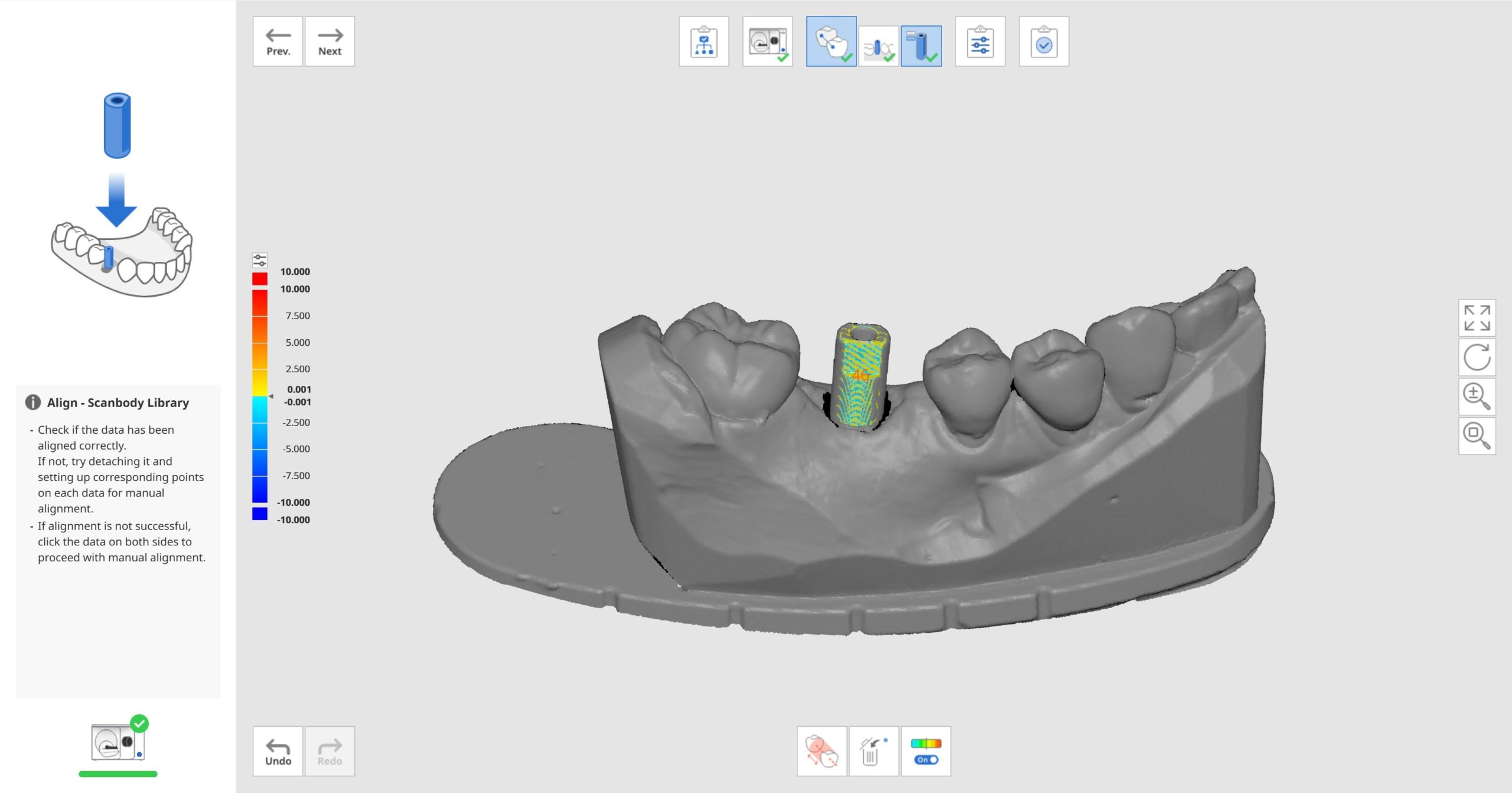

- Implant models with scan bodies

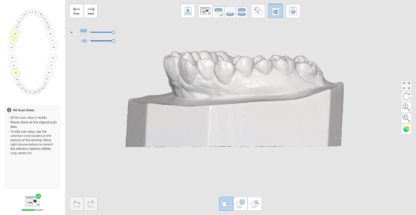

- Orthodontic models
Medit T710 Desktop Scanner Specifications
| Category | Medit T710 |
|---|---|
| Scanning technology | Phase-shifting optical triangulation |
| Cameras | 4 × 5.0 MP |
| Accuracy (ISO 12836) | 4 µm |
| Full-arch scan time | 8 seconds |
| Impression scan time | 45 seconds |

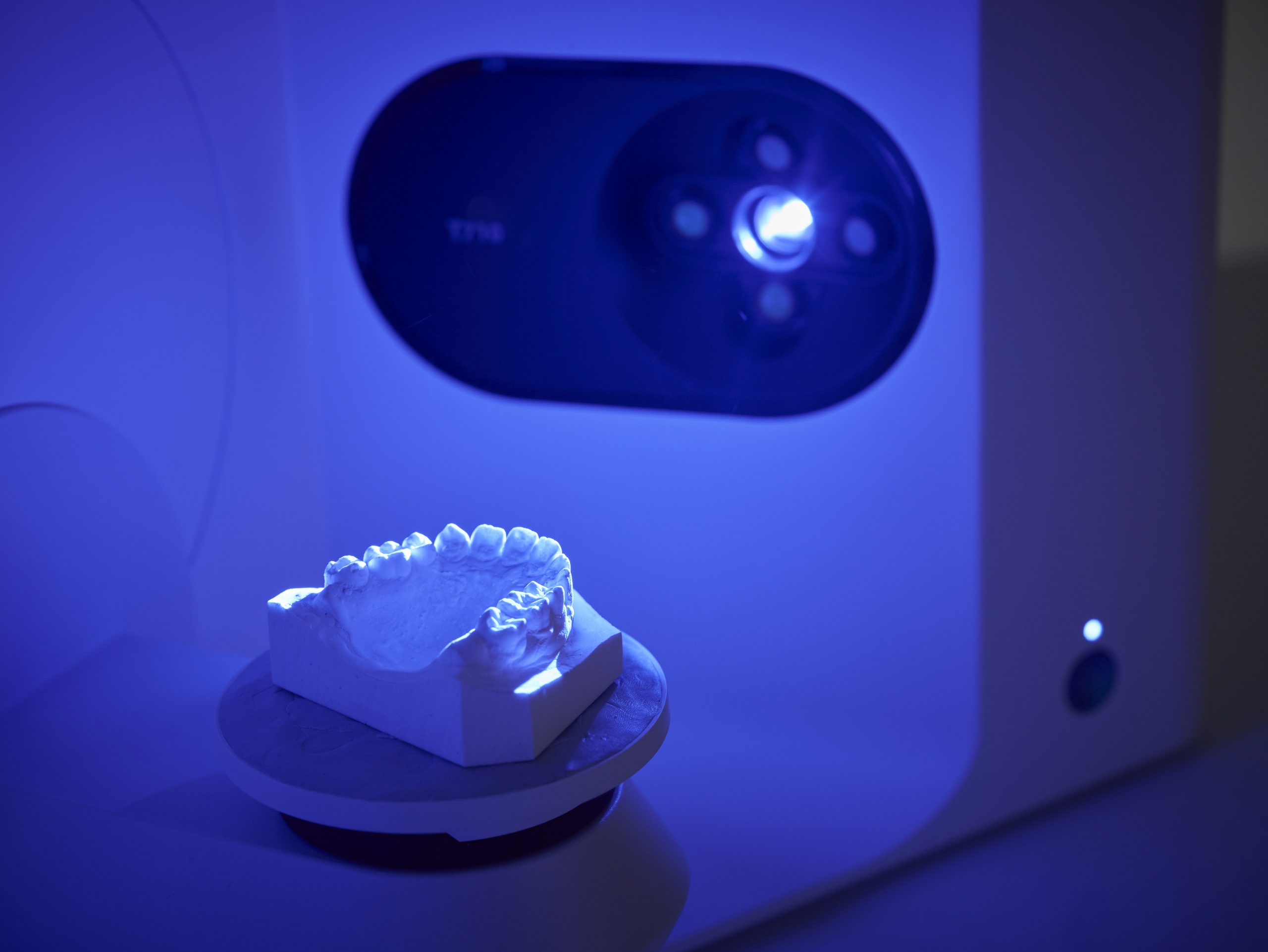

| Light source | Blue LED, 150 ANSI lumens |
| Scan area | 100 × 73 × 60 mm |

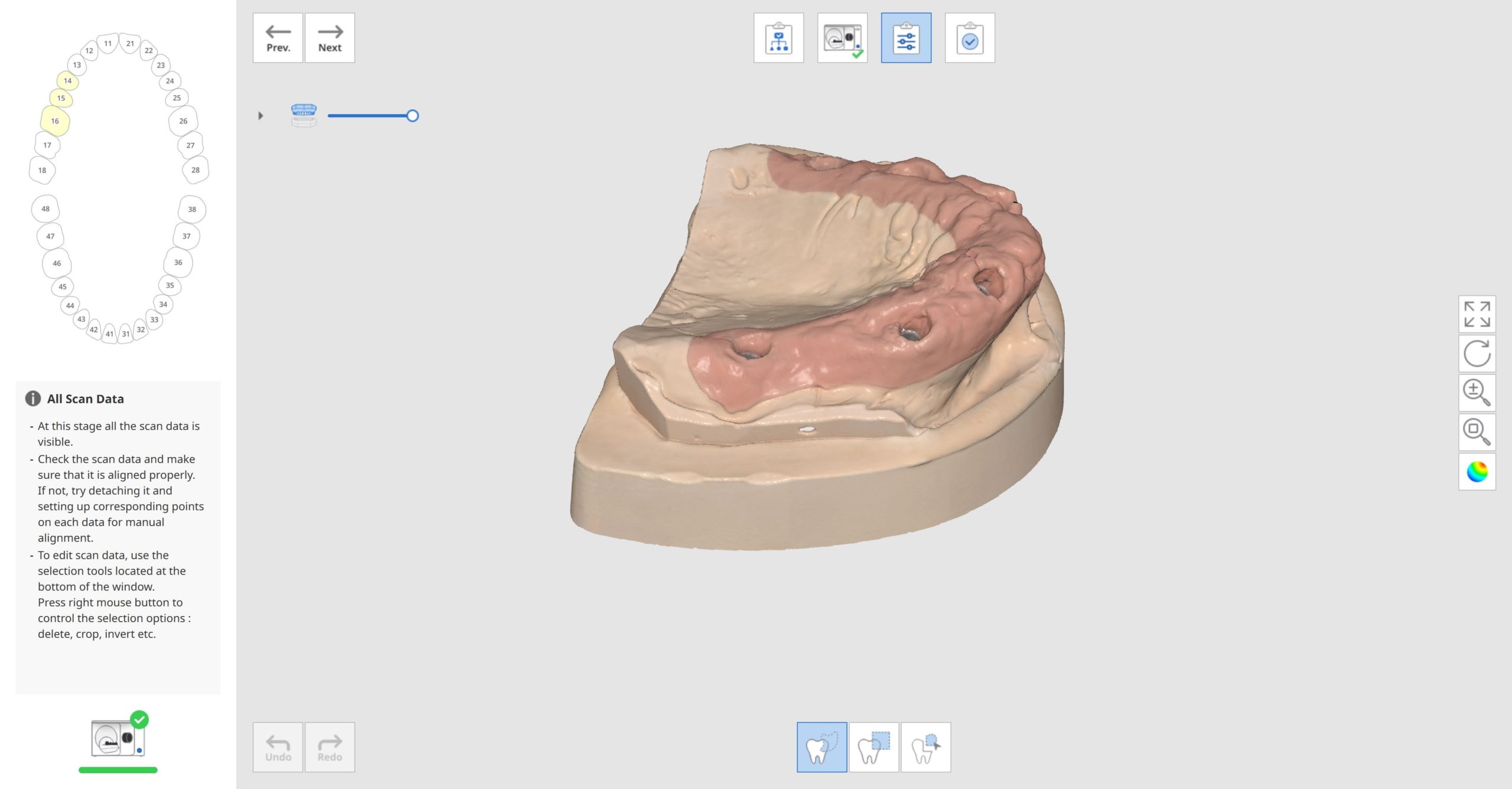

| Color texture | Yes |
| Auto-elevation | Yes |
| Interface | USB 3.0 (Type B) |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions | 505 × 271 × 340 mm |
| Weight | 15 kg |
| Software | Medit Scan for Labs and Medit Link (open STL export to exocad and other CAD software) |
What’s in the box
- Medit T710 scanner
- USB cable
- Power cable and external adapter
- LED protector
- Calibration panel
- Articulator plate
- Installation USB
- Blu Tack
- Flexible multi-die
- 16 single dies
- Spray supporters (2)
- Impression jig
- Screw jig
Why buy your Medit T710 from CAD-Ray?
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Help connecting your T-Series to Medit Link, exocad and the rest of your lab or chairside workflow.
- Optional articulator jigs and scanning accessories available from CAD-Ray, including the AM Jig for Bioart and Denar articulators.
Medit T710 FAQ
What software does the Medit T710 use?
The T710 runs Medit Scan for Labs and connects to Medit Link, Medit’s free cloud platform for case management and clinic-to-lab collaboration. Scans export as open files for exocad and other CAD software.
Is the T710 an open system?
Yes. You can export your scan data and design in the CAD software of your choice, with no subscription required to scan.
Which articulators can I scan on the T710?
Medit offers optional jigs for scanning on the articulator: the KAS jig for Artex, KaVo and SAM articulators, and the AM jig for Bioart and Denar articulators.
How does the T710 compare to the T510 and T310?
All three share the same housing, scan area and software. The T710 adds two more cameras (4 vs 2), the best accuracy (4 µm), the fastest full-arch time (8 s) and dedicated impression scanning.
