Medit T-Series · Lab scanner

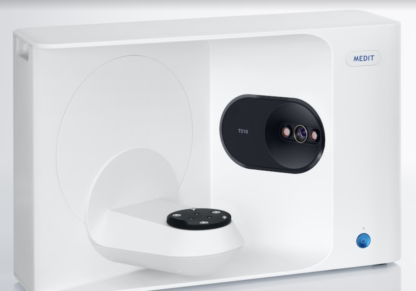

Medit T510 Desktop Scanner
Dual 5 MP cameras, 7 µm accuracy and a 12-second full arch.
The Medit T510 brings the T-Series’ speed and open workflow to labs and practices that want high accuracy at a lower price than the T710. Dual 5.0 MP cameras deliver 7 µm accuracy and a 12-second full arch.
Key features
Dual 5 MP cameras
Two 5.0 MP cameras capture fine margins and detail at 7 µm accuracy.
Fast full arches
A full-arch model scans in about 12 seconds, so models and dies move through the lab quickly.
Auto-elevation
The scanning platform adjusts its height automatically for each model.
Medit Link workflow
Customize scan sequences in Medit Scan for Labs, share cases in Medit Link, and design in exocad or any open CAD software.
What it scans
- Single dies and multi-die
- Full arch and quadrant models
- Implant models with scan bodies
- Models on the articulator plate
Medit T510 Desktop Scanner Specifications
| Category | Medit T510 |
|---|---|
| Scanning technology | Phase-shifting optical triangulation |
| Cameras | 2 × 5.0 MP |
| Accuracy (ISO 12836) | 7 µm |
| Full-arch scan time | 12 seconds |
| Impression scan time | Not supported (choose the T710) |
| Light source | Blue LED, 150 ANSI lumens |
| Scan area | 100 × 73 × 60 mm |
| Color texture | Yes |
| Auto-elevation | Yes |
| Interface | USB 3.0 (Type B) |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions | 505 × 271 × 340 mm |
| Weight | 15 kg |
| Software | Medit Scan for Labs and Medit Link (open STL export to exocad and other CAD software) |
What’s in the box
- Medit T510 scanner
- USB cable
- Power cable and external adapter
- LED protector
- Calibration panel
- Articulator plate
- Installation USB
- Blu Tack
- Flexible multi-die
- 16 single dies
- Spray supporters (2)
Optional: KAS jig, AM jig and screw jig.
Why buy your Medit T510 from CAD-Ray?
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Help connecting your T-Series to Medit Link, exocad and the rest of your lab or chairside workflow.
- Optional articulator jigs and scanning accessories available from CAD-Ray, including the AM Jig for Bioart and Denar articulators.
Medit T510 FAQ
What software does the Medit T510 use?
The T510 runs Medit Scan for Labs and connects to Medit Link, Medit’s free cloud platform for case management and clinic-to-lab collaboration. Scans export as open files for exocad and other CAD software.
Is the T510 an open system?
Yes. You can export your scan data and design in the CAD software of your choice, with no subscription required to scan.
Which articulators can I scan on the T510?
Medit offers optional jigs for scanning on the articulator: the KAS jig for Artex, KaVo and SAM articulators, and the AM jig for Bioart and Denar articulators.
Can the T510 scan impressions?
Dedicated impression scanning is a T710 feature. If you scan a lot of impressions, the T710 is the better fit.
