Medit T-Series · Entry lab scanner
Medit T310 Desktop Scanner
The most affordable way into the Medit T-Series.
The Medit T310 gives you the same housing, scan area and Medit software as the rest of the T-Series at the lowest price. Dual 5.0 MP cameras deliver 9 µm accuracy and an 18-second full arch.
Key features
Entry price, full T-Series platform
Same housing, scan area and software as the T510 and T710, so you can grow your workflow without relearning anything.
Dual 5 MP cameras
Two 5.0 MP cameras with 9 µm accuracy for dies, models and implant cases.
Auto-elevation
The scanning platform adjusts its height automatically for each model.
Medit Link workflow
Share cases through Medit Link and design in exocad or any open CAD software.
What it scans
- Single dies and multi-die
- Full arch and quadrant models
- Implant models with scan bodies
Medit T310 Desktop Scanner Specifications
| Category | Medit T310 |
|---|---|
| Scanning technology | Phase-shifting optical triangulation |
| Cameras | 2 × 5.0 MP |
| Accuracy (ISO 12836) | 9 µm |
| Full-arch scan time | 18 seconds |
| Impression scan time | Not supported (choose the T710) |
| Light source | Blue LED, 150 ANSI lumens |
| Scan area | 100 × 73 × 60 mm |
| Color texture | Yes |
| Auto-elevation | Yes |
| Interface | USB 3.0 (Type B) |
| Power | AC 100–240 V, 50/60 Hz |
| Dimensions | 505 × 271 × 340 mm |
| Weight | 15 kg |
| Software | Medit Scan for Labs and Medit Link (open STL export to exocad and other CAD software) |
What’s in the box
- Medit T310 scanner
- USB cable
- Power cable and external adapter
- LED protector
- Calibration panel
- Installation USB
- Blu Tack
- Flexible multi-die
- 16 single dies
Optional: articulator plate, spray supporters, KAS jig, AM jig and screw jig.
Why buy your Medit T310 from CAD-Ray?
- Training and support from CAD-Ray, one of the largest independent CAD/CAM dealers in the U.S.
- Help connecting your T-Series to Medit Link, exocad and the rest of your lab or chairside workflow.
- Optional articulator jigs and scanning accessories available from CAD-Ray, including the AM Jig for Bioart and Denar articulators.
Medit T310 FAQ
What software does the Medit T310 use?
The T310 runs Medit Scan for Labs and connects to Medit Link, Medit’s free cloud platform for case management and clinic-to-lab collaboration. Scans export as open files for exocad and other CAD software.
Is the T310 an open system?
Yes. You can export your scan data and design in the CAD software of your choice, with no subscription required to scan.
Which articulators can I scan on the T310?

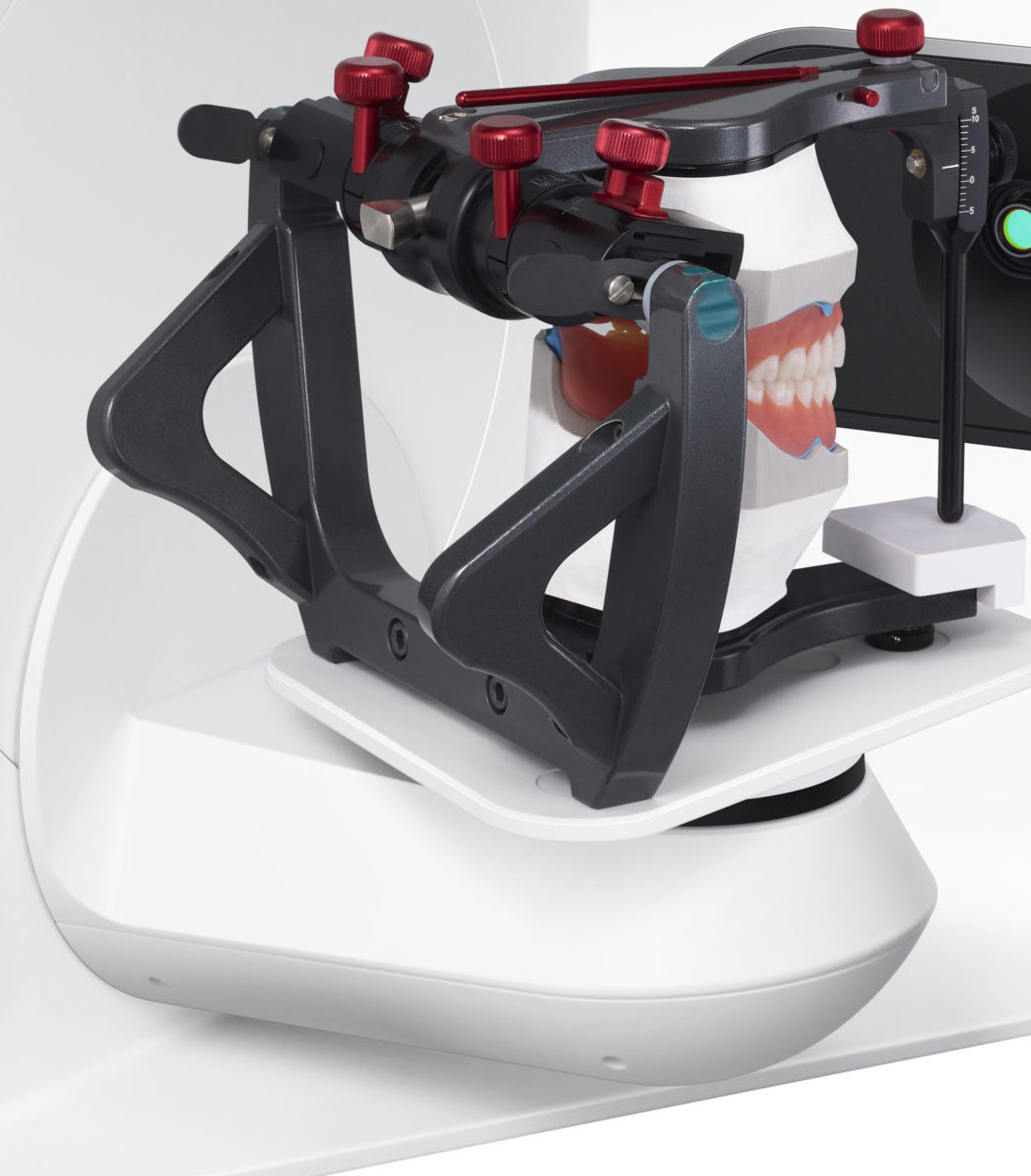

Medit offers optional jigs for scanning on the articulator: the KAS jig for Artex, KaVo and SAM articulators, and the AM jig for Bioart and Denar articulators.
Should I choose the T310 or T510?
The T510 is faster (12 s vs 18 s full arch) and more accurate (7 µm vs 9 µm), and includes the articulator plate. The T310 is the budget pick if speed matters less.
